3811-60 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

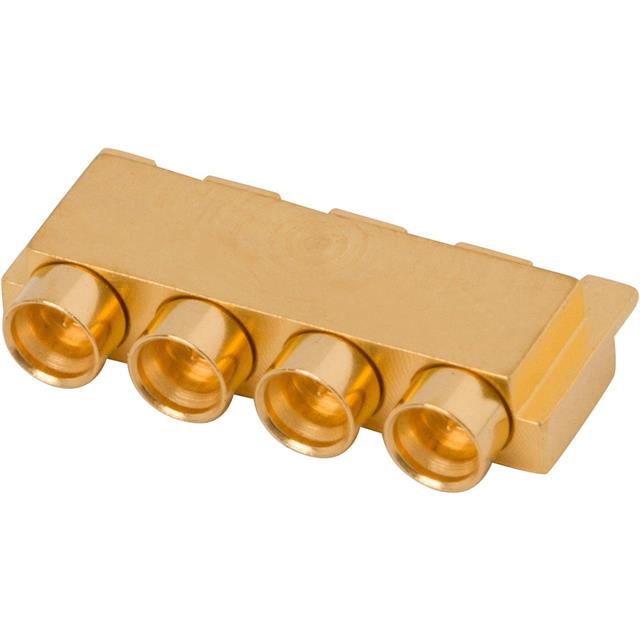

SMPS MALE EDGE LAUNCH CONNECTOR,
| Part | Dielectric Material | Body Material | Mating Cycles | Center Contact Plating | Operating Temperature (Min) | Operating Temperature (Max) | Body Finish | Mounting Type | Shield Termination | Contact Termination | Center Contact Material | Fastening Type | Frequency - Max | Number of Ports | Impedance | Connector Style | Features | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 cycles | Gold | -65 °C | 165 °C | Gold | Board Edge Cutout Surface Mount | Solder | Solder | Beryllium Copper | Snap-On | 65 GHz | 2 | 50 Ohm | SMPS | Smooth Bore | Male Pin Plug | Gold |
 McGill Microwave Systems | Stainless Steel | 100 cycles | Gold | -55 °C | 125 °C | Gold | Surface Mount | Solder | Solder | Nickel-Cobalt | Snap-On | 1 | 50 Ohm | SMPS | Full Detent Hermetically Sealed | Male Pin Plug | Gold | ||
McGill Microwave Systems | Stainless Steel | 500 cycles | Gold | -55 °C | 125 °C | Gold | Surface Mount | Solder | Solder | Nickel-Cobalt | Snap-On | 1 | 50 Ohm | SMPS | Hermetically Sealed Smooth Bore | Male Pin Plug | Gold | ||
McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Stainless Steel | 100 cycles | Gold | -65 °C | 165 °C | Gold | Board Edge Cutout Surface Mount | Solder | Solder | Beryllium Copper | Snap-On | 65 GHz | 2 | 50 Ohm | SMPS | Full Detent | Male Pin Plug | Gold |
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Stainless Steel | 100 cycles | Gold | Gold | Board Edge End Launch | Solder | Solder | Beryllium Copper | Snap-On | 8 | 50 Ohm | SMPS | Full Detent | Male Pin Plug | Gold | |||
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 cycles | Gold | -65 °C | 165 °C | Gold | Board Edge Cutout Surface Mount | Solder | Solder | Beryllium Copper | Snap-On | 65 GHz | 4 | 50 Ohm | SMPS | Smooth Bore | Male Pin Plug | Gold |
