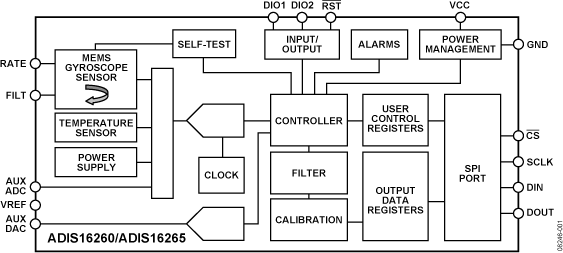

ADIS16260 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
GYROSCOPES WIDE BANDWIDTH PROGRAMMABLE GYROSCOPE
| Part | Range Options | Current - Supply | Output Type | Package / Case | Sensitivity (LSB/(°/s)) (Max) | Sensitivity (LSB/(°/s)) (Min) | Features | Axis | Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Bandwidth (Max) | Bandwidth (Min) | Supplied Contents | Utilized IC / Part | Contents | Embedded | Sensing Range (Option 1) Minimum | Sensing Range (Option 1) Maximum | Sensing Range (Option 2) Maximum | Sensing Range (Option 3) Minimum | Sensing Range (Option 3) Maximum | Sensing Range (Option 2) Minimum | Sensitivity Tolerance | Sensor Type | Axis Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | ±80 160 320 | 41 mA | SPI | 20-BFLGA | 54 LSB/(°/s) | 13 LSB/(°/s) | Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor | Z (Yaw) | Digital | -40 °C | 105 °C | 5.25 V | 4.75 V | 330 Hz | 50 Hz | |||||||||||||
 Analog Devices Inc./Maxim Integrated | Board(s) | ADIS16260 | Board | No | -80 °/sec | 80 °/sec | 160 °/sec | -320 °/sec | 320 °/sec | -160 °/sec | 0.2 % | 1 Axis Gyroscope | 1 Axis |
