CD-12BMMA Series

Catalog

X-LOK, MIDDLE SIZE, 5A, 12 PINS,

Part	Shell Material	Shielding	Insert Material	Position Types	Number of Positions	Shell Size - Insert	Orientation	Current Rating	Features	Color	Ingress Protection IP Rating	Ingress Protection Description	Cable Opening (Max)	Cable Opening (Min)	Mounting Type	Connector Type	Contact Material	Contact Finish - Mating	Termination	Voltage Rating	Voltage Rating (Type)	Primary Material	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Fastening Type	Housing Color	Type	Contact Shape	Note	Contact Type	Backshell Material, Plating
McGill Microwave Systems CD-12BMMA-QL8MP0	Glass Filled Nylon Polyamide (PA)	Unshielded	Glass Filled Nylon PA Polyamide	Data	12	C	Keyed	5 A	Backshell	Black	IP68	Dust Tight Waterproof	0.394 in	0.315 in	Free Hanging (In-Line)	Male Pins Plug	Copper Alloy	Gold	Screw	300 VAC/DC	DC	Plastic	-40 °C	105 °C	UL94 V-0	Push-Pull
McGill Microwave Systems CD-12BMMA-QL8AN0	Thermoplastic	Unshielded	Thermoplastic		12	C	Keyed		Backshell		IP68	Dust Tight Waterproof			Free Hanging (In-Line)	Plug Housing						Plastic	-40 °C	105 °C		Push-Pull	Black	For Male Pins	Circular	Contacts Not Included	Crimp

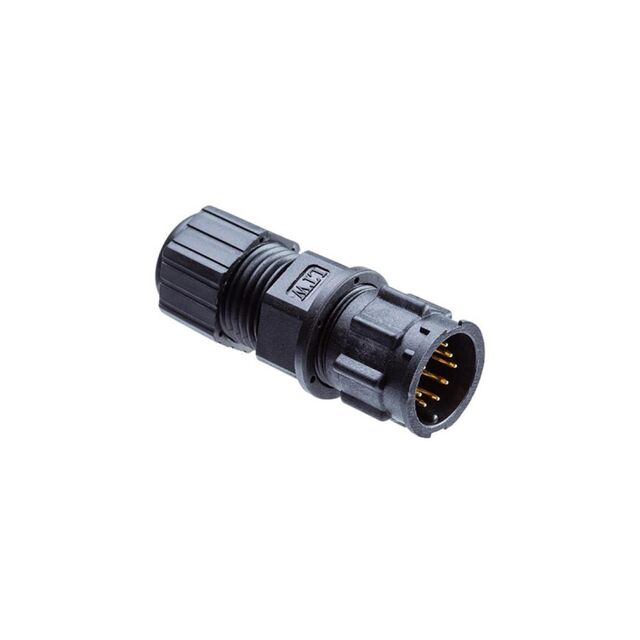

McGill Microwave Systems CD-12BMMA-LL7001	Thermoplastic	Unshielded	Thermoplastic		12	C	Keyed		Backshell Coupling Nut	Black	IP67	Dust Tight Waterproof			Free Hanging (In-Line)	Male Pins Receptacle	Copper Alloy	Gold	Solder Cup			Plastic				Bayonet Lock						Thermoplastic
