34856 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

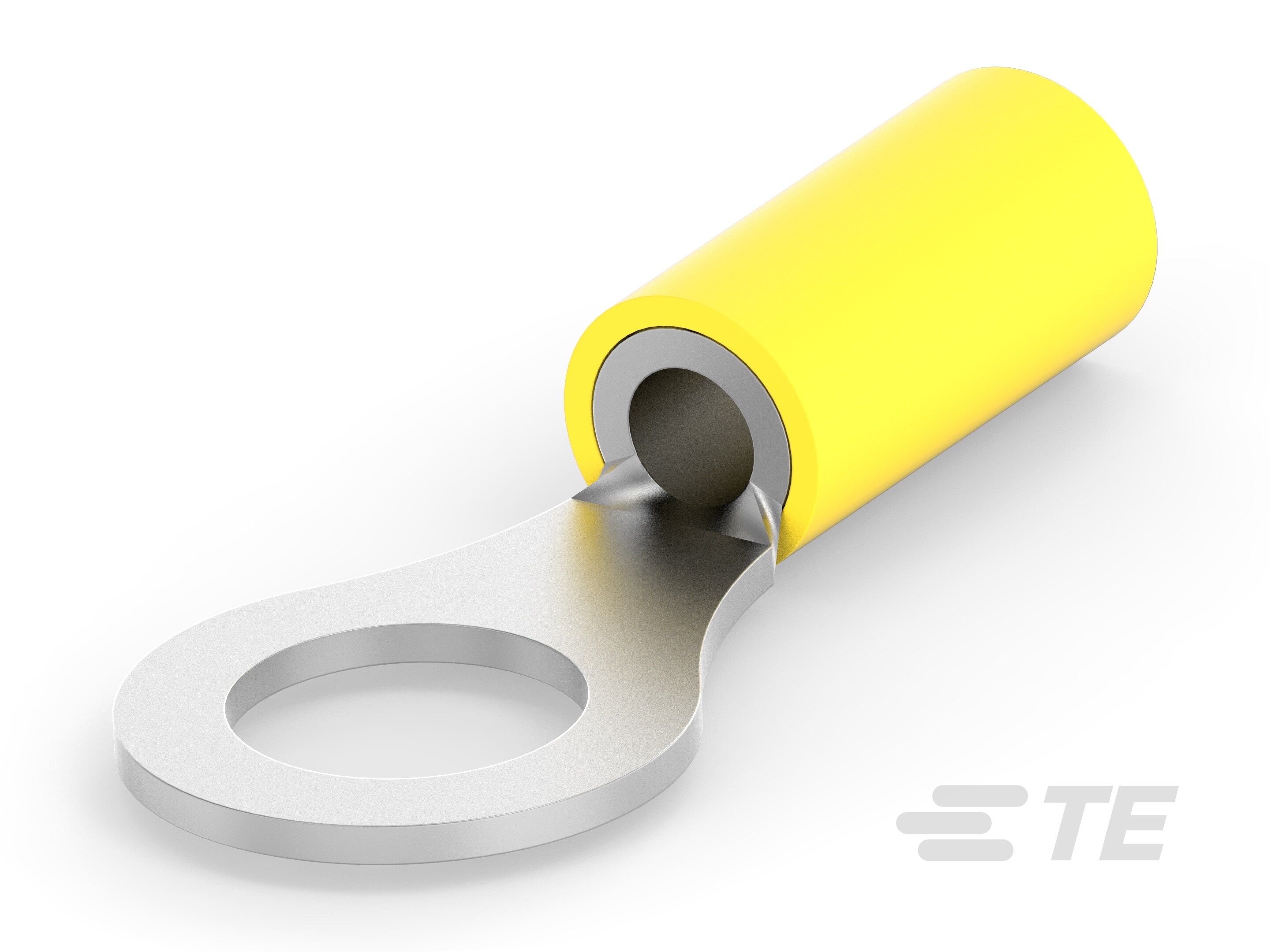

CONN RING CIRC 10-12AWG #5/16
| Part | Thickness | Contact Finish | Contact Material | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Terminal Type | Stud/Tab Size | Stud/Tab Size (Type) | Stud/Tab Size | Insulation | Termination | Width - Outer Edges | Length - Overall | Features | Mounting Type | Color | Material - Insulation | Insulation Diameter (Min) | Insulation Diameter (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.04 in | Tin | Copper | 12 AWG | 10 AWG | Circular | 0.3125 in | Stud | 16 Stud 5 Stud | Insulated | Crimp | 0.531 in | 1.327 in | Serrated Termination | Free Hanging (In-Line) | Yellow | Poly-Vinyl Chloride PVC | 0.15 in | 0.25 in |
