M83517 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

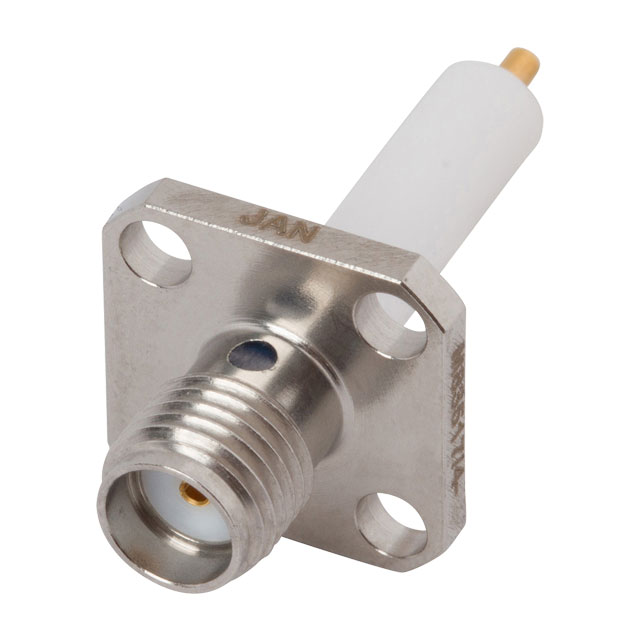

CONN SMA JACK STR 50OHM SOLDER
| Part | Mating Cycles | Center Contact Plating | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Body Material | Frequency - Max | Center Contact Material | Impedance | Connector Type | Contact Termination | Connector Style | Mounting Feature | Mounting Type | Features | Housing Color | Fastening Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 500 cycles | Gold | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | 18 GHz | Beryllium Copper | 50 Ohm | Female Socket Jack | Solder | SMA | Flange | Panel Mount | Extended Insulation | Silver | Threaded | Solder |
