FLS714N Series

Catalog

3 POSITION JAM NUT RECEPTACLE, P

Part	Contact Size	Housing Color	Fastening Type	Ingress Protection IP Rating	Ingress Protection Description	Type	Features	Contact Shape	Insert Material	Shell Material	Material Flammability Rating	Mounting Feature	Connector Type	Note	Number of Positions	Orientation	Primary Material	Shell Size - Insert Width	Shell Size - Insert Length	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Mounting Type

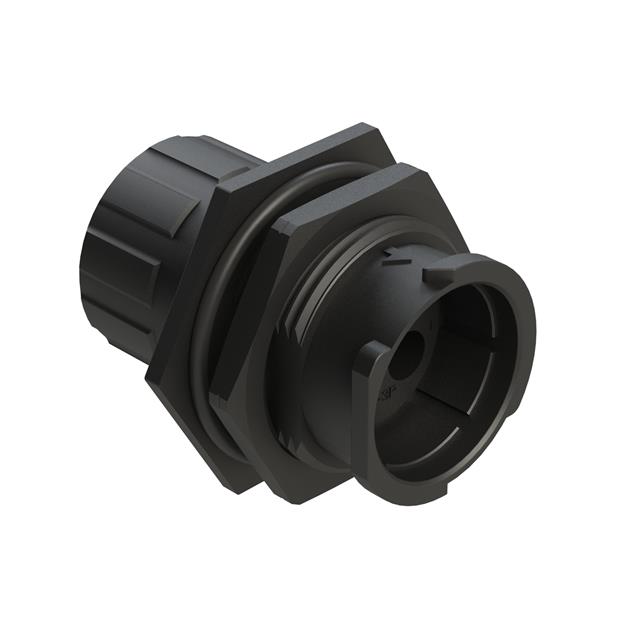

McGill Microwave Systems FLS714N3PHEC03	8	Black	Bayonet Lock	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Cap (Cover)	Circular	Thermoplastic	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	Receptacle Housing	Contacts Not Included	3	N (Normal)	Plastic	3 mm	14 mm	Unshielded	125 °C	-40 °C	Crimp	Panel Mount

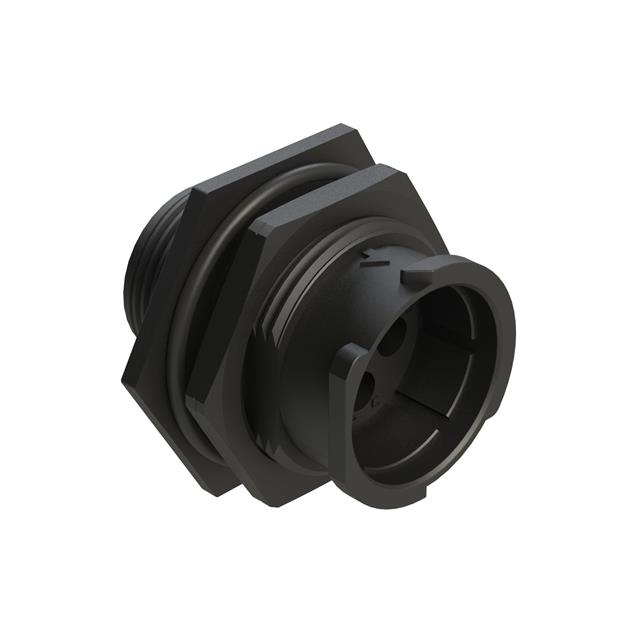

McGill Microwave Systems FLS714N4P03	12	Black	Bayonet Lock	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Cap (Cover)	Circular	Thermoplastic	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	Receptacle Housing	Contacts Not Included	4	N (Normal)	Plastic	4 mm	14 mm	Unshielded	125 °C	-40 °C	Crimp	Panel Mount

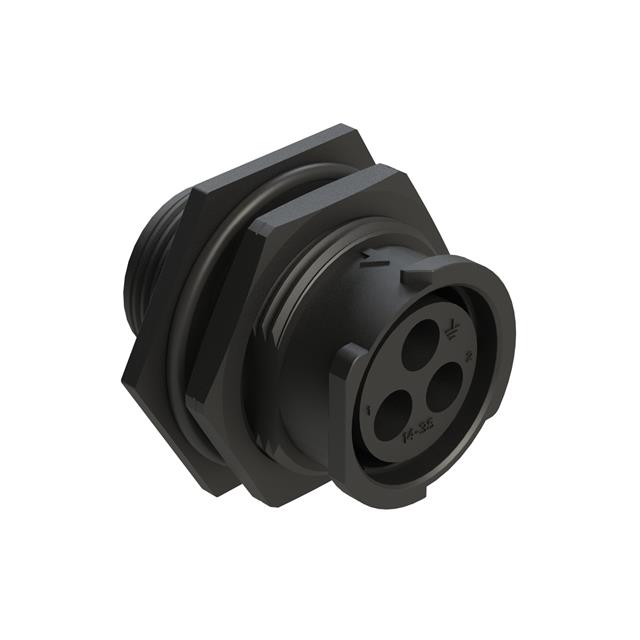

McGill Microwave Systems FLS714N3S03	8	Black	Bayonet Lock	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets		Circular	Thermoplastic	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	Receptacle Housing	Contacts Not Included	3	N (Normal)	Plastic	3 mm	14 mm	Unshielded	125 °C	-40 °C	Crimp	Panel Mount
McGill Microwave Systems FLS714N12S03	16 S	Black	Bayonet Lock	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets		Circular	Thermoplastic	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	Receptacle Housing	Contacts Not Included	12	N (Normal)	Plastic	12 mm	14 mm	Unshielded	125 °C	-40 °C	Crimp	Panel Mount
McGill Microwave Systems FLS714N7S03	16 S	Black	Bayonet Lock	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets		Circular	Thermoplastic	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	Receptacle Housing	Contacts Not Included	7	N (Normal)	Plastic	7 mm	14 mm	Unshielded	125 °C	-40 °C	Crimp	Panel Mount
McGill Microwave Systems FLS714N3P03	8	Black	Bayonet Lock	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Cap (Cover)	Circular	Thermoplastic	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	Receptacle Housing	Contacts Not Included	3	N (Normal)	Plastic	3 mm	14 mm	Unshielded	125 °C	-40 °C	Crimp	Panel Mount
McGill Microwave Systems FLS714N2P03	12 16	Black	Bayonet Lock	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Cap (Cover)	Circular	Thermoplastic	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	Receptacle Housing	Contacts Not Included	4	N (Normal)	Plastic	4 mm	14 mm	Unshielded	125 °C	-40 °C	Crimp	Panel Mount
