3013W3P Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

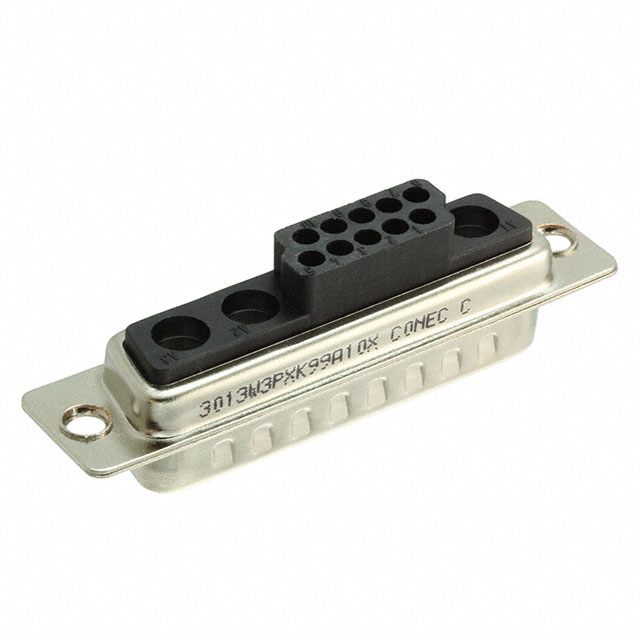

D-SUB MIXED CONTACT CONNECTORS 13W3 M SC NO POWER 4-40 INS.
| Part | Connector Style | Features | Material Flammability Rating | Mounting Type | Number of Positions (Special) | Position Types | Number of Positions (Standard) | Number of Positions (Total) | Shell Size | Connector Layout | Part Code | Finish | Shell Material | Flange Feature | Termination | Current Rating | Connector Type | Number of Rows | Contact Finish Thickness | Contact Type | Ingress Protection | Contact Finish | Contact Material | Wire Gauge | Voltage Rating | Contact Form | Color | Dielectric Material | Operating Temperature (Max) | Operating Temperature (Min) | Mating Cycles | Shell Finish Thickness | Number of Positions (Power) | Number of Positions (Normal) | Contact Finish Thickness (string set options) | Contact Finish Thickness | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Combo D-Sub | Grounding Indents | UL94 V-0 | Free Hanging (In-Line) | 3 | Coax Power | 10 | 13 | 3 | B DB | 13C3 13W3 | Tin Plated | Steel | Cable Side (4-40) | Solder Cup | 7.5 A | Male Pins Plug | 2 | 8 µin | Coax or Power Signal | IP20 | Gold | Copper Alloy | 20 AWG | 250 V | Machined | Green | Glass Filled Polybutylene Terephthalate (PBT) | 125 °C | -55 °C | |||||||
McGill Microwave Systems | Male Pins Plug | ||||||||||||||||||||||||||||||||||||
McGill Microwave Systems | Combo D-Sub | Grounding Indents | Through Hole | 13 | 3 | B DB | 13C3 13W3 | Tin-Nickel Plated | Steel | Housing Shell (4-40) | Plug for Male Contacts | 2 | Power Signal | IP20 | Black | Glass Filled Polybutylene Terephthalate (PBT) | 500 cycles | 315 µin | 3 | 10 | |||||||||||||||||
McGill Microwave Systems | Combo D-Sub | Grounding Indents | UL94 V-0 | Free Hanging (In-Line) | 3 | Coax Power | 10 | 13 | 3 | B DB | 13C3 13W3 | Tin Plated | Steel | Cable Side (M3) | Solder Cup | 7.5 A | Male Pins Plug | 2 | 0 | Coax or Power Signal | IP20 | Gold | Copper Alloy | 250 V | Machined | Green | Glass Filled Polybutylene Terephthalate (PBT) | 125 °C | -55 °C | Flash | Flash | ||||||
McGill Microwave Systems | Combo D-Sub | Grounding Indents | UL94 V-0 | Through Hole | 3 | Coax Power | 10 | 13 | 3 | B DB | 13C3 13W3 | Tin Plated | Steel | Housing Shell (Unthreaded) | Solder | 7.5 A | Male Pins Plug | 2 | Coax or Power Signal | IP20 | Gold | Copper Alloy | 250 V | Machined | Green | Glass Filled Polybutylene Terephthalate (PBT) | 125 °C | -55 °C | |||||||||
McGill Microwave Systems | Male Pins Plug | ||||||||||||||||||||||||||||||||||||
 McGill Microwave Systems | Combo D-Sub | Grounding Indents | UL94 V-0 | Free Hanging (In-Line) | 3 | Coax Power | 10 | 13 | 3 | B DB | 13C3 13W3 | Tin Plated | Steel | Housing Shell (Unthreaded) | Solder Cup | Male Pins Plug | 2 | 30 µin | Coax or Power Signal | Gold | Copper Alloy | 20 AWG | Green | Glass Filled Polybutylene Terephthalate (PBT) | |||||||||||||
 McGill Microwave Systems | Combo D-Sub | Grounding Indents | Free Hanging (In-Line) | 3 | Coax Power | 10 | 13 | 3 | B DB | 13C3 13W3 | Tin Plated | Steel | Housing Shell (Unthreaded) | Plug for Male Contacts | 2 | Coax Coax or Power Power | Black | Glass Filled Polybutylene Terephthalate (PBT) | 125 °C | -55 °C | 315 µin | Contacts Not Included |
