MD1213 Series
Manufacturer: Microchip Technology
Beta
⌘K

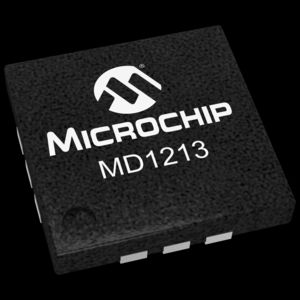

MOSFET DRIVER, HIGH SIDE AND LOW SIDE, 4.5V-13V SUPPLY, 2A OUTPUT, QFN-12
| Part | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Rise Time (Typ) | Fall Time (Typ) | Channel Type | Input Type | Driven Configuration | Gate Type | Gate Channel | Current - Peak Output (Sink) | Current - Peak Output (Source) | Package Name | Package Width | Package Length | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Number of Drivers | Logic Voltage - VIL | Logic Voltage - VIH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 12-VQFN Exposed Pad | -20 °C | 125 °C | Surface Mount | 6 ns | 6 ns | Independent | Non-Inverting | Half-Bridge | MOSFET N-Channel P-Channel MOSFET | N-Channel P-Channel | 2 A | 2 A | 12-QFN | 4 mm | 4 mm | 13 V | 4.5 V | 2 | 0.3 V | 1.2 V |
