NE68019 Series

Catalog

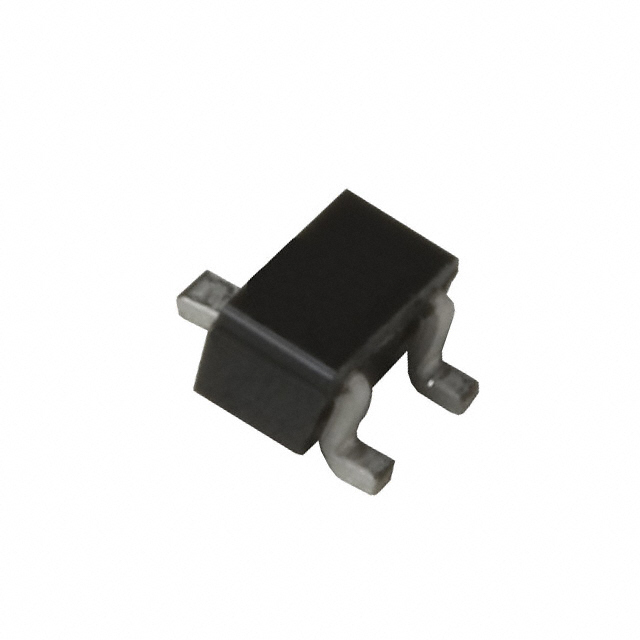

RF TRANS NPN 10V 10GHZ SOT523

Part	Package Name	Current - Collector (Ic) (Max)	DC Current Gain (hFE) (Min)	Gain (Min)	Gain (Max)	Transistor Type	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature	Noise Figure (Typical) Minimum	Noise Figure (Typical) Maximum	Power - Max	Mounting Type	Frequency - Transition	Noise Figure (Typical)	Gain
Renesas Electronics Corporation NE68019-T1	SOT-523	0.035 mA	80	9.6 dB	13.5 dB	NPN	SOT-523	10 V	150 °C	1.7 dB	1.9 dB	100 mW	Surface Mount	10 GHz
Renesas Electronics Corporation NE68019-T1-A	SOT-523	0.035 mA	80			NPN	SOT-523	10 V	150 °C			100 mW	Surface Mount	10 GHz	1.9 dB	9.6 dB
Renesas Electronics Corporation NE68019-A	SOT-523	0.035 mA	80			NPN	SOT-523	10 V	150 °C			100 mW	Surface Mount	10 GHz	1.9 dB	9.6 dB
