582151 Series

Catalog

29 AMP BLADE RCPT HSG ROHS COMPLIANT: YES

Part	Note	Number of Rows	Number of Positions	Contact Type	Row Spacing	Insulation Material	Mounting Type	Connector Type	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Termination	Pitch
TE Connectivity AMP Connectors 3-582151-3	Contacts Not Included	2	29	Female Socket	0.125 in	Diallyl Phthalate (DAP) Glass Filled	Panel Mount	Receptacle	Green	125 °C	-65 °C	Crimp	0.1 in
TE Connectivity AMP Connectors 3-582151-2	Contacts Not Included	2	23	Female Socket	0.125 in	Diallyl Phthalate (DAP) Glass Filled	Panel Mount	Receptacle	Green	125 °C	-65 °C	Crimp	0.1 in

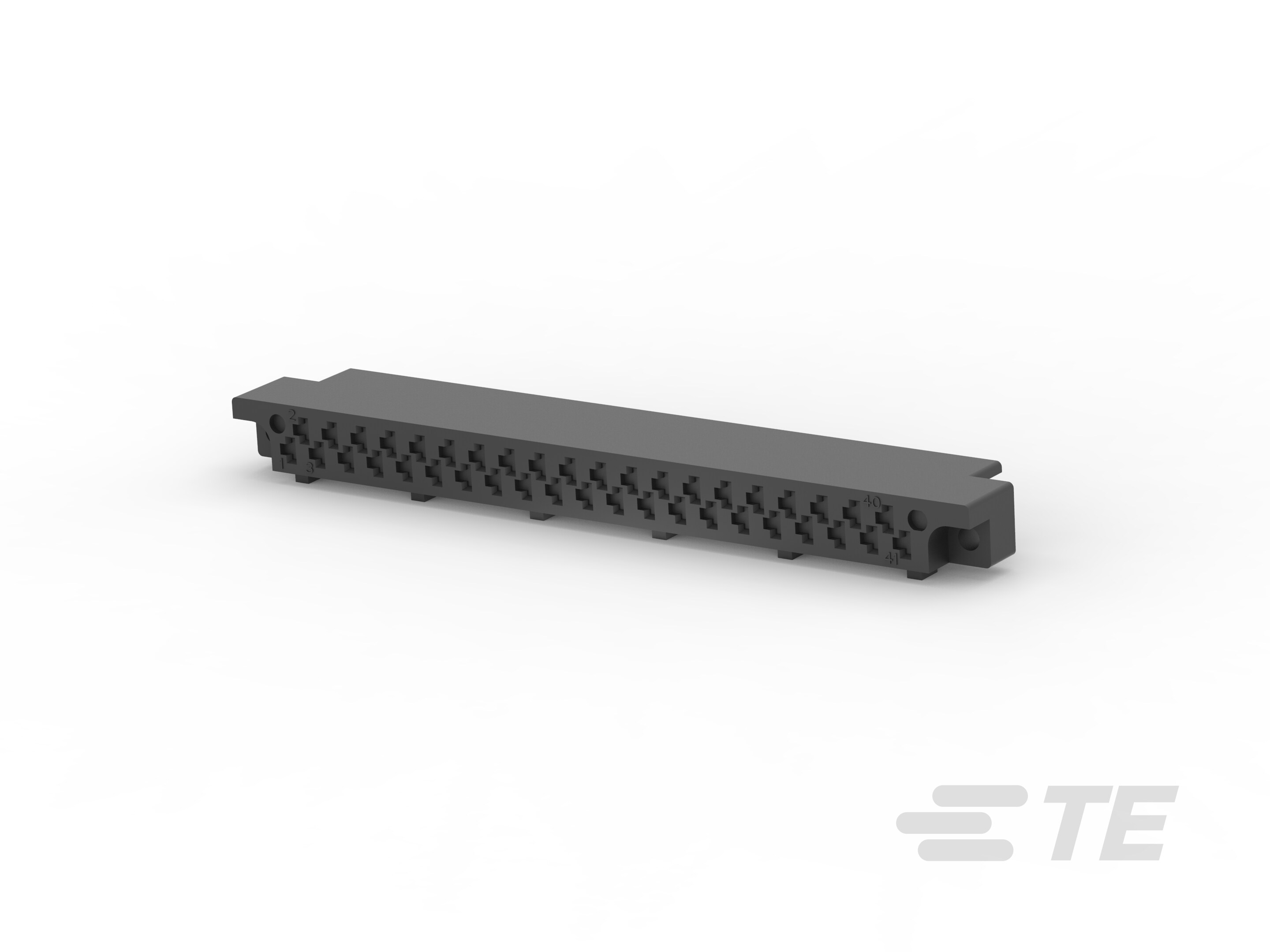

TE Connectivity AMP Connectors 5-582151-4		2	35	Female Blade Socket	0.125 in	Diallyl Phthalate (DAP) Glass Filled	Panel Mount	Receptacle	Green			Crimp	0.1 in
TE Connectivity AMP Connectors 5-582151-1	Contacts Not Included	2	17	Female Blade Socket	0.125 in	Diallyl Phthalate (DAP) Glass Filled	Panel Mount	Receptacle	Green			Crimp	0.1 in
TE Connectivity AMP Connectors 3-582151-1	Contacts Not Included	2	17	Female Socket	0.125 in	Diallyl Phthalate (DAP) Glass Filled	Panel Mount	Receptacle	Green	125 °C	-65 °C	Crimp	0.1 in
