RT07123 Series

Catalog

CONN RCPT MALE 3POS GOLD CRIMP

Part	Current Rating	Voltage Rating	Voltage Rating (Type)	Shell Size - Insert Length	Shell Size - Insert Width	Contact Finish Thickness - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Color	Shell Material	Connector Type	Number of Positions	Mounting Type	Termination	Contact Finish - Mating	Shell Finish	Fastening Type	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Mounting Feature	Note	Contact Size	Material Flammability Rating	Type	Shielding	Insert Material	Housing Color	Contact Type	Contact Shape	Includes Total Count	Includes

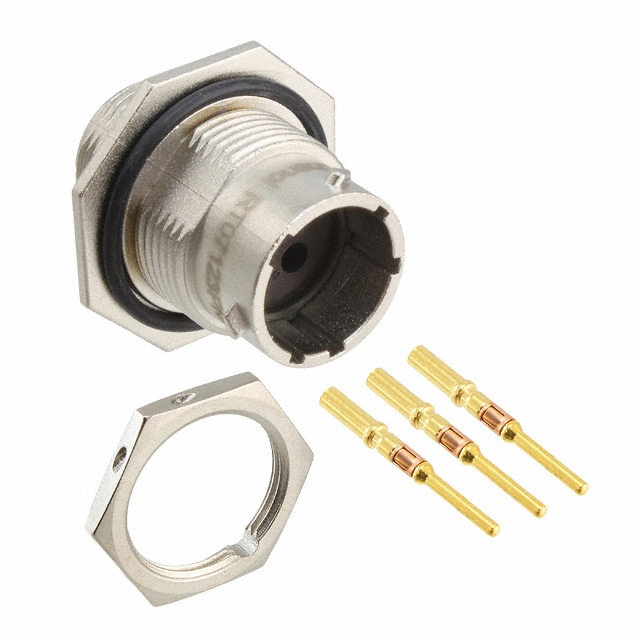

McGill Microwave Systems RT07123PNH-K	13 A	250 V	DC	12 mm	3 mm	Flash	-40 °C	105 °C	Silver	Zinc Die Cast	Male Pins Receptacle	3	Panel Mount	Crimp	Gold	Nickel	Bayonet Lock	N (Normal)	Dust Tight Waterproof	IP67	Metal	Bulkhead Front Side Nut

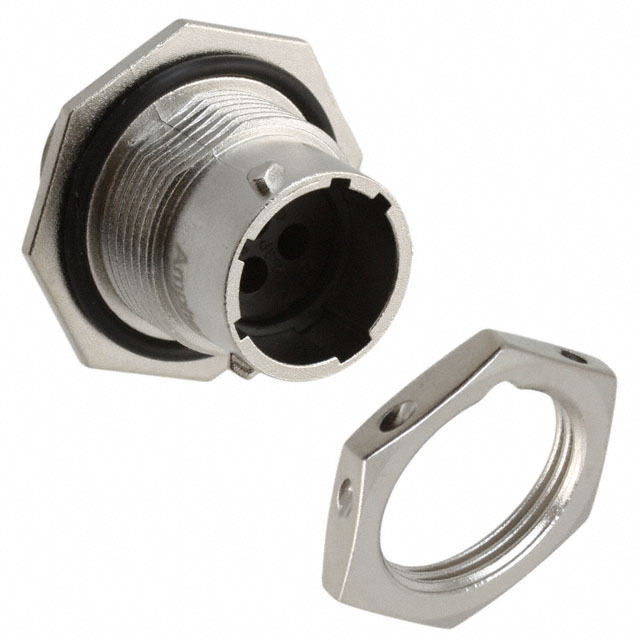

McGill Microwave Systems RT07123PNH				12 mm	3 mm		-40 °C	105 °C		Zinc Alloy	Receptacle Housing	3	Panel Mount			Nickel	Bayonet Lock	N (Normal)	Dust Tight Waterproof	IP67		Bulkhead Front Side Nut	Contacts Not Included	16 S	UL94 V-0	For Male Pins	Shielded	Thermoplastic	Silver	Crimp	Circular

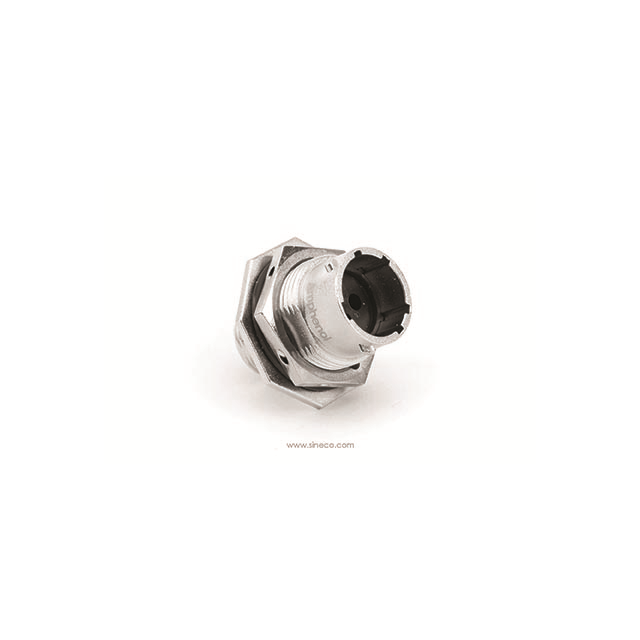

McGill Microwave Systems RT07123PNH03				12 mm	3 mm		-40 °C	125 °C		Zinc Alloy	Receptacle Housing	3	Panel Mount			Nickel	Bayonet Lock	N (Normal)	Dust Tight Waterproof	IP67		Bulkhead Front Side Nut	Contacts Not Included	16 S	UL94 V-0	For Male Pins	Shielded	Thermoplastic	Silver	Crimp	Circular	4 pcs	Connector Gasket Nut O-Ring

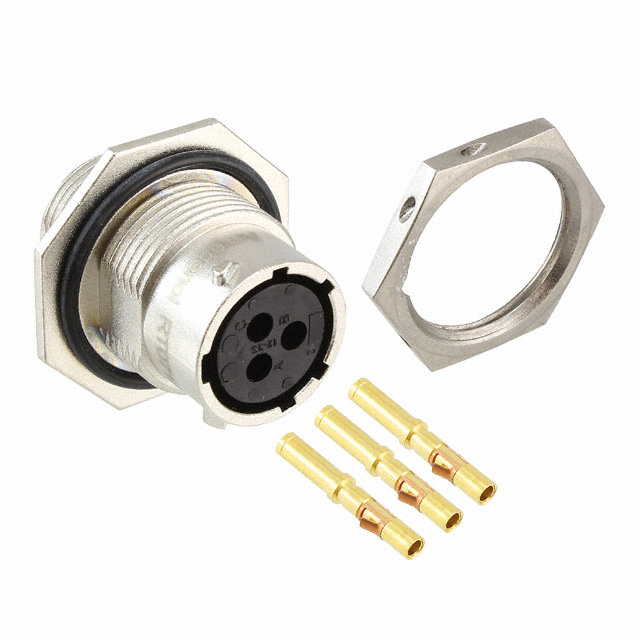

McGill Microwave Systems RT07123SNH-K	13 A	250 V	DC	12 mm	3 mm	Flash	-40 °C	105 °C	Silver	Zinc Die Cast	Female Sockets Receptacle	3	Panel Mount	Crimp	Gold	Nickel	Bayonet Lock	N (Normal)	Dust Tight Waterproof	IP67	Metal	Bulkhead Front Side Nut
