1224 Series

Catalog

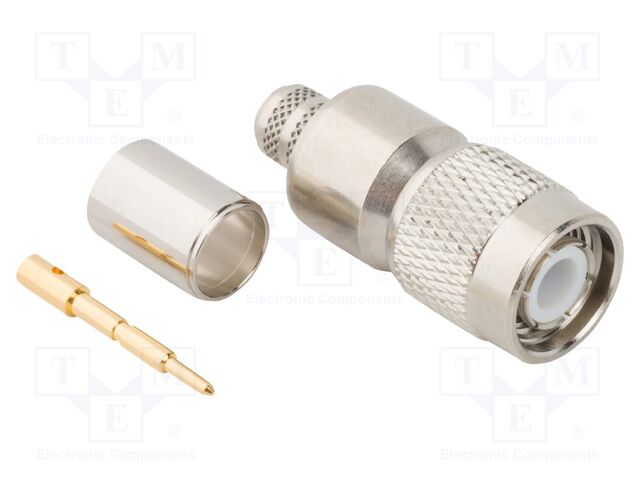

CONN TNC RCPT STR 50 OHM SOLDER

Part	Impedance	Mounting Feature	Connector Type	Number of Ports	Center Contact Material	Frequency - Max	Housing Color	Features	Fastening Type	Contact Termination	Connector Style	Shield Termination	Mounting Type	Mating Cycles	Center Contact Plating	Insertion Loss	Voltage Rating	Dielectric Material	Body Finish	Body Material	Cable Group	Includes Total Count	Includes	Cable Group Diameter (Semi Rigid)	Ingress Protection	Operating Temperature (Min)	Operating Temperature (Max)
McGill Microwave Systems 122443	50 Ohm	Flange	Female Socket Recepture	1	Phosphor Bronze	11 GHz	Silver	Extended Insulation	Threaded	Solder	TNC	Solder	Panel Mount	500 cycles	Gold	0.18 dB	500 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass
McGill Microwave Systems 122410	50 Ohm		Male Pin Plug	1	Brass	11 GHz	Silver		Threaded	Crimp	TNC	Crimp	Free Hanging (In-Line)	500 cycles	Gold	0.18 dB	500 V	Polyoxymethylene (POM) Acetal	Nickel	Brass	Belden 7807A LMR-200	3 pcs	Connector Contact Ferrule
McGill Microwave Systems 122469	50 Ohm	Bulkhead Rear Side Nut	Female Socket Jack	1	Phosphor Bronze		Silver		Threaded	Solder	TNC		Panel Mount	500 cycles	Gold			Polytetrafluoroethylene (PTFE)	Nickel	Brass	RG-405	5 pcs	Connector Contact Lockwasher Nuts	0.085 in
McGill Microwave Systems 122409	50 Ohm		Female Socket Jack	1	Phosphor Bronze	11 GHz	Silver		Threaded	Crimp	TNC	Crimp	Free Hanging (In-Line)	500 cycles	Gold	0.18 dB	500 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Belden 9258 LMR-240 RG-8X	3 pcs	Connector Contact Ferrule
McGill Microwave Systems 122479	50 Ohm	Bulkhead Front Side Nut	Female Socket Jack	1	Phosphor Bronze	11 GHz	Silver		Threaded	Crimp	TNC	Crimp	Panel Mount	500 cycles	Gold	0.18 dB	500 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass	142 223 400 RG-55	6 pcs	Connector Contact Ferrule Gasket Lockwasher Nut
McGill Microwave Systems 122465	75 Ohm		Male Pin Plug	1	Brass	1 GHz	Silver		Threaded	Crimp	TNC	Crimp	Free Hanging (In-Line)	500 cycles	Gold	0.18 dB	500 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass	9248 Belden 1694A RG-6 Double Braid	3 pcs	Connector Contact Ferrule
McGill Microwave Systems 122429	50 Ohm		Male Pin Plug	1	Phosphor Bronze	11 GHz	Silver		Threaded	Crimp	TNC	Crimp	Free Hanging (In-Line)	500 cycles	Gold	0.18 dB	500 V	Polyoxymethylene (POM) Acetal	Nickel	Brass	178A 178B 196 196A M17/93-RG178 RG-178	3 pcs	Connector Contact Ferrule
McGill Microwave Systems 122446	50 Ohm		Female Socket Jack	1	Phosphor Bronze	11 GHz	Silver		Threaded	Solder	TNC	Clamp	Free Hanging (In-Line)	500 cycles	Gold	0.18 dB	500 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass	213 214 RG-8	6 pcs	Braid Clamp Clamp Connector Contact Gasket Washer		Weatherproof
McGill Microwave Systems 122471	50 Ohm		Male Pin Plug	1	Brass	11 GHz	Silver		Threaded	Crimp	TNC	Crimp	Free Hanging (In-Line)	500 cycles	Gold	0.18 dB	500 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass	LMR-300					-65 °C	165 °C
McGill Microwave Systems 122430	50 Ohm		Male Pin Plug	1	Brass	11 GHz	Silver		Threaded	Solder	TNC	Crimp	Free Hanging (In-Line) Right Angle	500 cycles	Gold	0.18 dB	500 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass	142 223 400 RG-55	3 pcs	Connector End Cap Ferrule
