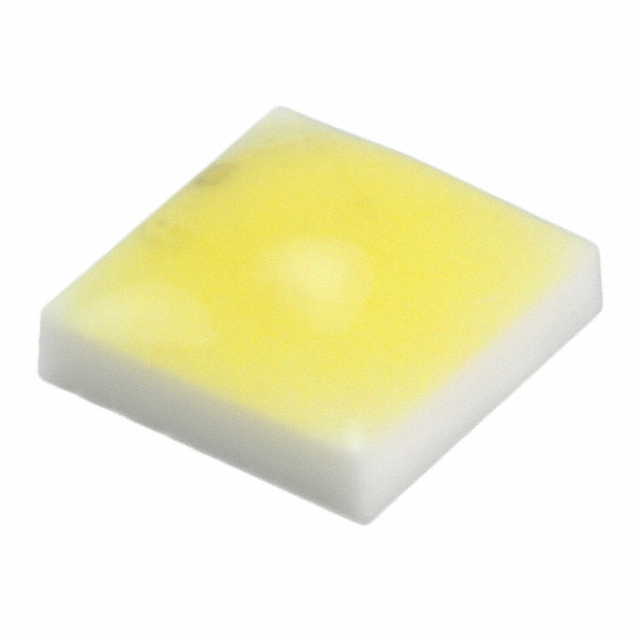

XHGAWT Series

Catalog

XLAMP XHG HIGH EFFICIENCY LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Part	Thermal Resistance of Package	CCT (K)	Color	Current - Max	Package Name	Mounting Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Current - Test	Height - Seated (Max)	Lumens/Watt	Package / Case	Flux (Minimum)	Flux (Nominal)	Flux (Maximum)	Viewing Angle	Size / Dimension Width	Size / Dimension Length	CRI (Color Rendering Index) (Typ)
CreeLED, Inc. XHGAWT-00-0000-00000PVE7	20 °C/W	3000 K	Warm White	350 mA	1212 3030	Surface Mount	2.9 V	85	65 mA	0.072 in	111 lm/W	1212 (3030 Metric)	18 lm	21 lm	24 lm	130 °	0.118 in	0.118 in
CreeLED, Inc. XHGAWT-00-0000-00000LX51	20 °C/W	6000 K	Cool White	350 mA	1212 3030	Surface Mount	2.9 V		65 mA	0.072 in	154 lm/W	1212 (3030 Metric)	27 lm	29 lm	31 lm	130 °	0.118 in	0.118 in	75
CreeLED, Inc. XHGAWT-00-0000-00000LX50	20 °C/W	6000 K	Cool White	350 mA	1212 3030	Surface Mount	2.9 V		65 mA	0.072 in	154 lm/W	1212 (3030 Metric)	27 lm	29 lm	31 lm	130 °	0.118 in	0.118 in	75
CreeLED, Inc. XHGAWT-00-0000-00000UVF8	20 °C/W	2850 K	Warm White	350 mA	1212 3030	Surface Mount	2.9 V	90	65 mA	0.072 in	111 lm/W	1212 (3030 Metric)	18 lm	21 lm	24 lm	130 °	0.118 in	0.118 in
CreeLED, Inc. XHGAWT-00-0000-00000HWF8	20 °C/W	2850 K	Warm White	350 mA	1212 3030	Surface Mount	2.9 V	80	65 mA	0.072 in	133 lm/W	1212 (3030 Metric)	24 lm	25 lm	27 lm	130 °	0.118 in	0.118 in
CreeLED, Inc. XHGAWT-00-0000-00000BXE2	20 °C/W	5700 K	Cool White	350 mA	1212 3030	Surface Mount	2.9 V	70	65 mA	0.072 in	154 lm/W	1212 (3030 Metric)	27 lm	29 lm	31 lm	130 °	0.118 in	0.118 in
CreeLED, Inc. XHGAWT-00-0000-00000L0E1		6500 K	Cool White	350 mA	1212 3030	Surface Mount	2.9 V		65 mA	0.072 in	175 lm/W	1212 (3030 Metric)	31 lm	33 lm	35 lm	130 °	0.118 in	0.118 in	75
CreeLED, Inc. XHGAWT-00-0000-00000HXE4	20 °C/W	4500 K	Neutral White	350 mA	1212 3030	Surface Mount	2.9 V	80	65 mA	0.072 in	154 lm/W	1212 (3030 Metric)	27 lm	29 lm	31 lm	130 °	0.118 in	0.118 in
CreeLED, Inc. XHGAWT-00-0000-00000LXE4	20 °C/W	4500 K	Neutral White	350 mA	1212 3030	Surface Mount	2.9 V		65 mA	0.072 in	154 lm/W	1212 (3030 Metric)	27 lm	29 lm	31 lm	130 °	0.118 in	0.118 in	75
CreeLED, Inc. XHGAWT-00-0000-00000BXE5	20 °C/W	4000 K	Neutral White	350 mA	1212 3030	Surface Mount	2.9 V	70	65 mA	0.072 in	154 lm/W	1212 (3030 Metric)	27 lm	29 lm	31 lm	130 °	0.118 in	0.118 in
