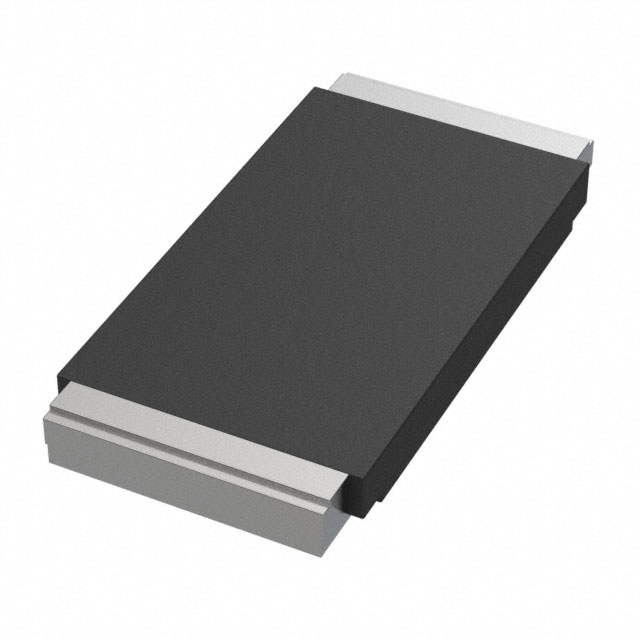

WFM Series
Manufacturer: Vishay Dale
Beta
⌘K
SMD CURRENT SENSE RESISTOR, 0.4 OHM, WFM SERIES, 2512 [6432 METRIC], 3 W, ± 1%, METAL PLATE
| Part | Ratings | Package / Case | Temperature Coefficient | Power (Watts) | Composition | Package Name | Number of Terminations | Operating Temperature (Min) | Operating Temperature (Max) | Resistance | Size / Dimension Length | Size / Dimension Width | Tolerance | Height - Seated (Max) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | AEC-Q200 | 2512 (6332 Metric) 2512 (6432 Metric) | 50 ppm/°C | 3 W | Metal Film | 2512 | 2 | -65 °C | 170 °C | 0.4 Ohms | 0.25 in | 0.125 in | 1 % | 0.026 in | Automotive AEC-Q200 Current Sense Moisture Resistant |
 Vishay Dale | AEC-Q200 | 2010 (5025 Metric) | 50 ppm/°C | 2 w | Metal Film | 2010 | 2 | -65 °C | 170 °C | 75 mOhms | 0.2 in | 0.1 in | 1 % | 0.026 in | Automotive AEC-Q200 Current Sense Moisture Resistant |
 Vishay Dale | AEC-Q200 | 2010 (5025 Metric) | 50 ppm/°C | 2 w | Metal Film | 2010 | 2 | -65 °C | 170 °C | 0.25 Ohms | 0.2 in | 0.1 in | 1 % | 0.026 in | Automotive AEC-Q200 Current Sense Moisture Resistant |
