Q-0304F0 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CBL ASSY BNC-TNC JACK-JACK 36"
| Part | Cable Type | Features | Style | Color | 2nd Contact Gender | Length | 1st Contact Gender | Overall Impedance | Frequency - Max | 2nd Connector Mounting Type | 1st Connector | 1st Connector Mounting Type | 2nd Connector | 2nd Connector Mounting Feature | Length (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

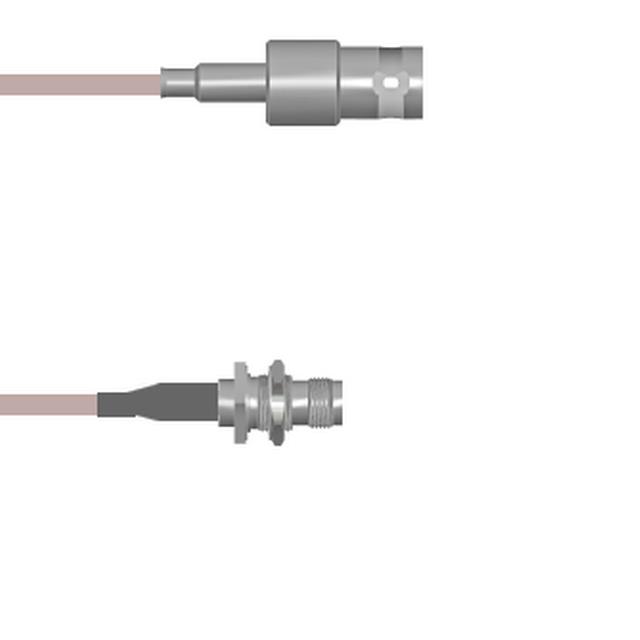

 McGill Microwave Systems | 316 RG | Shielded | BNC TNC | Copper | Female | 36 in | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut | |
 McGill Microwave Systems | 174 RG | Shielded | BNC TNC | Black | Female | 0.5 ft | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut | |

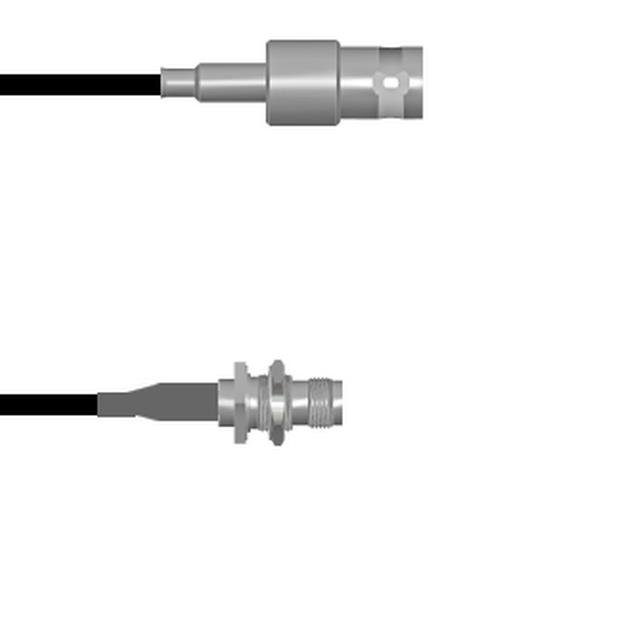

 McGill Microwave Systems | 174 RG | Shielded | BNC TNC | Black | Female | 24 in | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut | |
McGill Microwave Systems | 316 RG | Shielded | BNC TNC | Copper | Female | 1524 mm | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut | 5 ft |
McGill Microwave Systems | 316 RG | Shielded | BNC TNC | Copper | Female | 3 " | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut | |
McGill Microwave Systems | 174 RG | Shielded | BNC TNC | Black | Female | 3 " | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut | |
McGill Microwave Systems | 174 RG | Shielded | BNC TNC | Black | Female | 118.1 in | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut | |
McGill Microwave Systems | 316 RG | Shielded | BNC TNC | Copper | Female | 19.69 in | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut | |
McGill Microwave Systems | 174 RG | Shielded | BNC TNC | Black | Female | 59.1 in | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut | 4.9 ft |
McGill Microwave Systems | 174 RG | Shielded | BNC TNC | Black | Female | 9.843 in | Female | 50 Ohms | 4 GHz | Panel Mount | BNC Jack | Free Hanging (In-Line) | TNC Jack | Bulkhead - Front Side Nut |
