336314 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

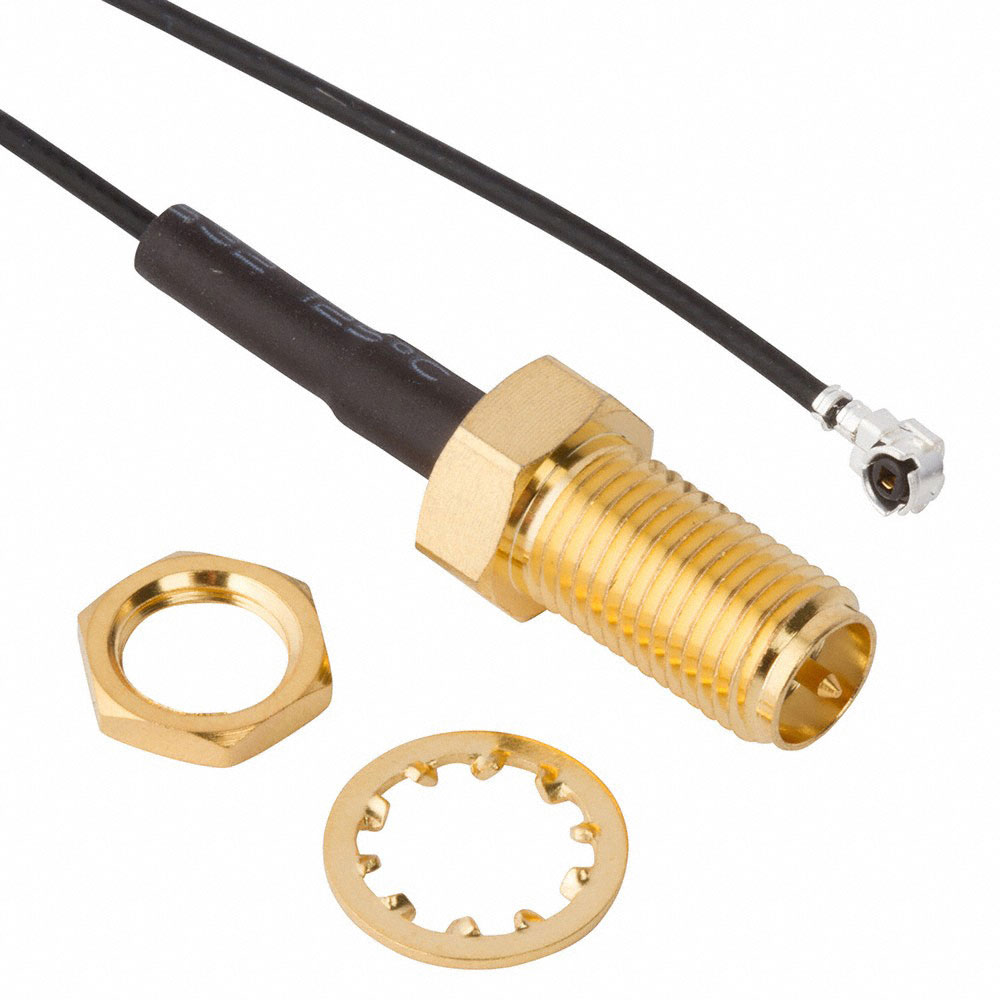

CBL ASSY AMC-RPSMA JCK-PL 5.906"
| Part | Style | 1st Contact Gender | 2nd Connector Mounting Type | 1st Connector | 2nd Connector | Frequency - Max | Length | 2nd Contact Gender | Overall Impedance | 1st Connector Mounting Type | Color | Cable Type Size | Cable Type | Cable Outer Diameter | 1st Connector Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 5.906 in | Female | 50 Ohms | Panel Mount | Black | 1.37 | Coaxial Cable OD Coaxial Cable | 1.37 mm | Bulkhead Front Side Nut |
McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 9.843 in | Female | 50 Ohms | Panel Mount | Black | 1.37 | Coaxial Cable OD Coaxial Cable | 1.37 mm | Bulkhead Front Side Nut |
 McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 11.811 in | Female | 50 Ohms | Panel Mount | Black | 1.32 | 1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.32 mm | Bulkhead Front Side Nut |
McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 1.969 in | Female | 50 Ohms | Panel Mount | Black | 1.32 | 1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.32 mm | Bulkhead Front Side Nut |
McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 5.906 in | Female | 50 Ohms | Panel Mount | Black | 1.32 | 1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.32 mm | Bulkhead Front Side Nut |
McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 9.843 in | Female | 50 Ohms | Panel Mount | Black | 1.32 | 1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.32 mm | Bulkhead Front Side Nut |
McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 7.874 in | Female | 50 Ohms | Panel Mount | Black | 1.32 | 1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.32 mm | Bulkhead Front Side Nut |
McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 5.906 in | Female | 50 Ohms | Panel Mount | Black | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | Bulkhead Front Side Nut |
McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 9.843 in | Female | 50 Ohms | Panel Mount | Black | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | Bulkhead Front Side Nut |
McGill Microwave Systems | AMC RP-SMA U.FL (UMCC) | Male | Free Hanging (In-Line) | RP-SMA Jack | AMC Plug Right Angle U.FL (UMCC) | 6000 MHz | 3.937 in | Female | 50 Ohms | Panel Mount | Black | 1.13 | 1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 1.13 mm | Bulkhead Front Side Nut |
