SF1621 Series

Catalog

2.4MM FEMALE FLANGE MOUNT CONNECTOR, 2 HOLE (ACCEPTS .012 PIN) / INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Part	Body Material	Center Contact Plating	Dielectric Material	Mating Cycles	Contact Termination	Features	Mounting Type	Fastening Type	Housing Color	Shield Termination	Center Contact Material	Number of Ports	Frequency - Max	Impedance	Connector Type	Mounting Feature	Connector Plug Diameter	Connector Style	Includes Total Count	Includes	Operating Temperature (Max)	Operating Temperature (Min)	Cable Group Size	Cable Group	Cable Group Diameter (Default)

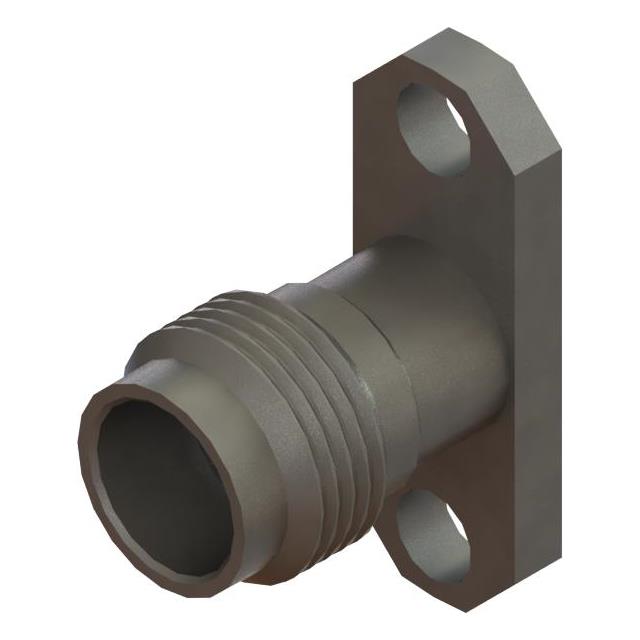

McGill Microwave Systems SF1621-60017	Stainless Steel	Gold	Polyetherimide (PEI)	500 cycles	Compression	Field Replaceable For Hermetically Sealed Pin	Panel Mount	Threaded	Silver	Screw	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack	Flange	2.4 mm	APC-2.4 OS-50

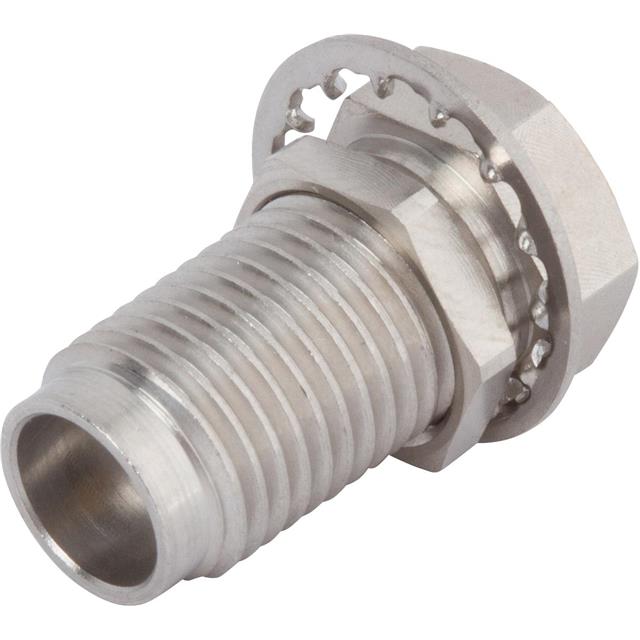

McGill Microwave Systems SF1621-60005	Stainless Steel	Gold	Polyetherimide (PEI)	500 cycles	Solder		Panel Mount	Threaded	Silver	Solder	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack	Bulkhead Front Side Nut	2.4 mm	APC-2.4 OS-50	3 pcs	Connector Lockwasher Nut	125 °C	-55 °C	0.047 "	Flexible
McGill Microwave Systems SF1621-60029-1S	Stainless Steel	Gold	Polyetherimide (PEI)	500 cycles	Compression	Mounting Hardware	Surface Mount	Threaded	Silver	Screw	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack	Flange	2.4 mm	APC-2.4 OS-50	3 pcs	Connector Screws	165 °C	-65 °C

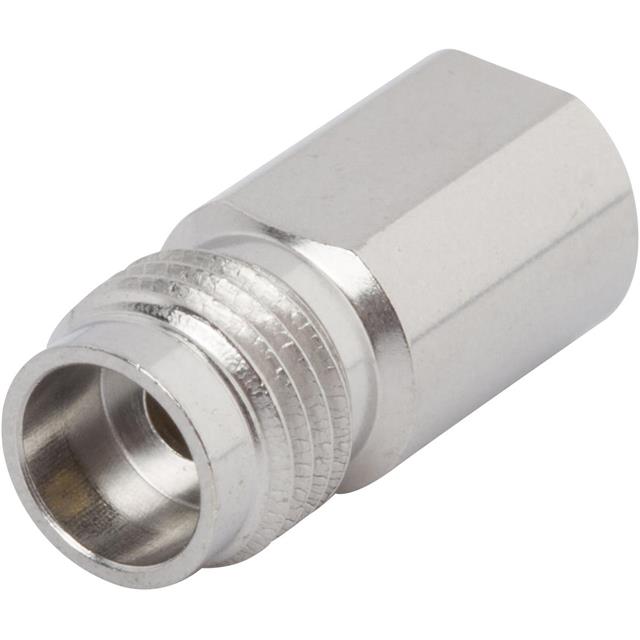

McGill Microwave Systems SF1621-60009	Stainless Steel	Gold	Polyetherimide (PEI)				Free Hanging (In-Line)	Threaded	Silver	Clamp	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack		2.4 mm	APC-2.4 OS-50						RG-405	0.085 in

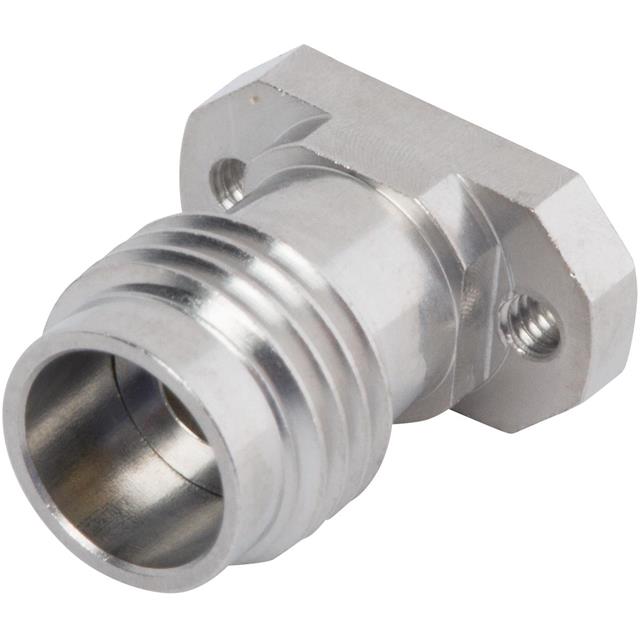

McGill Microwave Systems SF1621-60049	Stainless Steel	Gold		500 cycles	Compression		Surface Mount	Threaded	Silver	Screw	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack	Flange	2.4 mm	APC-2.4 OS-50			165 °C	-65 °C

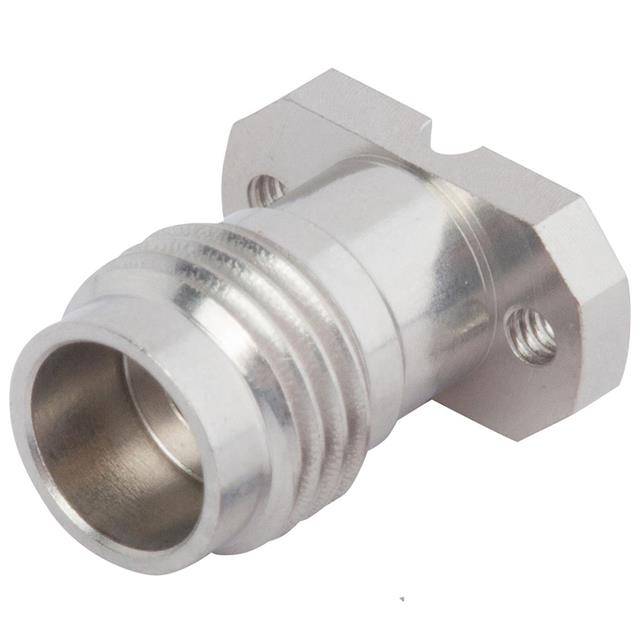

McGill Microwave Systems SF1621-60026	Stainless Steel	Gold	Polyetherimide (PEI)	500 cycles	Compression		Surface Mount	Threaded	Silver	Screw	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack	Flange	2.4 mm	APC-2.4 OS-50			165 °C	-65 °C

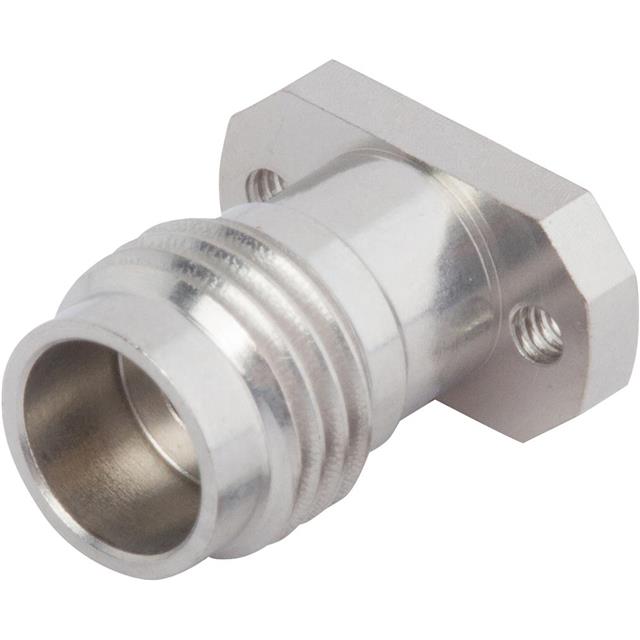

McGill Microwave Systems SF1621-60029	Stainless Steel	Gold	Polyetherimide (PEI)	500 cycles	Compression		Surface Mount	Threaded	Silver	Screw	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack	Flange	2.4 mm	APC-2.4 OS-50			165 °C	-65 °C

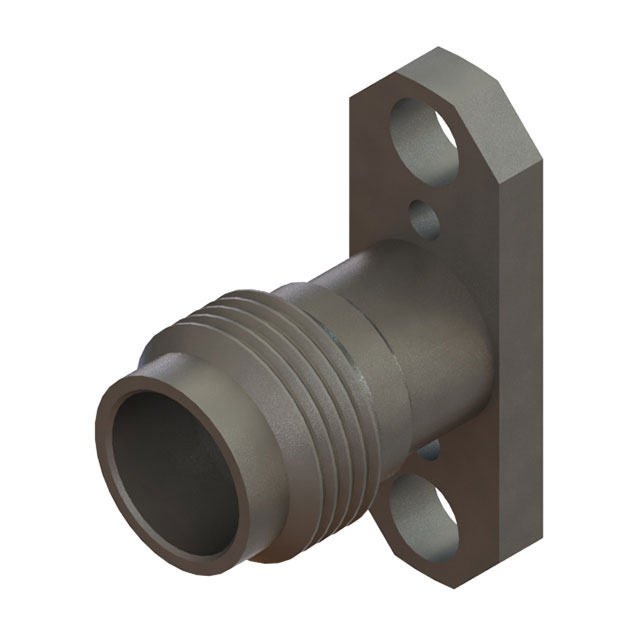

McGill Microwave Systems SF1621-60003	Stainless Steel	Gold	Polyetherimide (PEI)		Compression		Surface Mount	Threaded	Silver	Screw	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack	Flange	2.4 mm	APC-2.4 OS-50
McGill Microwave Systems SF1621-60029-2S	Stainless Steel	Gold	Polyetherimide (PEI)	500 cycles	Compression	Mounting Hardware	Surface Mount	Threaded	Silver	Screw	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack	Flange	2.4 mm	APC-2.4 OS-50	3 pcs	Connector Screws	165 °C	-65 °C
McGill Microwave Systems SF1621-60014	Stainless Steel	Gold	Polyetherimide (PEI)	500 cycles	Solder		Free Hanging (In-Line)	Threaded	Silver	Solder	Beryllium Copper	1	50 GHz	50 Ohm	Female Socket Jack		2.4 mm	APC-2.4 OS-50					0.047 "	Flexible
