2221760 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
AMPLIMITE IP67, SZ4, 90, 62 POS, RCPT
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Dielectric Material | Contact Material | Contact Type | Connector Type | Contact Finish | Connector Style | Finish | Shell Material | Ingress Protection Description | Ingress Protection IP Rating | Mounting Type | Current Rating | Number of Positions | Number of Rows | Termination | Flange Feature | Shell Size | Connector Layout | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 °C | -55 °C | Glass Filled Polyester | Copper Alloy | Signal | Female Sockets Receptacle | Gold | D-Sub High Density | Cadmium Plated | Steel | Dust Tight Waterproof | IP67 | Free Hanging (In-Line) | 5 A | 62 | 3 | Crimp | Housing Shell (Unthreaded) | 4 | C DC High Density | |
 TE Connectivity AMP Connectors | 125 °C | -50 °C | Glass Filled Polyester | Signal | Receptacle for Female Contacts | D-Sub High Density | Cadmium Plated | Steel | Dust Tight Waterproof | IP67 | Free Hanging (In-Line) | 62 | 3 | Housing Shell (Unthreaded) | 4 | C DC High Density | Contacts Not Included | ||||

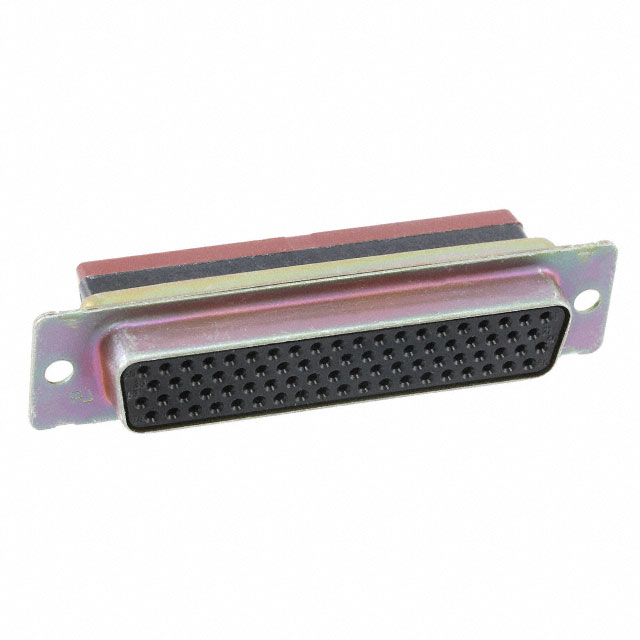

 TE Connectivity AMP Connectors | 125 °C | -50 °C | Glass Filled Polyester | Signal | Receptacle for Female Contacts | D-Sub High Density | Cadmium Plated | Steel | Dust Tight Waterproof | IP67 | Free Hanging (In-Line) | 78 | 4 | Housing Shell (Unthreaded) | 5 | D DD High Density | Contacts Not Included |
