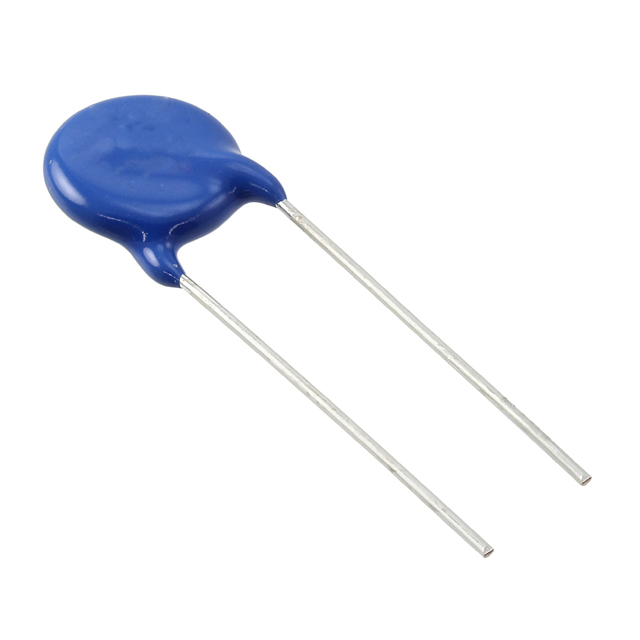

WKO Series

Catalog

SAFETY CAPACITORS WKO X440Y300VAC 220PF +/-20% K2000 E3

Part	Lead Style	Mounting Type	Ratings	Voltage - Rated	Package / Case	Height - Seated (Max)	Applications	Temperature Coefficient	Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	Lead Spacing	Capacitance	Size / Dimension Diameter
Vishay Dale WKO221MCPCD0KR	Straight	Through Hole	X1 Y2	440 V	Disc Radial	0.433 in	Safety	Y5T	20 %	125 °C	-40 °C	0.295 in	220 pF	0.315 in
Vishay Dale WKO470MCPCF0KR	Straight	Through Hole	X1 Y2	440 V	Disc Radial	0.433 in	Safety	U2J	20 %	125 °C	-40 °C	0.295 in	47 pF	0.315 in
Vishay Dale WKO102MCPDF0KR	Straight	Through Hole	X1 Y2	440 V	Disc Radial	0.512 in	Safety	Y5U (E)	20 %	125 °C	-40 °C	0.394 in	1000 pF	0.394 in
Vishay Dale WKO332MCPEJ0KR	Straight	Through Hole	X1 Y2	440 V	Disc Radial	0.709 in	Safety	Y5U (E)	20 %	125 °C	-40 °C	0.492 in	3300 pF	0.591 in
Vishay Dale WKO222KCPCF0KR	Straight	Through Hole	X1 Y2	440 V	Disc Radial	0.63 in	Safety	Y5U (E)	10 %	125 °C	-40 °C	0.295 in	2200 pF	0.512 in
Vishay Dale WKO471KCPCREKR
Vishay Dale WKO471MCPCD0KR	Straight	Through Hole	X1 Y2	440 V	Disc Radial	0.433 in	Safety	Y5U (E)	20 %	125 °C	-40 °C	0.295 in	470 pF	0.315 in
Vishay Dale WKO331MCPEF0KR	Straight	Through Hole	X1 Y2	440 V	Disc Radial	0.433 in	Safety	Y5T	20 %	125 °C	-40 °C	0.492 in	330 pF	0.315 in
Vishay Dale WKO222MCPNR0KR	Straight	Through Hole	X1 Y2	440 V	Disc Radial	0.63 in	Safety	Y5U (E)	20 %	125 °C	-40 °C	0.295 in	2200 pF	0.512 in
Vishay Dale WKO152KCPCJ0KR	Straight	Through Hole	X1 Y2	440 V	Disc Radial	0.591 in	Safety	Y5U (E)	10 %	125 °C	-40 °C	0.295 in	1500 pF	0.472 in
