Q-0303H0 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

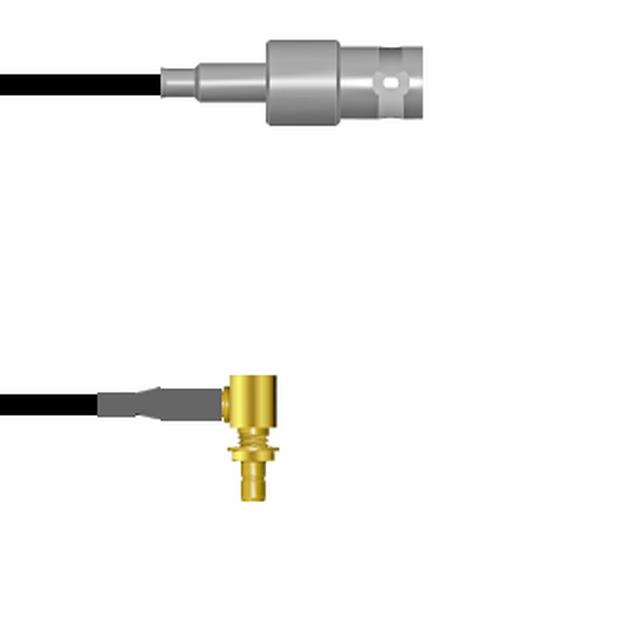

CBL ASSY BNC-SMB JACK-JACK 6'
| Part | 2nd Connector Mounting Type | Length | Cable Type | 1st Connector | Frequency - Max | Features | 2nd Connector Mounting Feature | 2nd Contact Gender | 1st Contact Gender | 1st Connector Mounting Type | 2nd Connector | Style | Color | Overall Impedance | Length (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Panel Mount | 72 in | 174 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Black | 50 Ohms | |

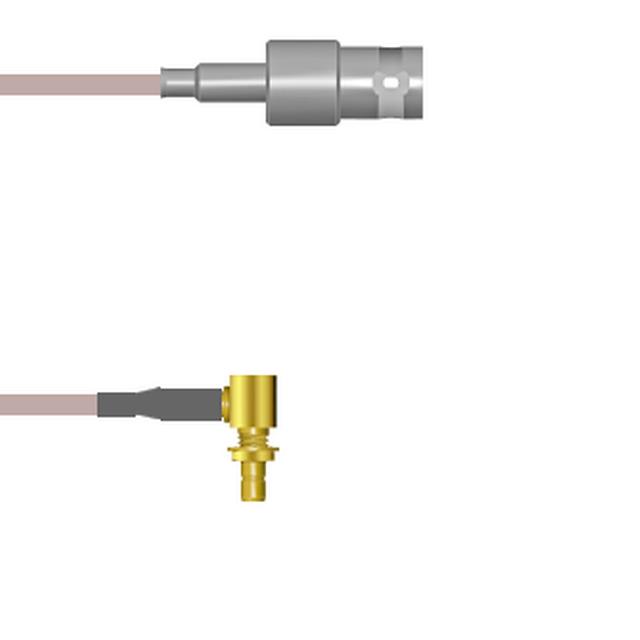

 McGill Microwave Systems | Panel Mount | 84 in | 316 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Copper | 50 Ohms | 7 ft |
McGill Microwave Systems | Panel Mount | 18 in | 316 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Copper | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 18 in | 174 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Black | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 24 in | 316 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Copper | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 39.4 in | 316 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Copper | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 98.4 in | 316 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Copper | 50 Ohms | 8.2 ft |
McGill Microwave Systems | Panel Mount | 9.843 in | 174 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Black | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 36 in | 174 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Black | 50 Ohms | |
McGill Microwave Systems | Panel Mount | 12 in | 316 RG | BNC Jack | 4 GHz | Shielded | Bulkhead - Front Side Nut | Female | Female | Free Hanging (In-Line) | Right Angle SMB Jack | BNC SMB | Copper | 50 Ohms |
