AT16 Series

Catalog

CONN PLUG HSG 15POS

Part	Note	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Features	Mounting Type	Number of Rows	Connector Type	Insulation Material	Contact Termination	Fastening Type	Color	Number of Positions
McGill Microwave Systems AT16-15SD-EK02	Contacts Not Included	125 °C	-55 °C	Female Socket	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Plug	Thermoplastic	Crimp	Latch Lock	Gray	15

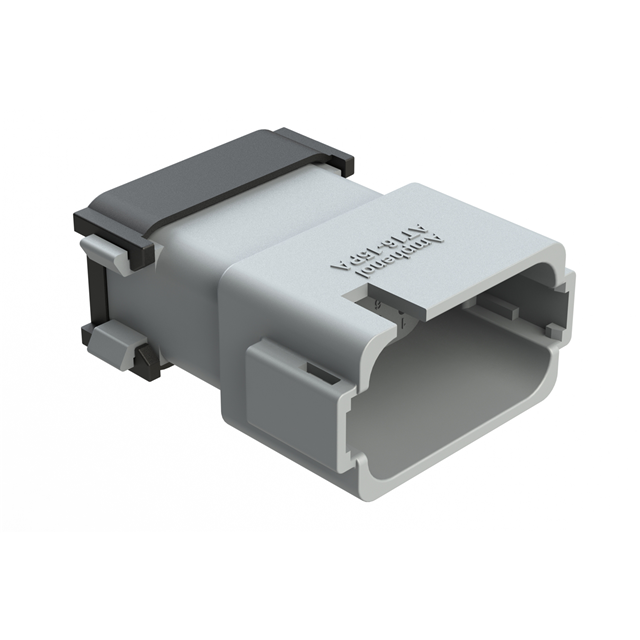

McGill Microwave Systems AT16-15PA-EK02	Contacts Not Included	125 °C	-55 °C	Male Pin	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Receptacle	Thermoplastic	Crimp	Latch Holder	Gray	15

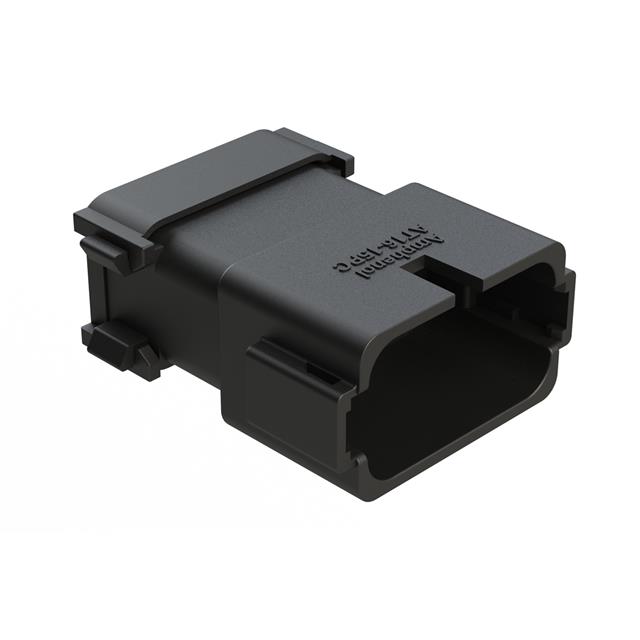

McGill Microwave Systems AT16-15PC-K003	Contacts Not Included	125 °C	-55 °C	Male Pin	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Receptacle	Thermoplastic	Crimp	Latch Holder	Black	15
McGill Microwave Systems AT16-15PD-EK02	Contacts Not Included	125 °C	-55 °C	Male Pin	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Receptacle	Thermoplastic	Crimp	Latch Holder	Brown	15
McGill Microwave Systems AT16-15PD-K003	Contacts Not Included	125 °C	-55 °C	Male Pin	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Receptacle	Thermoplastic	Crimp	Latch Holder	Black	15

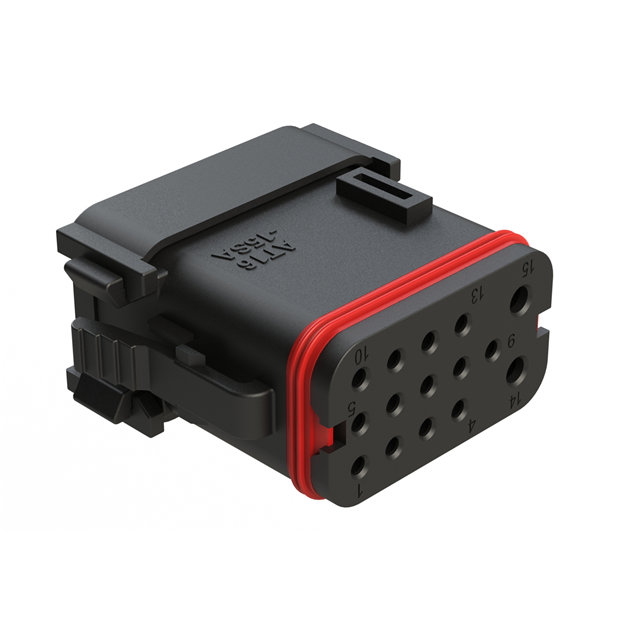

McGill Microwave Systems AT16-15SA-K003	Contacts Not Included	125 °C	-55 °C	Female Socket	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Plug	Thermoplastic	Crimp	Latch Lock	Black	15

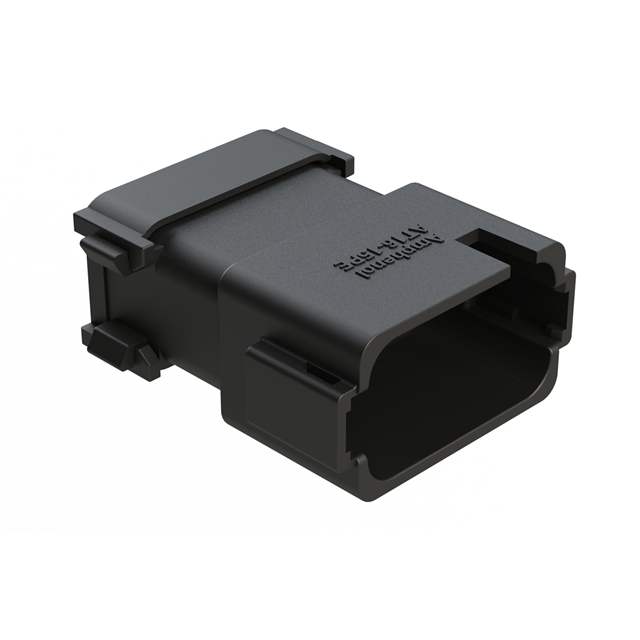

McGill Microwave Systems AT16-15PE-K003	Contacts Not Included	125 °C	-55 °C	Male Pin	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Receptacle	Thermoplastic	Crimp	Latch Holder	Black	15

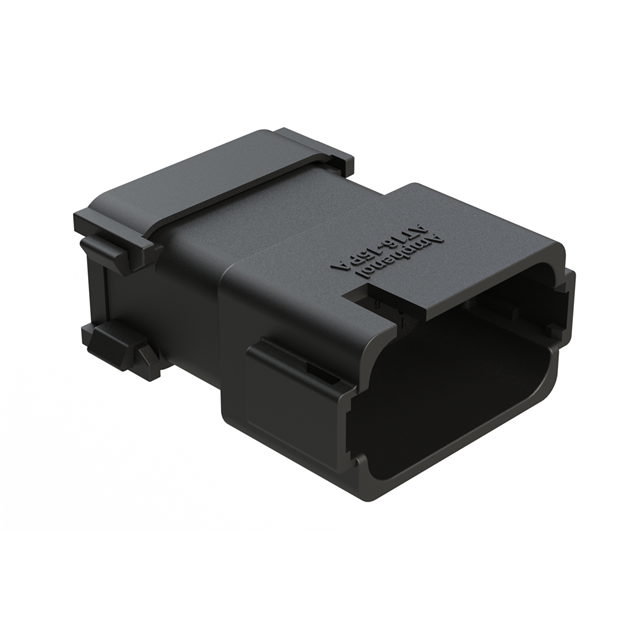

McGill Microwave Systems AT16-15PA-K003	Contacts Not Included	125 °C	-55 °C	Male Pin	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Receptacle	Thermoplastic	Crimp	Latch Holder	Black	15

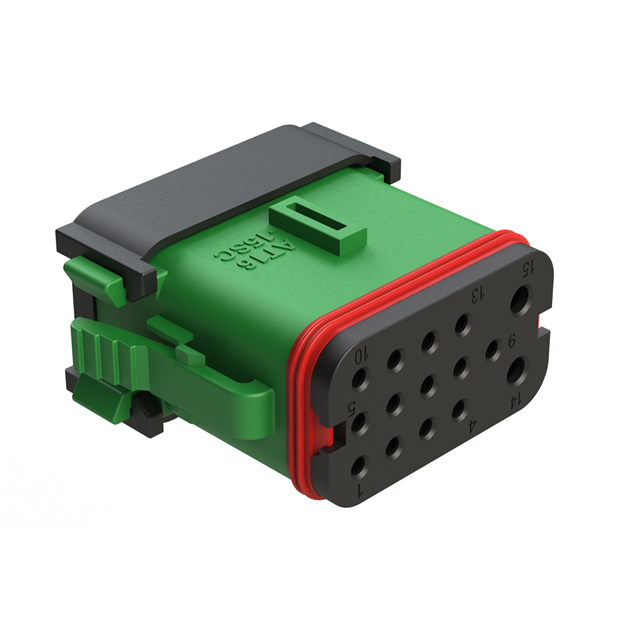

McGill Microwave Systems AT16-15SC-EK02	Contacts Not Included	125 °C	-55 °C	Female Socket	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Plug	Thermoplastic	Crimp	Latch Lock	Gray	15
McGill Microwave Systems AT16-15PC-EK02	Contacts Not Included	125 °C	-55 °C	Male Pin	Cap (Cover) IP68 IP69K Reduced Wire Seals	Free Hanging (In-Line)	3	Receptacle	Thermoplastic	Crimp	Latch Holder	Green	15
