CMB1304 Series

Catalog

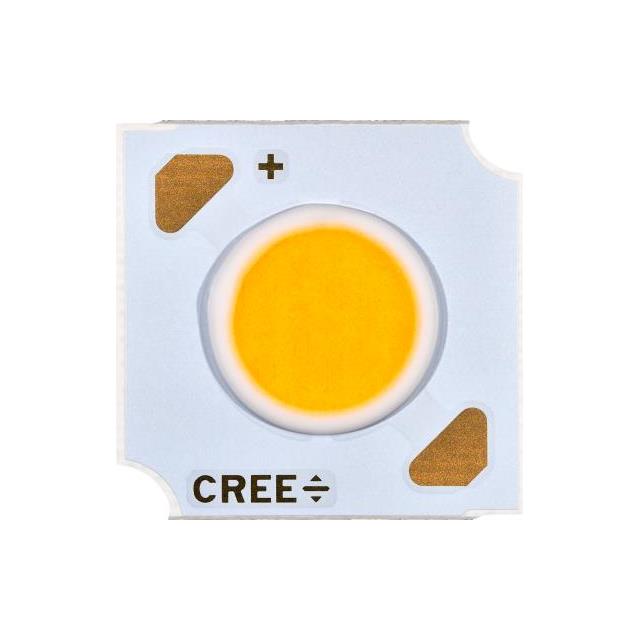

XLAMP CMB LED WHITE PRO9

...

Part	Size / Dimension Length	Size / Dimension Width	Type	Temperature - Test	Color	Viewing Angle	Current - Max	Light Emitting Surface (LES) Diameter	Current - Test	CCT (K)	CRI (Color Rendering Index)	Height	Lens Type	Configuration	Voltage - Forward (Vf) (Typ)	CCT Description	Lumens/Watt	Luminous Flux
CreeLED, Inc. CMB1304-R160-00PN0U0A35H	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Warm White	115 °	300 mA	6 mm	100 mA	3500 K	90	1.75 mm	Flat	Square	33.6 V
CreeLED, Inc. CMB1304-0000-000N0H0A30H	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Warm White	115 °	1.2 A	6 mm	100 mA	3000 K	80	1.75 mm	Flat	Square	33.6 V	2-Step MacAdam Ellipse	159 lm/W	535 lm
CreeLED, Inc. CMB1304-0000-000F0H0A57G	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Cool White	115 °	1.2 A	6 mm	200 mA	5700 K	80	1.75 mm	Flat	Square	16.7 V	3-Step MacAdam Ellipse	168 lm/W	560 lm
CreeLED, Inc. CMB1304-R160-000F0H0A50G	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Cool White	115 °	1.2 A	6 mm	200 mA	5000 K	80	1.75 mm	Flat	Square	16.7 V	3-Step MacAdam Ellipse	167 lm/W	557 lm
CreeLED, Inc. CMB1304-0000-000N0B0A65E	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Cool White	115 °	1.2 A	6 mm	100 mA	6500 K	70	1.75 mm	Flat	Square	33.6 V	5-Step MacAdam Ellipse	183 lm/W	616 lm
CreeLED, Inc. CMB1304-R160-00PN0U0A31Q	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Warm White	115 °	300 mA	6 mm	100 mA	3100 K	90	1.75 mm	Flat	Square	33.6 V
CreeLED, Inc. CMB1304-0000-000C0B0A57E	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Cool White	115 °	1.2 A	6 mm	400 mA	5700 K	70	1.75 mm	Flat	Square	8.3 V	5-Step MacAdam Ellipse	169 lm/W	560 lm
CreeLED, Inc. CMB1304-0000-000C0U0A30U	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Warm White	115 °	1.2 A	6 mm	400 mA	3000 K	90	1.75 mm	Flat	Square	8.3 V	3-Step MacAdam Ellipse	131 lm/W	436 lm
CreeLED, Inc. CMB1304-R160-00PC0U0A30Q	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Warm White	115 °	1.2 A	6 mm	400 mA	3000 K	90	1.75 mm	Flat	Square	8.3 V
CreeLED, Inc. CMB1304-R160-000F0U0A27G	13.35 mm	13.35 mm	Chip On Board (COB)	85 °C	Warm White	115 °	1.2 A	6 mm	200 mA	2700 K	90	1.75 mm	Flat	Square	16.7 V	3-Step MacAdam Ellipse	134 lm/W	447 lm
