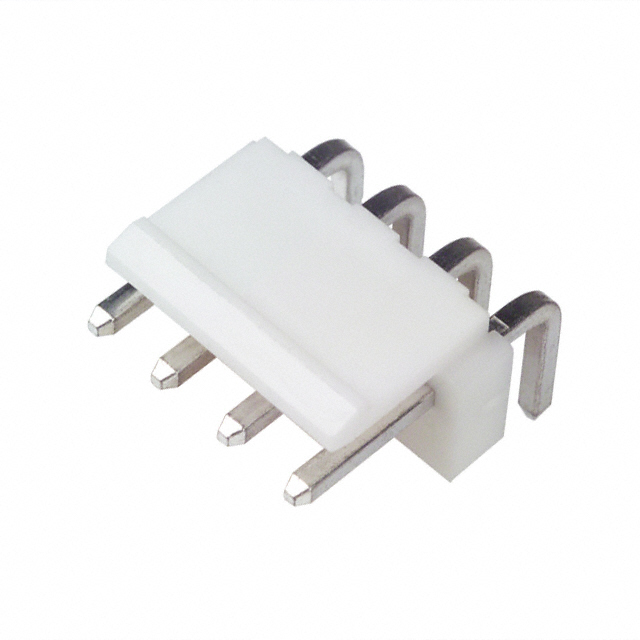

B4PS-VH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 4POS 3.96MM
| Part | Insulation Color | Style | Connector Type | Insulation Material | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Fastening Type | Contact Type | Contact Material | Voltage Rating | Mounting Type | Contact Length - Post | Material Flammability Rating | Pitch - Mating | Number of Positions Loaded | Contact Shape | Contact Finish - Mating | Termination | Contact Length - Mating | Contact Finish - Post | Number of Rows | Number of Positions | Insulation Height | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | Board Cable/Wire | Header | Nylon 6/6 Polyamide (PA66) | 10 A | 85 °C | -25 °C | Locking Ramp | Male Pin | Brass | 250 V | Right Angle Through Hole | 0.142 in | UL94 V-0 | 0.156 in | All | Square | Tin | Solder | 0.303 in | Tin | 1 | 4 | 0.335 in | Shrouded - 1 Wall |
