V706 Series

Catalog

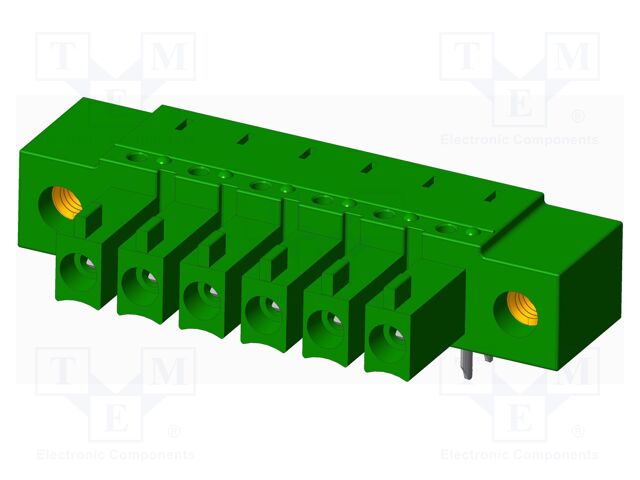

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 4A; 300V

Part	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Positions Per Level	Number of Levels	Color	Number of Positions	Mounting Type	Contact Mating Finish	Termination Style	Header Orientation	Current - UL	Type	Housing Material	Material Flammability Rating	Contact Material	Contact Tail Length	Insulation Height	Features	Header Orientation Angle
McGill Microwave Systems V70611500000G	300 V	-40 °C	115 °C	0.138 in	6	1	Green	6	Through Hole	Tin	Solder	Vertical	4 A	Female Sockets Header	Thermoplastic	UL94 V-0	Phosphor Bronze	0.134 in	0.571 in
McGill Microwave Systems V70652500000G	300 V	-40 °C	115 °C	5.08 mm	6	1	Green	6	Through Hole	Tin	Solder	Vertical	20 A	Female Sockets Header	Thermoplastic	UL94 V-0	Copper	0.138 in	0.748 in	Mating Flange Retention Latches
McGill Microwave Systems V70671510000G	300 V	-40 °C	115 °C	0.197 in	6	1	Green	6	Through Hole	Tin	Solder	Right Angle	10 A	Female Sockets Header	Thermoplastic	UL94 V-0	Phosphor Bronze	0.138 in		Retention Latches	90 °
McGill Microwave Systems V70612510000G	300 V	-40 °C	115 °C	0.138 in	6	1	Green	6	Through Hole	Tin	Solder	Right Angle	4 A	Female Sockets Header	Thermoplastic	UL94 V-0	Phosphor Bronze	0.134 in	0.268 in	Mating Flange	90 °
McGill Microwave Systems V70631500000G	300 V	-40 °C	115 °C	0.15 in	6	1	Green	6	Through Hole	Tin	Solder	Vertical	8 A	Female Sockets Header	Thermoplastic	UL94 V-0	Phosphor Bronze	0.134 in	0.571 in
McGill Microwave Systems V70601510000G	300 V	-40 °C	115 °C	0.3 in	6	1	Green	6	Through Hole	Tin	Solder	Right Angle	20 A	Female Sockets Header	Thermoplastic	UL94 V-0	Copper	0.138 in		Retention Latches	90 °
McGill Microwave Systems V70632510000G	300 V	-40 °C	115 °C	0.15 in	6	1	Green	6	Through Hole	Tin	Solder	Right Angle	8 A	Female Sockets Header	Thermoplastic	UL94 V-0	Phosphor Bronze	0.134 in	0.268 in	Mating Flange	90 °
McGill Microwave Systems V70652510000G	300 V	-40 °C	115 °C	5.08 mm	6	1	Green	6	Through Hole	Tin	Solder	Right Angle	20 A	Female Sockets Header	Thermoplastic	UL94 V-0	Copper	0.138 in		Mating Flange Retention Latches	90 °
McGill Microwave Systems V70672510000G	300 V	-40 °C	115 °C	0.197 in	6	1	Green	6	Through Hole	Tin	Solder	Right Angle	10 A	Female Sockets Header	Thermoplastic	UL94 V-0	Phosphor Bronze	0.138 in	0.425 in	Mating Flange Retention Latches	90 °
McGill Microwave Systems V706A2500000G	300 V	-40 °C	115 °C	0.295 in	6	1	Green	6	Through Hole	Tin	Solder	Vertical	10 A	Female Sockets Header	Thermoplastic	UL94 V-0	Phosphor Bronze	0.138 in	0.748 in	Mating Flange Retention Latches
