smpm Series

Catalog

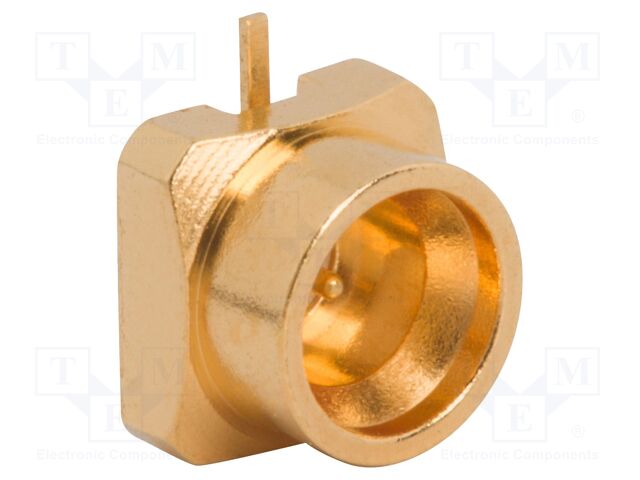

CONNECTOR: COAXIAL; SOCKET; MALE; SMPM; THT; ON PCBS; STRAIGHT; 50Ω

Part	Connector Type	Number of Ports	Connector Style	Shield Termination	Housing Color	Frequency - Max	Center Contact Material	Contact Termination	Features	Fastening Type	Impedance	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Dielectric Material	Body Finish	Mating Cycles	Body Material	Cable Group Diameter (Default)	Cable Group	Cable Group Diameter (Semi Rigid)	Mounting Feature	Includes	Includes Total Count
McGill Microwave Systems 925-137J-51P	Jack Male Pin	1	SMPM	Solder	Gold	40 Gbps	Beryllium Copper	Solder	Smooth Bore	Snap-On	50 Ohm	Through Hole
McGill Microwave Systems 925-139J-51P	Jack Male Pin	1	SMPM	Solder	Gold	40 Gbps	Beryllium Copper	Solder	Smooth Bore	Snap-On	50 Ohm	Right Angle Through Hole
McGill Microwave Systems 925-204J-51PT	Jack Male Pin	1	SMPM	Solder	Gold	10 GHz	Brass	Solder	Full Detent	Snap-On	50 Ohm	Surface Mount
McGill Microwave Systems 925-168J-51PT	Jack Male Pin	1	SMPM	Solder	Gold	6000 MHz	Beryllium Copper	Solder	Full Detent	Snap-On	50 Ohm	Right Angle Surface Mount	155 °C	-55 °C	Gold	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Gold	100 cycles	Brass
McGill Microwave Systems 925-135J-51S	Jack Male Pin	1	SMPM	Solder	Gold	40 Gbps	Beryllium Copper	Solder		Snap-On	50 Ohm	Panel Mount	165 °C	-65 °C	Gold	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Gold	100 cycles	Brass	0.085 in	RG-405	0.086 in	Bulkhead Front Side Nut	Connector Contact Insulator	3 pcs

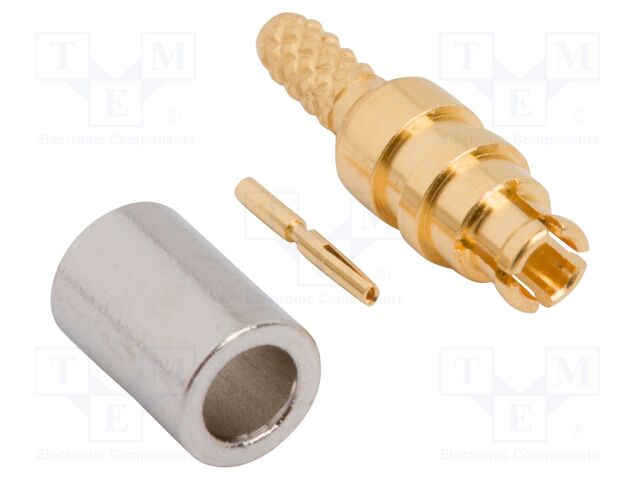

McGill Microwave Systems 925-129C-51S	Female Socket Plug	1	SMPM	Crimp	Gold Silver	6000 MHz	Beryllium Copper	Solder		Snap-On	50 Ohm	Free Hanging (In-Line)	165 °C	-65 °C	Gold	Polytetrafluoroethylene (PTFE)	Gold Nickel	100 cycles	Beryllium Copper Brass		196 RG-178			Connector Contact Ferrule	3 pcs
McGill Microwave Systems 925-136J-51S	Jack Male Pin	1	SMPM	Crimp	Silver	6000 MHz	Beryllium Copper	Solder	Full Detent	Snap-On	50 Ohm	Free Hanging (In-Line)									178A 178B 196 196A RG-178
McGill Microwave Systems 925-118C-51S	Female Socket Plug	1	SMPM	Solder	Gold	40 Gbps	Beryllium Copper	Solder		Snap-On	50 Ohm	Free Hanging (In-Line)	165 °C	-65 °C	Gold	Polytetrafluoroethylene (PTFE)	Gold	100 cycles	Beryllium Copper	0.085 in	RG-405	0.086 in		Connector Contact Insulator	3 pcs
