AD8476 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
LOW POWER, UNITY GAIN FULLY DIFFERENTIAL AMPLIFIER & ADC DRIVER
| Part | Number of Circuits | Current - Supply | Amplifier Type | Voltage - Supply Span (Max) | Slew Rate | Voltage - Supply Span (Min) | -3db Bandwidth | Current - Output / Channel | Output Type | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) | Package Length | Package Name | Package Width | Mounting Type | Board Type | Current - Supply (Main IC) | Supplied Contents | Supply Configuration | Voltage - Supply (Dual) Maximum (Magnitude) | Voltage - Supply (Single) Minimum | Voltage - Supply (Single) Maximum | Voltage - Supply (Dual) Minimum (Magnitude) | Channels per IC (Single) | Channels per IC (Type) | Channels per IC (Count) | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 1 | 330 µA | Differential | 18 V | 10 V/µs | 3 V | 5 MHz | 35 mA | Differential Rail-to-Rail | 16-WFQFN Exposed Pad CSP | 125 °C | -40 °C | 3 mm | 16-LFCSP-WQ | 3 mm | Surface Mount | |||||||||||||
Analog Devices Inc./Maxim Integrated | 1 | 330 µA | Differential | 18 V | 10 V/µs | 3 V | 5 MHz | 35 mA | Differential Rail-to-Rail | 16-WFQFN Exposed Pad CSP | 125 °C | -40 °C | 3 mm | 16-LFCSP-WQ | 3 mm | Surface Mount | |||||||||||||
 Analog Devices Inc./Maxim Integrated | 1 | 330 µA | Differential | 18 V | 10 V/µs | 3 V | 5 MHz | 35 mA | Differential Rail-to-Rail | 125 °C | -40 °C | 0.118 in | 8-MSOP 8-TSSOP 8-MSOP | 3 mm | Surface Mount | ||||||||||||||
Analog Devices Inc./Maxim Integrated | 1 | 330 µA | Differential | 18 V | 10 V/µs | 3 V | 5 MHz | 35 mA | Differential Rail-to-Rail | 16-WFQFN Exposed Pad CSP | 125 °C | -40 °C | 3 mm | 16-LFCSP-WQ | 3 mm | Surface Mount | |||||||||||||
Analog Devices Inc./Maxim Integrated | 1 | 330 µA | Differential | 18 V | 10 V/µs | 3 V | 5 MHz | 35 mA | Differential Rail-to-Rail | 125 °C | -40 °C | 0.118 in | 8-MSOP 8-TSSOP 8-MSOP | 3 mm | Surface Mount | ||||||||||||||
 Analog Devices Inc./Maxim Integrated | 1 | 330 µA | Differential | 18 V | 10 V/µs | 3 V | 5 MHz | 35 mA | Differential Rail-to-Rail | 16-WFQFN Exposed Pad CSP | 125 °C | -40 °C | 3 mm | 16-LFCSP-WQ | 3 mm | Surface Mount | |||||||||||||
Analog Devices Inc./Maxim Integrated | 1 | 330 µA | Differential | 18 V | 10 V/µs | 3 V | 5 MHz | 35 mA | Differential Rail-to-Rail | 125 °C | -40 °C | 0.118 in | 8-MSOP 8-TSSOP 8-MSOP | 3 mm | Surface Mount | ||||||||||||||
Analog Devices Inc./Maxim Integrated | 1 | 330 µA | Differential | 18 V | 10 V/µs | 3 V | 5 MHz | 35 mA | Differential Rail-to-Rail | 125 °C | -40 °C | 0.118 in | 8-MSOP 8-TSSOP 8-MSOP | 3 mm | Surface Mount | ||||||||||||||
 Analog Devices Inc./Maxim Integrated | 1 | 330 µA | Differential | 18 V | 10 V/µs | 3 V | 5 MHz | 35 mA | Differential Rail-to-Rail | 125 °C | -40 °C | 0.118 in | 8-MSOP 8-TSSOP 8-MSOP | 3 mm | Surface Mount | ||||||||||||||

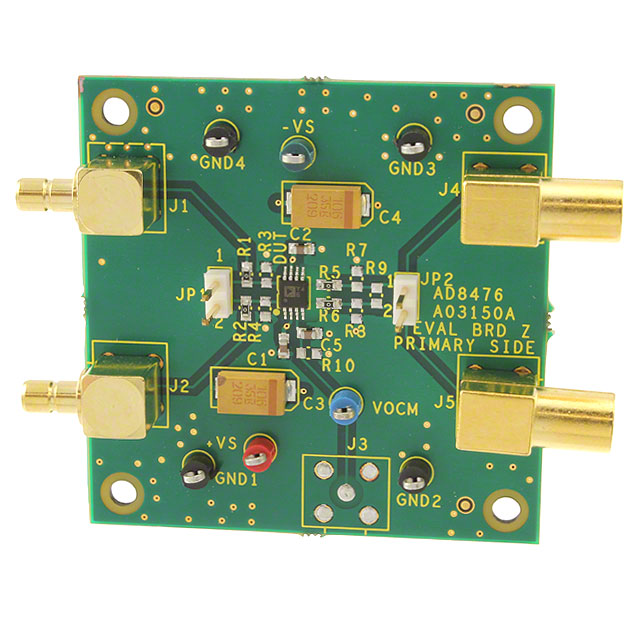

 Analog Devices Inc./Maxim Integrated | Differential | 10 V/µs | 6 MHz | 35 mA | Differential Rail-to-Rail | Fully Populated | 0.00033 µA | Board(s) | Dual Single | 9 V | 3 V | 18 V | 1.5 V | 1 | Single | 1 | Board | AD8476 |
