ADN4622 Series

Catalog

5.7 KV RMS/1.5 KV RMS, QUAD-CHANNEL LVDS 2.5 GIGABIT ISOLATORS (2 REVERSE CHANNELS)

Part	Inputs - Side 2	Inputs - Side 1	Package Length	Package Name	Package Width	Mounting Type	Propagation Delay tpHL (Max)	Propagation Delay tpLH (Max)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Minimum)	Common Mode Transient Immunity (Min)	Rise / Fall Time (Typ)	Rise / Fall Time (Max)	Package / Case	Isolated Power	Number of Channels	Type	Operating Temperature (Max)	Operating Temperature (Min)	Channel Type	Data Rate	Technology	Voltage - Isolation
Analog Devices Inc./Maxim Integrated ADN4622BCPZ	2	2	5 mm	32-LFCSP	5 mm	Surface Mount	2.8 ns	2.8 ns	1.9 V	3 V	3.6 V	1.7 V	40 kV/µs	180 ps	180 ps	32-WFQFN Exposed Pad CSP	Yes	4	LVDS	125 °C	-40 °C	Unidirectional	2.5 Gbps	Magnetic Coupling	5.7 kV
Analog Devices Inc./Maxim Integrated ADN4622BCPZ-RL	2	2	5 mm	32-LFCSP	5 mm	Surface Mount	2.8 ns	2.8 ns	1.9 V	3 V	3.6 V	1.7 V	40 kV/µs	180 ps	180 ps	32-WFQFN Exposed Pad CSP	Yes	4	LVDS	125 °C	-40 °C	Bidirectional	2.5 Gbps	Magnetic Coupling	5.7 kV

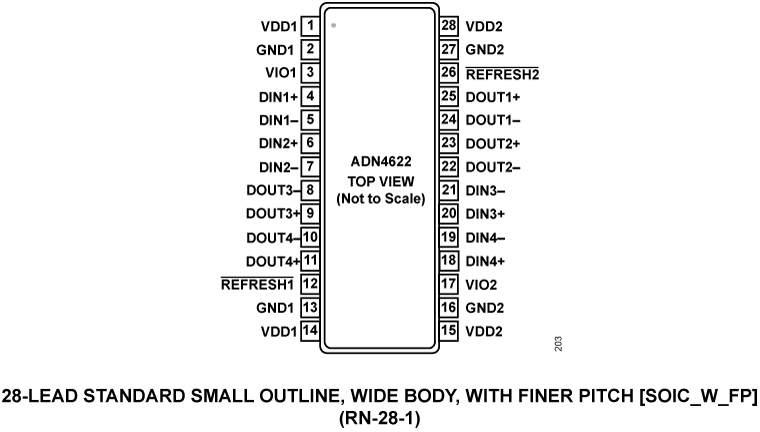

Analog Devices Inc./Maxim Integrated ADN4622BRNZ-RL	2	2	0.295 in	28-BSSOP 28-SOIC-W-FP	7.5 mm	Surface Mount	2.8 ns	2.8 ns	1.9 V	3 V	3.6 V	1.7 V	40 kV/µs	180 ps	180 ps		Yes	4	LVDS	125 °C	-40 °C	Unidirectional	2.5 Gbps	Magnetic Coupling	8 kV
Analog Devices Inc./Maxim Integrated ADN4622BRNZ	2	2	0.295 in	28-BSSOP 28-SOIC-W-FP	7.5 mm	Surface Mount	2.8 ns	2.8 ns	1.9 V	3 V	3.6 V	1.7 V	40 kV/µs	180 ps	180 ps		Yes	4	LVDS	125 °C	-40 °C	Unidirectional	2.5 Gbps	Magnetic Coupling	8 kV
