ADG787 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

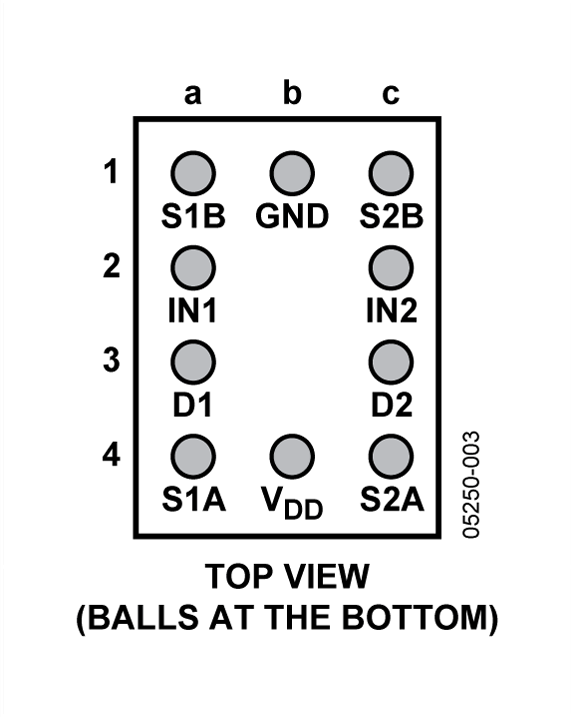

2.5 Ω CMOS LOW POWER DUAL 2:1 MUX/DEMUX USB 1.1 SWITCH

Part	Switch Circuit Type	-3db Bandwidth	Charge Injection	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Current - Leakage (Typical)	Package Name	Package Length	Package Width	Multiplexer Inputs	Demultiplexer Outputs	Mounting Type	Switch Time Ton (Max)	Switch Time Toff (Max)	On-State Resistance (Max)	Number of Circuits	Voltage - Supply, Single (V+) (Minimum)	Voltage - Supply, Single (V+) (Maximum)	Channel-to-Channel Matching (ΔRon)	Crosstalk	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case
Analog Devices Inc./Maxim Integrated ADG787BCBZ-REEL	SPDT	145 MHz	14 pC	16 pF	16 pF	50 pA	10-WLCSP	2 mm	1.5 mm	2	1	Surface Mount	19 ns	5 ns	3 Ohm	2	1.8 V	5.5 V	20 mOhm	-110 dB	85 °C	-25 °C	10-UFBGA WLCSP
Analog Devices Inc./Maxim Integrated ADG787BRMZ	SPDT	145 MHz	14 pC	16 pF	16 pF	50 pA	10-MSOP 10-TFSOP	0.118 in	3 mm	2	1	Surface Mount	19 ns	5 ns	3 Ohm	2	1.8 V	5.5 V	20 mOhm	-110 dB	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADG787BCBZ-REEL7	SPDT	145 MHz	14 pC	16 pF	16 pF	50 pA	10-WLCSP	2 mm	1.5 mm	2	1	Surface Mount	19 ns	5 ns	3 Ohm	2	1.8 V	5.5 V	20 mOhm	-110 dB	85 °C	-20 °C	10-UFBGA WLCSP
Analog Devices Inc./Maxim Integrated ADG787BRMZ-REEL	SPDT	145 MHz	14 pC	16 pF	16 pF	50 pA	10-MSOP 10-TFSOP	0.118 in	3 mm	2	1	Surface Mount	19 ns	5 ns	3 Ohm	2	1.8 V	5.5 V	20 mOhm	-110 dB	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADG787BCPZ-REEL	SPDT	145 MHz	14 pC	16 pF	16 pF	50 pA	10-LFCSP-WD	3 mm	3 mm	2	1	Surface Mount	19 ns	5 ns	3 Ohm	2	1.8 V	5.5 V	20 mOhm	-110 dB	85 °C	-40 °C	10-VFDFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG787BCBZ-500RL7	SPDT	145 MHz	14 pC	16 pF	16 pF	50 pA	10-WLCSP	2 mm	1.5 mm	2	1	Surface Mount	19 ns	5 ns	3 Ohm	2	1.8 V	5.5 V	20 mOhm	-110 dB	85 °C	-25 °C	10-UFBGA WLCSP
Analog Devices Inc./Maxim Integrated ADG787BCPZ-500RL7	SPDT	145 MHz	14 pC	16 pF	16 pF	50 pA	10-LFCSP-WD	3 mm	3 mm	2	1	Surface Mount	19 ns	5 ns	3 Ohm	2	1.8 V	5.5 V	20 mOhm	-110 dB	85 °C	-40 °C	10-VFDFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG787BRMZ-500RL7	SPDT	145 MHz	14 pC	16 pF	16 pF	50 pA	10-MSOP 10-TFSOP	0.118 in	3 mm	2	1	Surface Mount	19 ns	5 ns	3 Ohm	2	1.8 V	5.5 V	20 mOhm	-110 dB	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADG787BCB-500RL7	SPDT	145 MHz	14 pC	16 pF	16 pF	50 pA	10-WLCSP	2 mm	1.5 mm	2	1	Surface Mount	19 ns	5 ns	3 Ohm	2	1.8 V	5.5 V	20 mOhm	-110 dB	85 °C	-25 °C	10-UFBGA WLCSP
