031-21 Series

Catalog

CONN BNC PLUG STR 50 OHM SOLDER

Part	Connector Type	Number of Ports	Impedance	Mounting Type	Fastening Type	Ingress Protection	Connector Style	Shield Termination	Frequency - Max	Contact Termination	Housing Color	Cable Group	Center Contact Material	Dielectric Material	Insertion Loss	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Voltage Rating	Body Material	Includes	Includes Total Count	Mating Cycles	Body Finish	Adapter Type	Convert From (Adapter End)	Style	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Conversion Type	Center Gender	Adapter Series
McGill Microwave Systems 031-21	Male Pin Plug	1	50 Ohm	Free Hanging (In-Line)	Bayonet Lock	Weatherproof	BNC	Clamp	4 GHz	Solder	Silver	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	-65 °C	165 °C	Silver	500 V	Brass	Braid Clamp Clamp Connector Contact Gasket Insulator Washer	7 pcs	500 cycles	Nickel

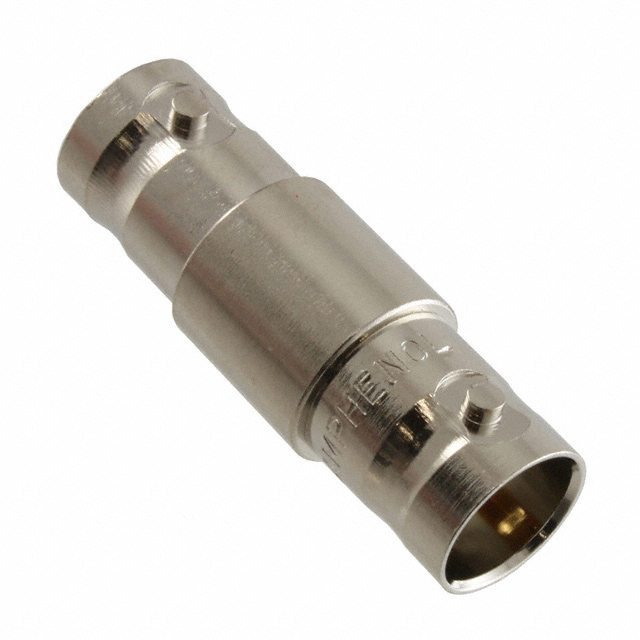

McGill Microwave Systems 031-219-75			75 Ohm	Free Hanging (In-Line)	Bayonet Lock				4 GHz				Phosphor Bronze	Polytetrafluoroethylene (PTFE)		-65 °C	165 °C	Gold		Brass				Nickel	Jack to Jack	BNC Jack Female Socket	Straight	Female Socket	BNC Jack	Same Series	Female	BNC to BNC
McGill Microwave Systems 031-218-75RFX			75 Ohm	Free Hanging (In-Line)	Bayonet Lock				4 GHz				Beryllium Copper	Polyoxymethylene (POM) Acetal		-40 °C	85 °C	Gold		Brass			500 cycles	Nickel	Plug to Plug	BNC Plug Male Pin	Straight	Male Pin	BNC Plug	Same Series	Male	BNC to BNC
McGill Microwave Systems 031-212-1005	Male Pin Plug	1	50 Ohm	Free Hanging (In-Line)	Bayonet Lock	Weatherproof	BNC	Clamp	4 GHz	Solder	Silver	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	-65 °C	165 °C	Silver	500 V	Brass	Braid Clamp Clamp Connector Contact Gasket Washer	6 pcs	500 cycles	Nickel
