TJ13 Series

Catalog

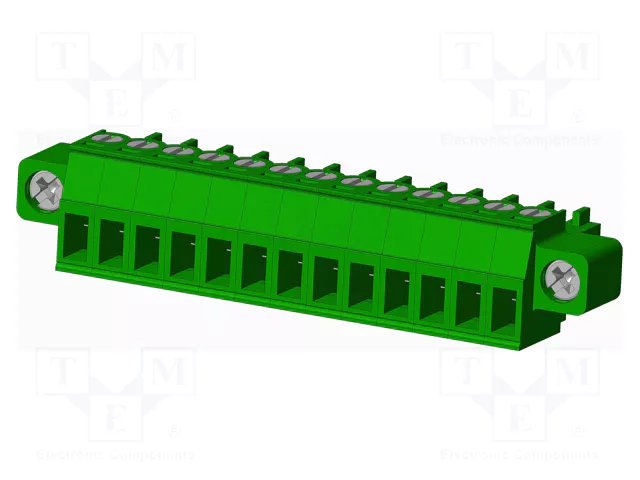

PLUGGABLE TERMINAL BLOCKS 500 TB PLU PLU WF UP

Part	Voltage - UL	Pitch	Current - UL	Number of Levels	Positions Per Level	Plug Wire Entry Angle	Operating Temperature (Min)	Operating Temperature (Max)	Features	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Positions	Mounting Type	Color	Contact Mating Finish	Termination Style	Type	Wire Strip Length (Max)	Wire Strip Length (Min)	Torque - Screw	Insulation Height	Housing Material	Screw Size	Contact Material	Material Flammability Rating	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Current - IEC	Voltage - IEC	Wire Gauge or Range - mm²
McGill Microwave Systems TJ1371070000G	300 V	0.197 in	20 A	1	13	180 °	-40 °C	115 °C	Mating Flange Retention Latches (Non-Wire Side)	24 AWG	12 AWG	13	Free Hanging (In-Line)	Black	Tin	Screw	Female Sockets Plug	8 mm	7 mm	0.56 Nm	0.594 in	Thermoplastic	M3	Copper	UL94 V-0
McGill Microwave Systems TJ1371500000G	300 V	0.197 in	20 A	1	13	180 °	-40 °C	115 °C	Retention Latches (Non-Wire Side)	24 AWG	12 AWG	13	Free Hanging (In-Line)	Green	Tin	Screw	Female Sockets Plug	8 mm	7 mm	0.56 Nm	0.594 in	Thermoplastic	M3	Copper	UL94 V-0	2.5 mm²	0.34 mm²	20 A	300 V
McGill Microwave Systems TJ13A1820000G	300 V	0.295 in	20 A	1	13	180 °	-40 °C	115 °C	Mating Flange Retention Latches (Non-Wire Side)	24 AWG	12 AWG	13	Free Hanging (In-Line)	Gray	Tin	Screw	Female Sockets Plug	8 mm	7 mm	0.56 Nm	0.594 in	Thermoplastic	M3	Copper	UL94 V-0
McGill Microwave Systems TJ1311020000G	300 V	0.138 in	10 A	1	13	180 °	-40 °C	115 °C	Mating Flange	28 AWG	16 AWG	13	Free Hanging (In-Line)	Black	Tin	Screw	Female Sockets Plug	7 mm	6 mm		0.437 in	Thermoplastic	M2	Phosphor Bronze	UL94 V-0			10.5 A	300 V	1.5 mm²
McGill Microwave Systems TJ1301800000G	300 V	0.3 in	20 A	1	13	180 °	-40 °C	115 °C	Retention Latches (Non-Wire Side)	24 AWG	12 AWG	13	Free Hanging (In-Line)	Gray	Tin	Screw	Female Sockets Plug	8 mm	7 mm	0.56 Nm	0.594 in	Thermoplastic	M3	Copper	UL94 V-0
McGill Microwave Systems TJ1371820000G	300 V	0.197 in	20 A	1	13	180 °	-40 °C	115 °C	Mating Flange Retention Latches (Non-Wire Side)	24 AWG	12 AWG	13	Free Hanging (In-Line)	Gray	Tin	Screw	Female Sockets Plug	8 mm	7 mm	0.56 Nm	0.594 in	Thermoplastic	M3	Copper	UL94 V-0	2.5 mm²	0.34 mm²	20 A	300 V
McGill Microwave Systems TJ1311520000G	300 V	0.138 in	10 A	1	13	180 °	-40 °C	115 °C	Mating Flange	28 AWG	16 AWG	13	Free Hanging (In-Line)	Green	Tin	Screw	Female Sockets Plug	7 mm	6 mm		0.437 in	Thermoplastic	M2	Phosphor Bronze	UL94 V-0			10.5 A	300 V	1.5 mm²
McGill Microwave Systems TJ1331520000G	300 V	0.15 in	10 A	1	13	180 °	-40 °C	115 °C	Mating Flange	28 AWG	16 AWG	13	Free Hanging (In-Line)	Green	Tin	Screw	Female Sockets Plug	7 mm	6 mm		0.437 in	Thermoplastic	M2	Phosphor Bronze	UL94 V-0			10.5 A	300 V	1.5 mm²
McGill Microwave Systems TJ1301820000G	300 V	0.3 in	20 A	1	13	180 °	-40 °C	115 °C	Mating Flange Retention Latches (Non-Wire Side)	24 AWG	12 AWG	13	Free Hanging (In-Line)	Gray	Tin	Screw	Female Sockets Plug	8 mm	7 mm	0.56 Nm	0.594 in	Thermoplastic	M3	Phosphor Bronze	UL94 V-0
McGill Microwave Systems TJ1351040000G	300 V	5.08 mm	20 A	1	13	180 °	-40 °C	115 °C	Retention Latches (Non-Wire Side) Strain Relief	24 AWG	12 AWG	13	Free Hanging (In-Line)	Black	Tin	Screw	Female Sockets Plug	8 mm	7 mm	0.56 Nm		Thermoplastic	M3	Copper	UL94 V-0	2.5 mm²	0.34 mm²	20 A	300 V
