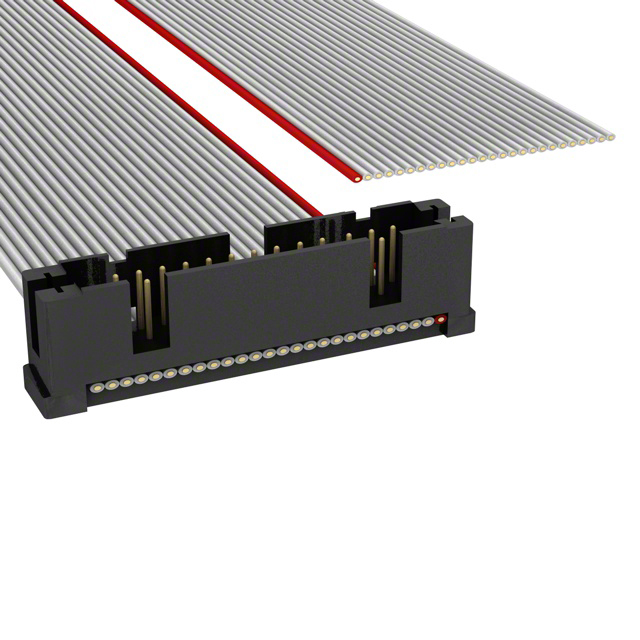

A1KXB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - APK20B/AE20G/X

Part	Features	Pitch - Cable	Pitch - Cable	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Cable Termination	Contact Finish	Length [x]	Length [x]	Color	Number of Positions
TE Connectivity Raychem Cable Protection A1KXB-2036G	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm	20	IDC	Gold	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1KXB-4036G	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm	40	IDC	Gold	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1KXB-1436M	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm	14	IDC	Gold	3 ft	914.4 mm	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1KXB-1436G	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm	14	IDC	Gold	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1KXB-1636G	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm		IDC	Gold	3 ft	914.4 mm		16
TE Connectivity Raychem Cable Protection A1KXB-2636M	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm	26	IDC	Gold	3 ft	914.4 mm	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1KXB-2636G	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm	26	IDC	Gold	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1KXB-6436G	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm	64	IDC	Gold	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1KXB-3436M	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm	34	IDC	Gold	3 ft	914.4 mm	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1KXB-1036G	Polarizing Key	0.05 "	1.27 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	2	0.1 in	2.54 mm	10	IDC	Gold	3 ft	914.4 mm
