767061 Series

Catalog

CONN RCPT 114P SMD PALLAD-NICKEL

Part	Number of Rows	Number of Positions	Contact Finish	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 767061-3	2	114	Palladium-Nickel	Center Strip Contacts Receptacle	Surface Mount	0.64 mm	0.025 in	6 mm	0.236 in	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 767061-6	2	228	Palladium-Nickel	Center Strip Contacts Receptacle	Surface Mount	0.64 mm	0.025 in	6 mm	0.236 in	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.76 Ám	30 Áin

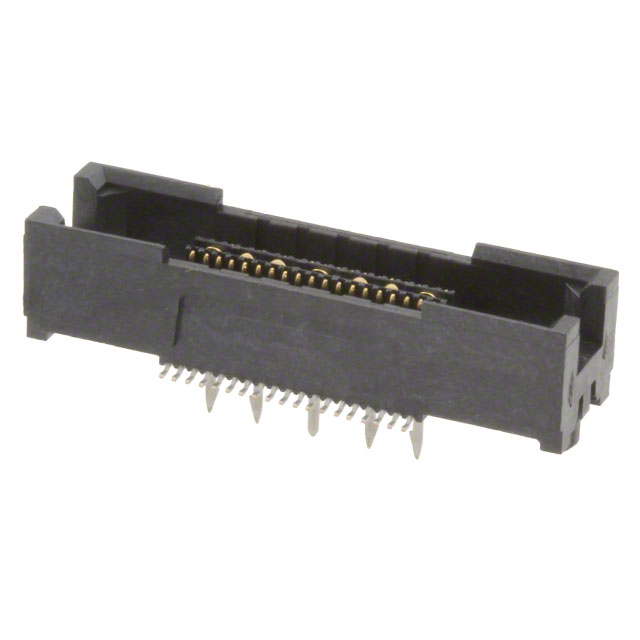

TE Connectivity Raychem Cable Protection 767061-1	2	38	Palladium-Nickel	Center Strip Contacts Receptacle	Surface Mount	0.64 mm	0.025 in	6 mm	0.236 in	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 767061-5	2	190	Palladium-Nickel	Center Strip Contacts Receptacle	Surface Mount	0.64 mm	0.025 in	6 mm	0.236 in	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.76 Ám	30 Áin
