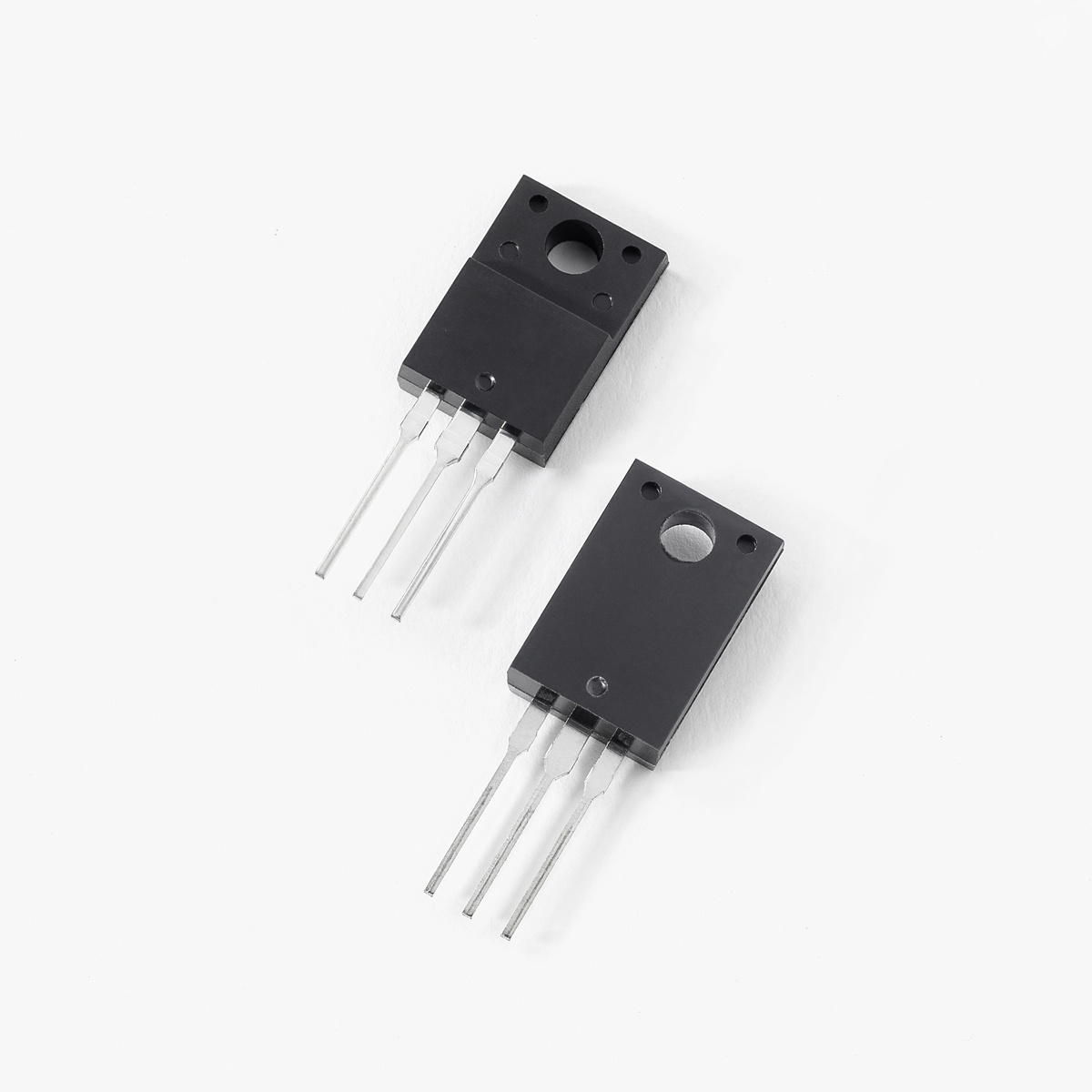

DSTF40100C Series

100V 40A Ultralow Schottky DST _ITO-220A

Catalog

100V 40A Ultralow Schottky DST _ITO-220A

Part	Voltage - Forward (Vf) (Max)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Current - Average Rectified (Io) (per Diode)	Package / Case	Technology	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Diode Pair Count	Diode Configuration	Mounting Type	Current - Reverse Leakage	Voltage - DC Reverse (Vr) (Max)	Package Name
LITTELFUSE DSTF40100C	750 mV	150 °C	-55 °C	20 A	Isolated Tab TO-220-3 Full Pack	Schottky	500 ns	200 mA	1 pair	Common Cathode	Through Hole	1 mA	100 V	ITO-220AB

Catalog

100V 40A Ultralow Schottky DST _ITO-220A

Description

Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products. It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
