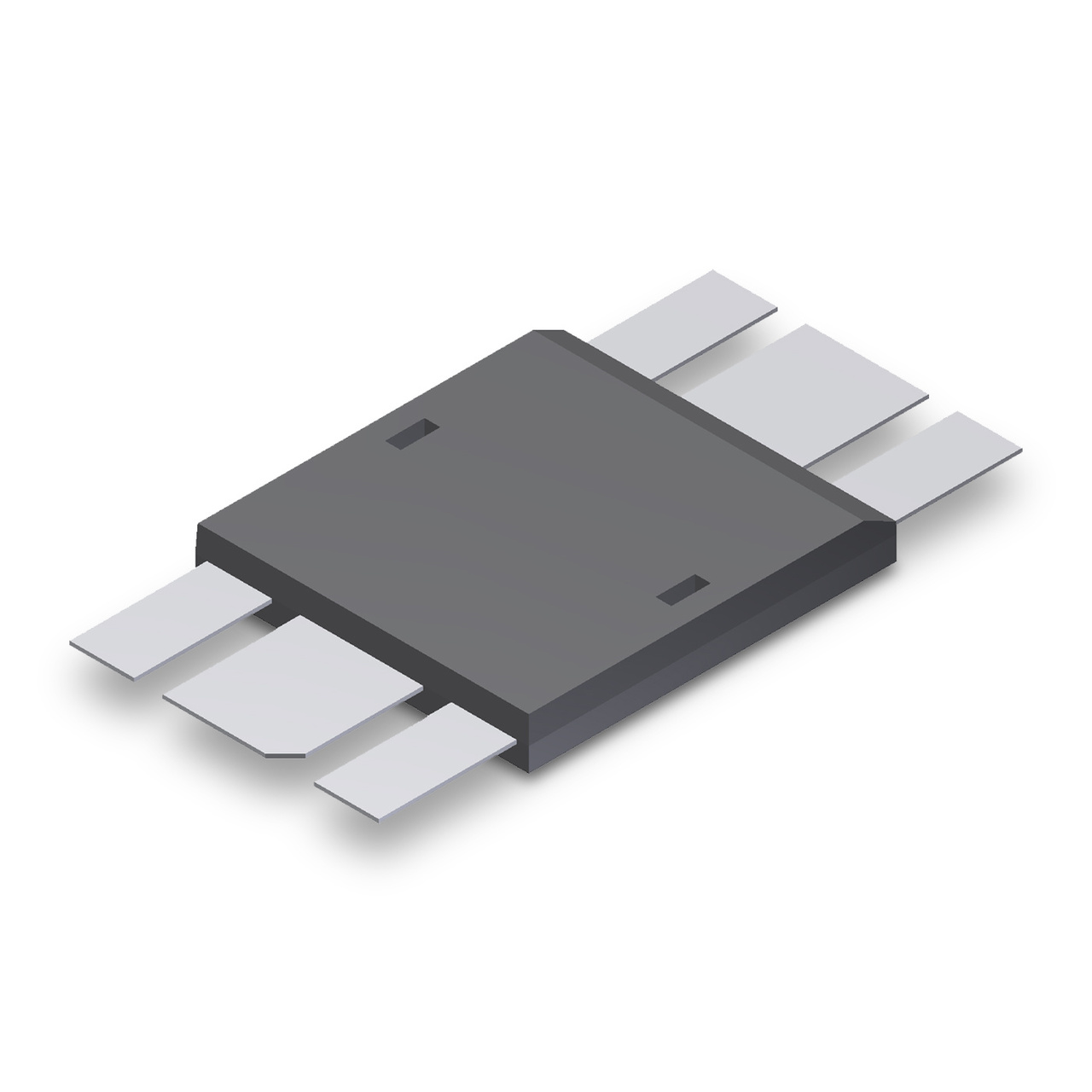

IXFZ520N075T2 Series
Manufacturer: LITTELFUSE
Beta
⌘K
DISCMSFT NCHTRENCHGATE-GEN2 DE475
| Part | Package Name | Mounting Type | Power Dissipation (Max) | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Package / Case | Vgs (Max) | Rds On (Max) | Current - Continuous Drain (Id) (Tc) | Gate Charge (Max) | Technology | Vgs(th) (Max) | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | DE475 | Surface Mount | 600 W | N-Channel | 10 V | 75 V | 6-SMD Flat Leads | 20 V | 1.3 mOhm | 465 A | 545 nC | MOSFET (Metal Oxide) | 4 V | -55 °C | 175 °C |
