RT07128 Series

Catalog

JAM NUT RECEPTACLE, FEMALE, WITH

Part	Shell Size - Insert Length	Shell Size - Insert Width	Note	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Type	Shielding	Connector Type	Contact Size	Contact Type	Housing Color	Orientation	Contact Shape	Fastening Type	Insert Material	Material Flammability Rating	Mounting Feature	Includes Total Count	Includes	Shell Material	Mounting Type	Features	Shell Finish	Ingress Protection Description	Ingress Protection IP Rating	Termination	Current Rating	Voltage Rating	Voltage Rating (Type)	Contact Finish Thickness - Mating	Color	Primary Material	Contact Finish - Mating
McGill Microwave Systems RT07128SNHEC	12 mm	8 mm	Contacts Not Included	-40 °C	105 °C	8	For Female Sockets	Shielded	Receptacle Housing	16 S	Crimp	Silver	N (Normal)	Circular	Bayonet Lock	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	3 pcs	Connector Nut O-Ring	Zinc Alloy	Panel Mount	Backshell	Nickel	Dust Tight Waterproof	IP67

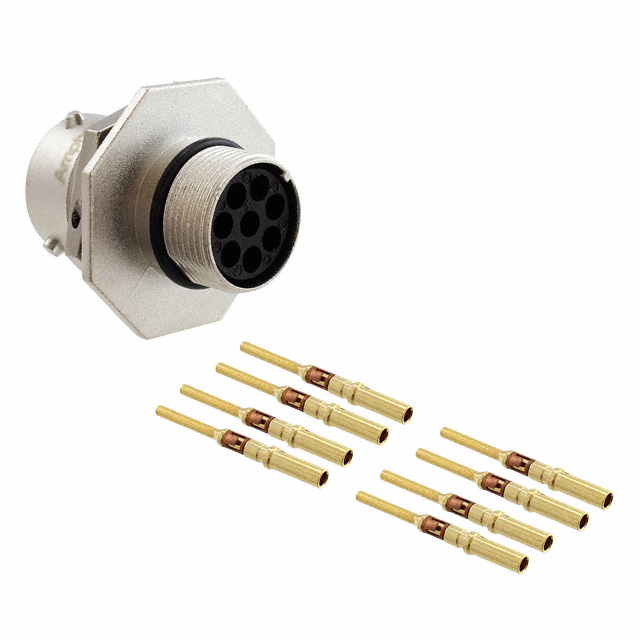

McGill Microwave Systems RT07128PNH-K	12 mm	8 mm		-40 °C	105 °C	8			Male Pins Receptacle				N (Normal)		Bayonet Lock			Bulkhead Front Side Nut			Zinc Die Cast	Panel Mount		Nickel	Dust Tight Waterproof	IP67	Crimp	13 A	250 V	DC	Flash	Silver	Metal	Gold
McGill Microwave Systems RT07128PNHEC03R	12 mm	8 mm	Contacts Not Included	-40 °C	125 °C	8	For Male Pins	Shielded	Receptacle Housing	16 S	Crimp	Silver	N (Normal)	Circular	Bayonet Lock	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	3 pcs	Connector Nut O-Ring	Zinc Alloy	Panel Mount	Backshell	Nickel	Dust Tight Waterproof	IP67

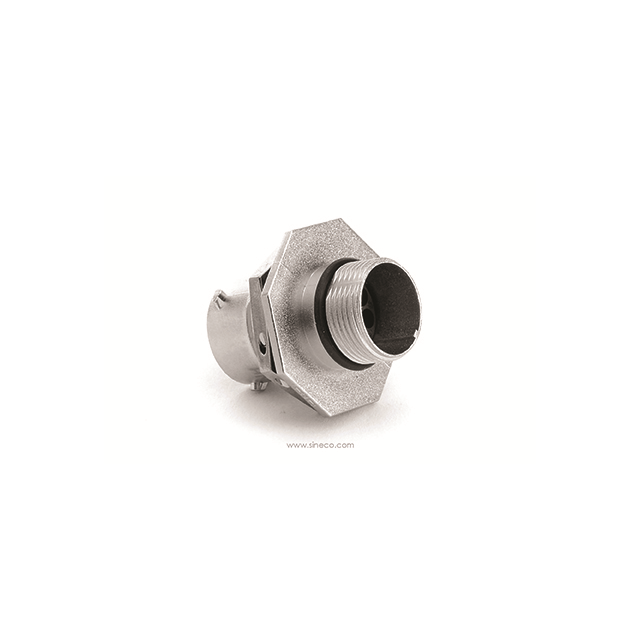

McGill Microwave Systems RT07128SNH03	12 mm	8 mm	Contacts Not Included	-40 °C	125 °C	8	For Female Sockets	Shielded	Receptacle Housing	16 S	Crimp	Silver	N (Normal)	Circular	Bayonet Lock	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	4 pcs	Connector Gasket Nut O-Ring	Zinc Alloy	Panel Mount		Nickel	Dust Tight Waterproof	IP67
McGill Microwave Systems RT07128PNHEC	12 mm	8 mm	Contacts Not Included	-40 °C	105 °C	8	For Male Pins	Shielded	Receptacle Housing	16 S	Crimp	Silver	N (Normal)	Circular	Bayonet Lock	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut	3 pcs	Connector Nut O-Ring	Zinc Alloy	Panel Mount	Backshell	Nickel	Dust Tight Waterproof	IP67

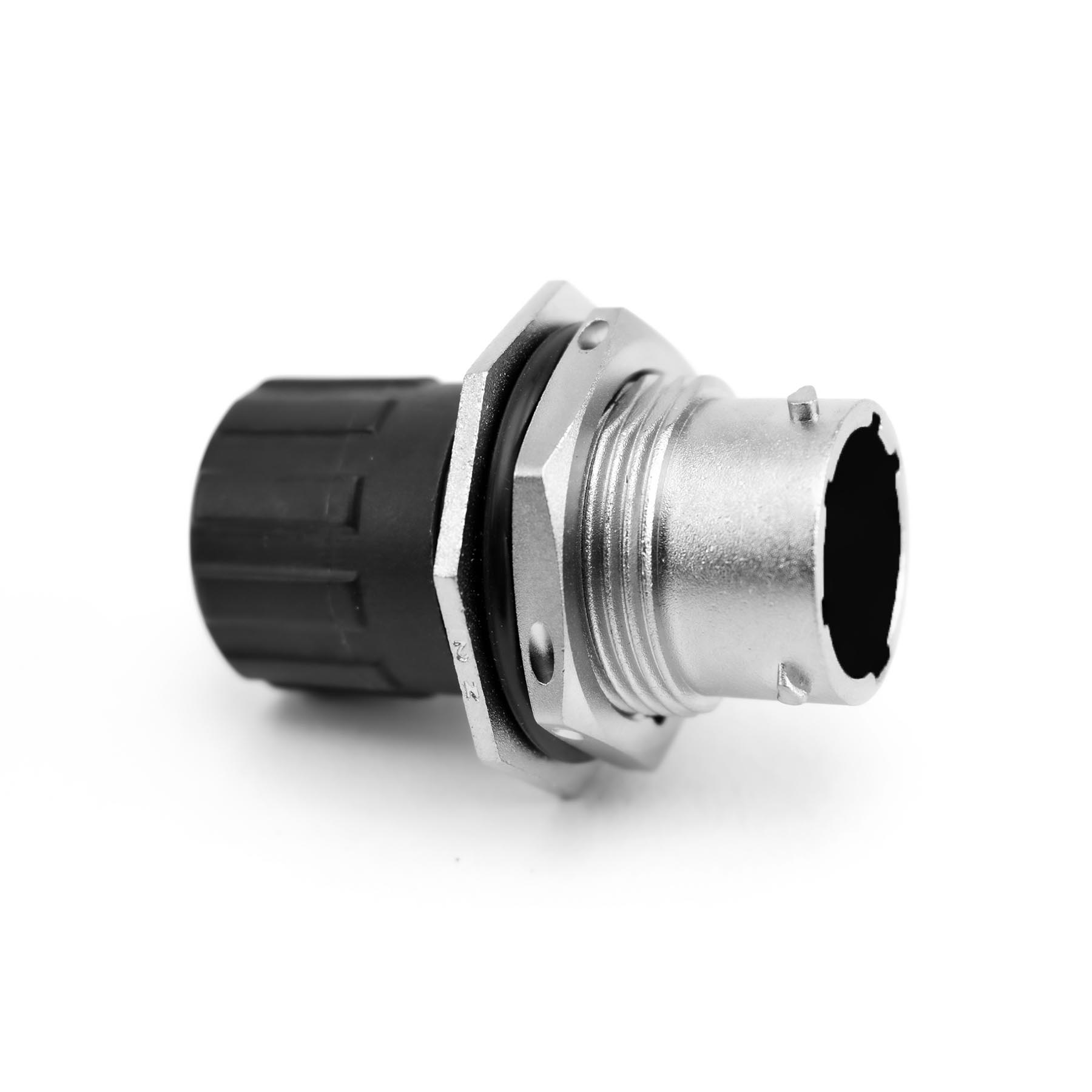

McGill Microwave Systems RT07128PNHEC03	12 mm	8 mm	Contacts Not Included	-40 °C	125 °C	8	For Male Pins	Shielded	Receptacle Housing	16 S	Crimp	Silver	N (Normal)	Circular	Bayonet Lock	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut			Zinc Alloy	Panel Mount	Cap (Cover)	Nickel	Dust Tight Waterproof	IP67							Metal
McGill Microwave Systems RT07128PNH	12 mm	8 mm	Contacts Not Included	-40 °C	105 °C	8	For Male Pins	Shielded	Receptacle Housing	16 S	Crimp	Silver	N (Normal)	Circular	Bayonet Lock	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut			Zinc Alloy	Panel Mount		Nickel	Dust Tight Waterproof	IP67

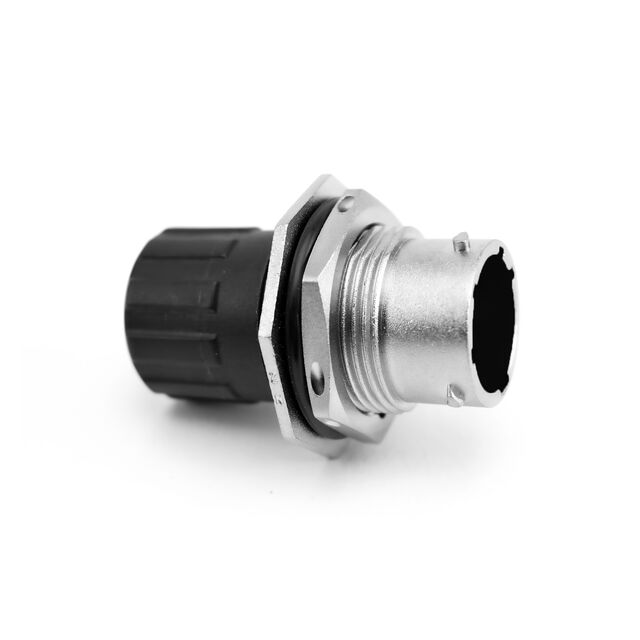

McGill Microwave Systems RT07128PNHECR	12 mm	8 mm	Contacts Not Included	-40 °C	105 °C	8	For Male Pins	Shielded	Receptacle Housing	16 S	Crimp	Silver	N (Normal)	Circular	Bayonet Lock	Thermoplastic	UL94 V-0	Bulkhead Front Side Nut			Zinc Alloy	Panel Mount	Cap (Cover)	Nickel	Dust Tight Waterproof	IP67							Metal
