1116-60 Series

Catalog

2.4MM FEMALE TO SMPM MALE, SB, F

Part	Adapter Type	Mounting Type	Features	Fastening Type	Style	Conversion Type	Adapter Series	Adapter Series Size	Impedance	Frequency - Max	Center Gender	Convert From (Adapter End)	Convert To (Adapter End) Size	Convert To (Adapter End) Series	Convert To (Adapter End) Type	Convert To (Adapter End)	Convert To (Adapter End) Model	Convert To (Adapter End) Gender	Mounting Feature	Center Contact Plating	Center Contact Material	Mating Cycles	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Convert From (Adapter End) Jack Size	Convert From (Adapter End) Type
McGill Microwave Systems 1116-6096	Plug to Jack	Panel Mount	Smooth Bore	Snap-On Threaded	Straight	Between Series	SMPM	2.4 mm	50 Ohm	50 GHz	Female Male	Male Pin SMPM Plug	2.4 mm	APC-2.4 OS-50	2.4mm (APC-2.4 OS-50) Jack Female Socket Jack	Female Socket Jack	APC-2.4 OS-50	Female Socket	Flange	Gold	Beryllium Copper	500 cycles	Stainless Steel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 1116-6094	Plug to Jack	Panel Mount	Smooth Bore	Snap-On Threaded	Straight	Between Series	SMP	2.4 mm	50 Ohm	40 Gbps	Female Male	Male Pin SMP Plug	2.4 mm	APC-2.4 OS-50	2.4mm (APC-2.4 OS-50) Jack Female Socket Jack	Female Socket Jack	APC-2.4 OS-50	Female Socket	Flange	Gold	Beryllium Copper	500 cycles	Stainless Steel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 1116-6093	Plug to Jack	Panel Mount	Full Detent	Snap-On Threaded	Straight	Between Series	SMP	2.4 mm	50 Ohm	40 Gbps	Female Male	Male Pin SMP Plug	2.4 mm	APC-2.4 OS-50	2.4mm (APC-2.4 OS-50) Jack Female Socket Jack	Female Socket Jack	APC-2.4 OS-50	Female Socket	Flange	Gold	Beryllium Copper	500 cycles	Stainless Steel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 1116-6095	Plug to Jack	Panel Mount	Full Detent	Snap-On Threaded	Straight	Between Series	SMPM	2.4 mm	50 Ohm	50 GHz	Female Male	Male Pin SMPM Plug	2.4 mm	APC-2.4 OS-50	2.4mm (APC-2.4 OS-50) Jack Female Socket Jack	Female Socket Jack	APC-2.4 OS-50	Female Socket	Flange	Gold	Beryllium Copper	500 cycles	Stainless Steel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)

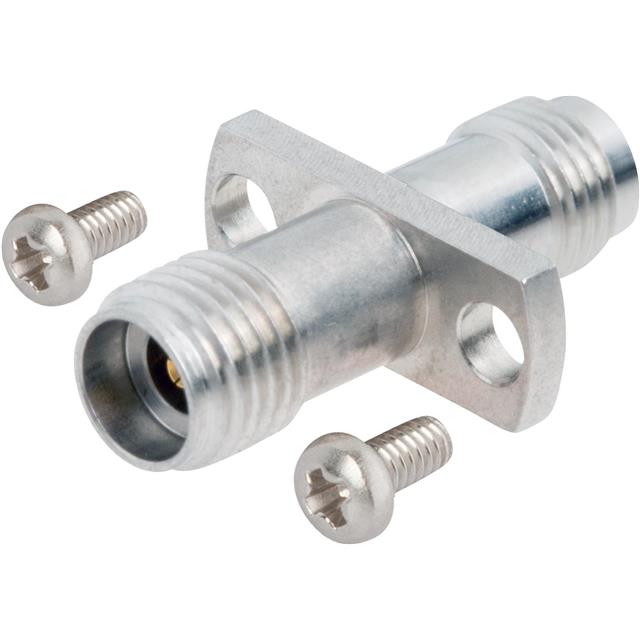

McGill Microwave Systems 1116-6092	Jack to Jack	Panel Mount		Threaded	Straight	Between Series		2.4 mm 2.92 mm	50 Ohm	40 Gbps	Female		2.92 mm		Jack	Female Socket Jack	OS-2.9	Female Socket	Flange	Gold	Beryllium Copper	500 cycles	Stainless Steel	-65 °C	165 °C		2.4 mm	APC-2.4 Female Socket OS-50
McGill Microwave Systems 1116-6097	Jack to Jack	Panel Mount		Threaded	Straight	Same Series		2.4 mm	50 Ohm	50 GHz	Female		2.4 mm	APC-2.4 OS-50	2.4mm (APC-2.4 OS-50) Jack Female Socket Jack	Female Socket Jack	APC-2.4 OS-50	Female Socket	Flange	Gold	Beryllium Copper	500 cycles	Stainless Steel	-65 °C	165 °C		2.4 mm	APC-2.4 Female Socket OS-50
