ADGM1304 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
0 HZ/DC TO 14 GHZ, SINGLE-POLE, FOUR-THROW MEMS SWITCH WITH INTEGRATED DRIVER
| Part | IIP3 | Test Frequency | RF Type | Operating Temperature (Max) | Operating Temperature (Min) | Package Name | Package Width | Package Length | Frequency Range (Max) | Frequency Range (Min) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Impedance | Insertion Loss | Mounting Type | Circuit | Isolation | Package / Case | Supplied Contents | For Use With/Related Products | Frequency (Max) | Frequency (Min) | Type | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 69 dBm | 6 GHz | General Purpose | 85 °C | 0 °C | 24-LFCSP | 4 mm | 5 mm | 14 GHz | 0 Hz | 3.3 V | 3.1 V | 50 Ohm | 0.9 dB | Surface Mount | SP4T | 19 dB | 24-VFQFN Exposed Pad | |||||||

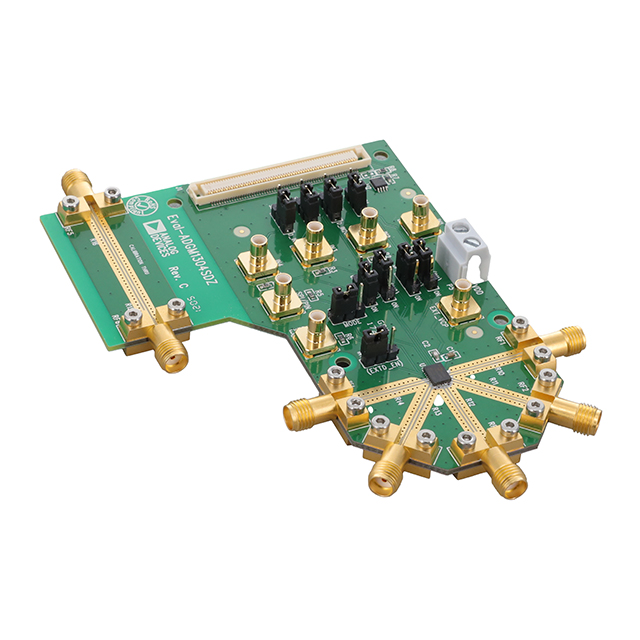

 Analog Devices Inc./Maxim Integrated | Board(s) | ADGM1304 | 14 GHz | 0 Hz | SP4T Switch | ADGM1304 | Board | ||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 69 dBm | 6 GHz | General Purpose | 85 °C | 0 °C | 24-LFCSP | 4 mm | 5 mm | 14 GHz | 0 Hz | 3.3 V | 3.1 V | 50 Ohm | 0.4 dB | Surface Mount | SP4T | 19 dB | 24-VFQFN Exposed Pad |
