Q-3B01T0 Series

Catalog

CBL ASSY SMA-NTYPE PLG-JACK 8.2'

Part	2nd Connector	Style	1st Connector Mounting Type	2nd Contact Gender	1st Contact Gender	Features	2nd Connector Mounting Feature	Color	2nd Connector Mounting Type	Cable Type	Length (ft)	Length	Connector Impedance	Frequency - Max	1st Connector	Overall Impedance	Cable Impedance
McGill Microwave Systems Q-3B01T00052.5M	N-Type Jack	N-Type SMA	Free Hanging (In-Line)	Female	Male	Shielded	Bulkhead - Front Side Nut	Copper	Panel Mount	316 RG	8.2 ft	98.4 in	50 Ohms	3 GHz	SMA Plug	50 Ohms	50 Ohms

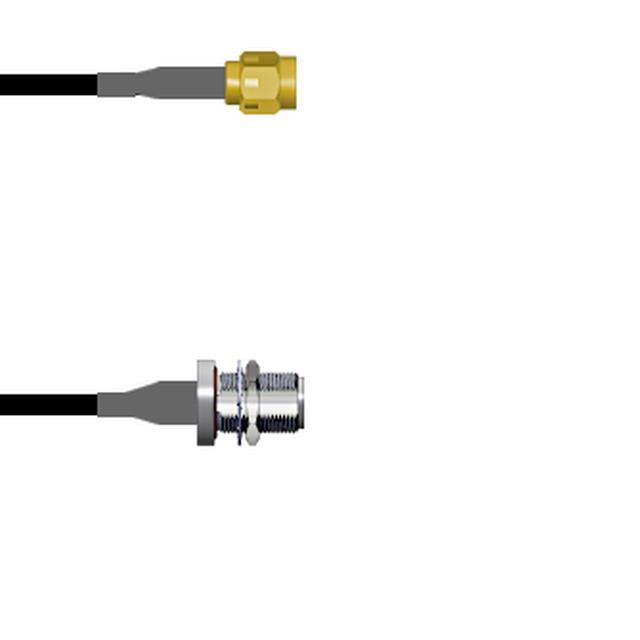

McGill Microwave Systems Q-3B01T0003002M	N-Type Jack	N-Type SMA	Free Hanging (In-Line)	Female	Male	Shielded	Bulkhead - Front Side Nut	Black	Panel Mount	174 RG	6.6 ft		50 Ohms	1 GHz	SMA Plug	50 Ohms	50 Ohms
McGill Microwave Systems Q-3B01T00032.5M	N-Type Jack	N-Type SMA	Free Hanging (In-Line)	Female	Male	Shielded	Bulkhead - Front Side Nut	Black	Panel Mount	174 RG	8.2 ft	98.4 in	50 Ohms	1 GHz	SMA Plug	50 Ohms	50 Ohms
McGill Microwave Systems Q-3B01T0005003M	N-Type Jack	N-Type SMA	Free Hanging (In-Line)	Female	Male	Shielded	Bulkhead - Front Side Nut	Copper	Panel Mount	316 RG		118.1 in	50 Ohms	3 GHz	SMA Plug	50 Ohms	50 Ohms
McGill Microwave Systems Q-3B01T00031.5M	N-Type Jack	N-Type SMA	Free Hanging (In-Line)	Female	Male	Shielded	Bulkhead - Front Side Nut	Black	Panel Mount	174 RG	4.9 ft	59.1 in	50 Ohms	1 GHz	SMA Plug	50 Ohms	50 Ohms
McGill Microwave Systems Q-3B01T0005002M	N-Type Jack	N-Type SMA	Free Hanging (In-Line)	Female	Male	Shielded	Bulkhead - Front Side Nut	Copper	Panel Mount	316 RG	6.6 ft		50 Ohms	3 GHz	SMA Plug	50 Ohms	50 Ohms
McGill Microwave Systems Q-3B01T0003003M	N-Type Jack	N-Type SMA	Free Hanging (In-Line)	Female	Male	Shielded	Bulkhead - Front Side Nut	Black	Panel Mount	174 RG		118.1 in	50 Ohms	1 GHz	SMA Plug	50 Ohms	50 Ohms
