320861 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

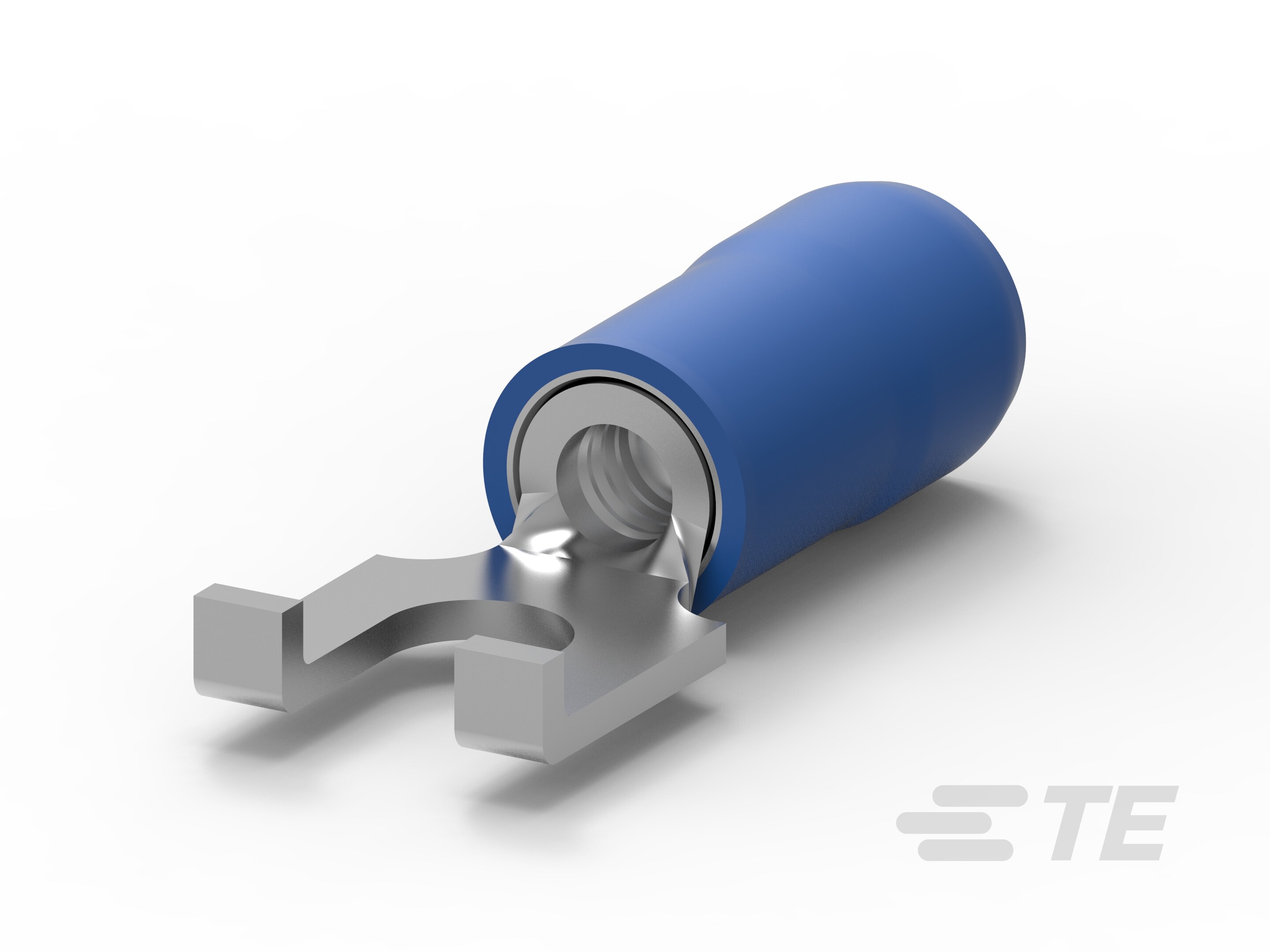

CONN SPADE TERM 14-16AWG #6 BLU
| Part | Insulation | Contact Material | Mounting Type | Stud/Tab Size | Color | Terminal Type | Contact Finish | Termination | Features | Length - Overall | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Width - Outer Edges | Insulation Diameter (Max) | Insulation Diameter (Min) | Length - Termination | Length - Ring Center to Termination | Tongue Inside Opening | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Insulated | Copper | Free Hanging (In-Line) | 6 Stud | Blue | Flanged | Tin | Crimp | Serrated Termination | 0.768 in | 16 AWG | 14 AWG | 0.294 in | 0.17 in | 0.115 in | 0.404 in | 0.203 in | 0.145 in | Nylon PA Polyamide |
