ALM07F9 Series

Catalog

CONN RCPT MALE 6POS GOLD CRIMP

Part	Material Flammability Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Contact Finish - Mating	Orientation	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Color	Fastening Type	Shell Finish	Number of Positions	Mounting Feature	Connector Type	Insert Material	Shell Material	Mounting Type	Primary Material	Current Rating	Shielding	Termination	Ingress Protection Description	Ingress Protection IP Rating
Amphenol Aerospace Operations ALM07F9-35P(072)	UL94 V-0	35	9	Gold	N (Normal)	Aviation	125 °C	-65 °C	Gray	Threaded	Gray Zinc Nickel	6	Bulkhead Front Side Nut	Male Pins Receptacle	Fluorinated Silicon Rubber	Composite	Panel Mount	Composite	5 A	Shielded	Crimp	Dust Tight Waterproof	IP67

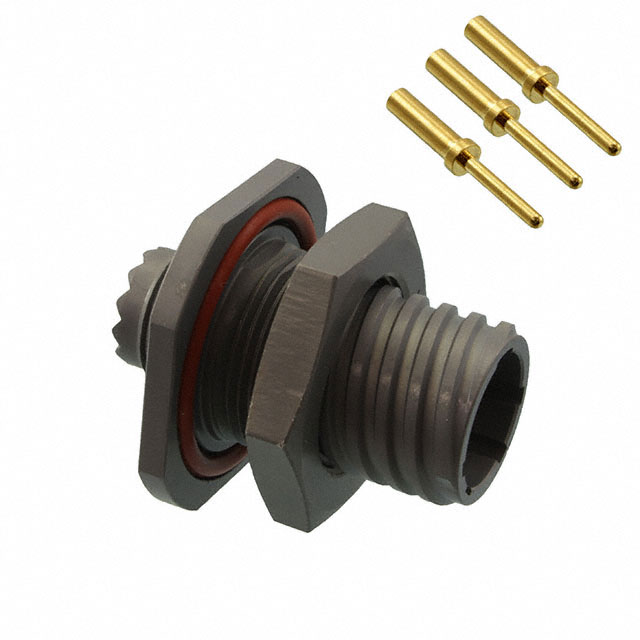

Amphenol Aerospace Operations ALM07F9-98P(072)	UL94 V-0	98	9	Gold	N (Normal)	Aviation	125 °C	-65 °C	Gray	Threaded	Gray Zinc Nickel	3	Bulkhead Front Side Nut	Male Pins Receptacle	Fluorinated Silicon Rubber	Composite	Panel Mount	Composite	7.5 A	Shielded	Crimp	Dust Tight Waterproof	IP67
Amphenol Aerospace Operations ALM07F9-35P	UL94 V-0	35	9	Gold	N (Normal)	Aviation	125 °C	-65 °C		Threaded	Electroless Nickel	6	Bulkhead Front Side Nut	Male Pins Receptacle	Fluorinated Silicon Rubber	Composite	Panel Mount	Composite	5 A	Shielded	Crimp	Dust Tight Waterproof	IP67
