KD11 Series

Catalog

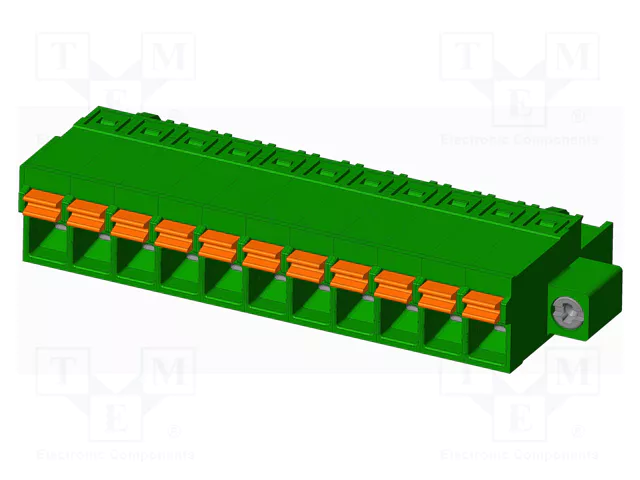

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 5.5A; 160V

Part	Mounting Type	Number of Levels	Type	Termination Style	Contact Mating Finish	Plug Wire Entry Angle	Voltage - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Positions Per Level	Pitch	Number of Positions	Features	Operating Temperature (Min)	Operating Temperature (Max)	Current - UL	Color	Wire Strip Length (Min)	Wire Strip Length (Max)	Material Flammability Rating	Housing Material	Contact Material	Insulation Height
McGill Microwave Systems KD1110510000G	Free Hanging (In-Line)	1	Female Sockets Plug	Push-In Spring Screwless - Leg Spring	Tin	180 °	160 V	24 AWG	16 AWG	11	0.138 in	11	Mating Flange	-40 °C	115 °C	5.5 A	Green	9 mm	10 mm	UL94 V-0	Thermoplastic	Phosphor Bronze	0.307 in
McGill Microwave Systems KD1130510000G	Free Hanging (In-Line)	1	Female Sockets Plug	Push-In Spring Screwless - Leg Spring	Tin	180 °	300 V	24 AWG	16 AWG	11	0.15 in	11	Mating Flange	-40 °C	115 °C	5.5 A	Green	9 mm	10 mm	UL94 V-0	Thermoplastic	Phosphor Bronze	0.307 in
McGill Microwave Systems KD1110520000G	Free Hanging (In-Line)	1	Female Sockets Plug	Push-In Spring Screwless - Leg Spring	Tin	180 °	160 V	24 AWG	16 AWG	11	0.138 in	11	Latch Lock	-40 °C	115 °C	5.5 A	Green	9 mm	10 mm	UL94 V-0	Thermoplastic	Phosphor Bronze	0.307 in
McGill Microwave Systems KD1150510000G	Free Hanging (In-Line)	1	Female Sockets Plug	Push-In Spring Screwless - Leg Spring	Tin	180 °	300 V	24 AWG	14 AWG	11	5.08 mm	11	Mating Flange Retention Latches (Wire Side)	-40 °C	115 °C	12 A	Green	11 mm	12 mm	UL94 V-0	Thermoplastic	Phosphor Bronze	0.429 in
