XQERED Series

Catalog

LED XLAMP XQE RED 623NM SMD

Part	Thermal Resistance of Package	Size / Dimension Length	Size / Dimension Width	Height - Seated (Max)	Voltage - Forward (Vf) (Typ)	Current - Max	Package Name	Viewing Angle	Temperature - Test	Mounting Type	Lumens/Watt	Package Diameter	Package / Case	Current - Test	Color	Luminous Flux (Maximum)	Luminous Flux	Luminous Flux (Minimum)	Wavelength (Nominal)	Wavelength (Maximum)	Wavelength (Minimum)	Wavelength

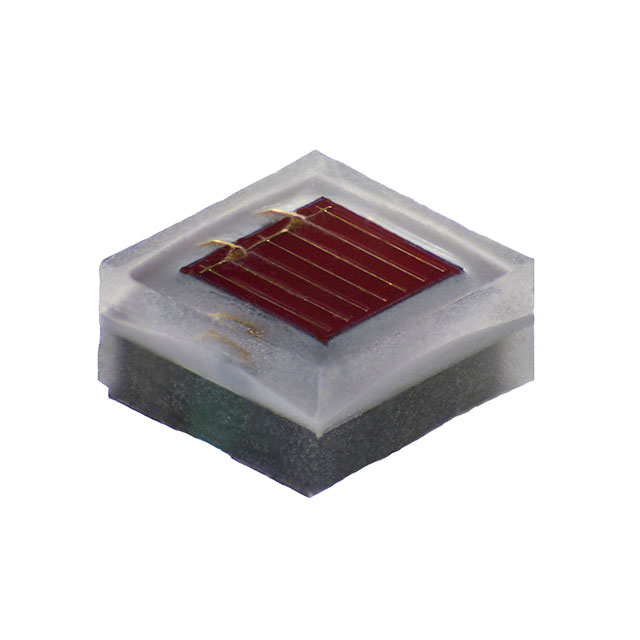

CreeLED, Inc. XQERED-H2-0000-000000502	5 °C/W	0.063 in	0.063 in	0.035 in	2.2 V	1 A	0606 SMD	125 °	25 °C	Surface Mount	77 lm/W	1616 mm	0606 (1616 Metric)	350 mA	Red	62 lm	59 lm	57 lm	623 nm	625 nm	620 nm	623 nm
CreeLED, Inc. XQERED-02-0000-000000601		0.063 in	0.063 in	0.068 in	2.2 V	1 A	0606 SMD	130 °	25 °C	Surface Mount	84 lm/W	1616 mm	0606 (1616 Metric)	350 mA	Red	67 lm	65 lm	62 lm	625 nm	630 nm	620 nm	625 nm

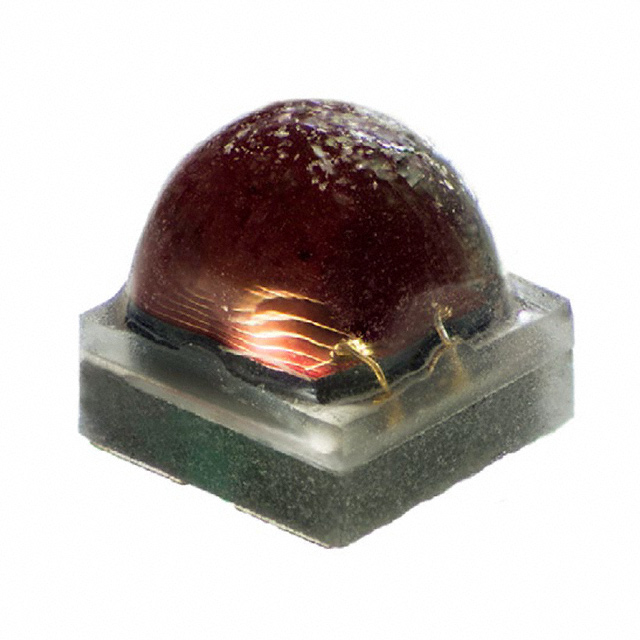

CreeLED, Inc. XQERED-00-0000-000000801	5 °C/W	0.063 in	0.063 in	0.068 in	2.2 V	1 A	0606 SMD	130 °	25 °C	Surface Mount	100 lm/W	1616 mm	0606 (1616 Metric)	350 mA	Red	81 lm	77 lm	74 lm	625 nm	630 nm	620 nm	625 nm
CreeLED, Inc. XQERED-H2-0000-000000301	5 °C/W	0.063 in	0.063 in	0.035 in	2.2 V	1 A	0606 SMD	125 °	25 °C	Surface Mount	64 lm/W	1616 mm	0606 (1616 Metric)	350 mA	Red	52 lm	49 lm	46 lm	625 nm	630 nm	620 nm	625 nm
CreeLED, Inc. XQERED-02-0000-000000502		0.063 in	0.063 in	0.068 in	2.2 V	1 A	0606 SMD	130 °	25 °C	Surface Mount	77 lm/W	1616 mm	0606 (1616 Metric)	350 mA	Red	62 lm	59 lm	57 lm	623 nm	625 nm	620 nm	623 nm
CreeLED, Inc. XQERED-H2-0000-000000401		0.063 in	0.063 in	0.035 in	2.2 V	1 A	0606 SMD	125 °	25 °C	Surface Mount	70 lm/W	1616 mm	0606 (1616 Metric)	350 mA	Red	57 lm	54 lm	52 lm	625 nm	630 nm	620 nm	625 nm
CreeLED, Inc. XQERED-H2-0000-000000302	5 °C/W	0.063 in	0.063 in	0.035 in	2.2 V	1 A	0606 SMD	125 °	25 °C	Surface Mount	64 lm/W	1616 mm	0606 (1616 Metric)	350 mA	Red	52 lm	49 lm	46 lm	623 nm	625 nm	620 nm	623 nm
CreeLED, Inc. XQERED-H0-0000-000000402	5 °C/W	0.063 in	0.063 in	0.035 in	2.2 V	1 A	0606 SMD	125 °	25 °C	Surface Mount	70 lm/W	1616 mm	0606 (1616 Metric)	350 mA	Red	57 lm	54 lm	52 lm	623 nm	625 nm	620 nm	623 nm
CreeLED, Inc. XQERED-02-0000-000000702		0.063 in	0.063 in	0.068 in	2.2 V	1 A	0606 SMD	130 °	25 °C	Surface Mount	92 lm/W	1616 mm	0606 (1616 Metric)	350 mA	Red	74 lm	71 lm	67 lm	623 nm	625 nm	620 nm	623 nm
