Q-0901W0 Series

Catalog

CBL ASSY BNC-NTYPE JCK-JCK 3.3'

Part	Features	Frequency - Max	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	1st Contact Gender	Length	Overall Impedance	2nd Connector	Cable Type	1st Connector	Color	Style	Length (ft)

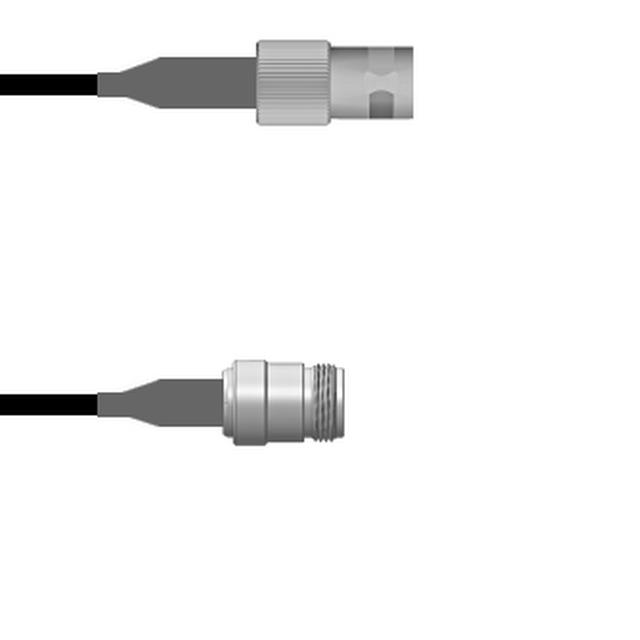

McGill Microwave Systems Q-0901W0008001M	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female	39.4 in	50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type
McGill Microwave Systems Q-0901W0008012i	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female	12 in	50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type
McGill Microwave Systems Q-0901W0008084i	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female	84 in	50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type	7 ft
McGill Microwave Systems Q-0901W0008003M	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female	118.1 in	50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type
McGill Microwave Systems Q-0901W0008036i	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female	36 in	50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type
McGill Microwave Systems Q-0901W0008002M	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female		50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type	6.6 ft
McGill Microwave Systems Q-0901W00082.5M	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female	98.4 in	50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type	8.2 ft
McGill Microwave Systems Q-0901W0008072i	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female	72 in	50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type
McGill Microwave Systems Q-0901W00081.5M	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female	59.1 in	50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type	4.9 ft
McGill Microwave Systems Q-0901W0008.25M	Shielded	4 GHz	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	Female	9.843 in	50 Ohms	N-Type Jack	58 RG	BNC Jack	Black	BNC N-Type
