ADG1436 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

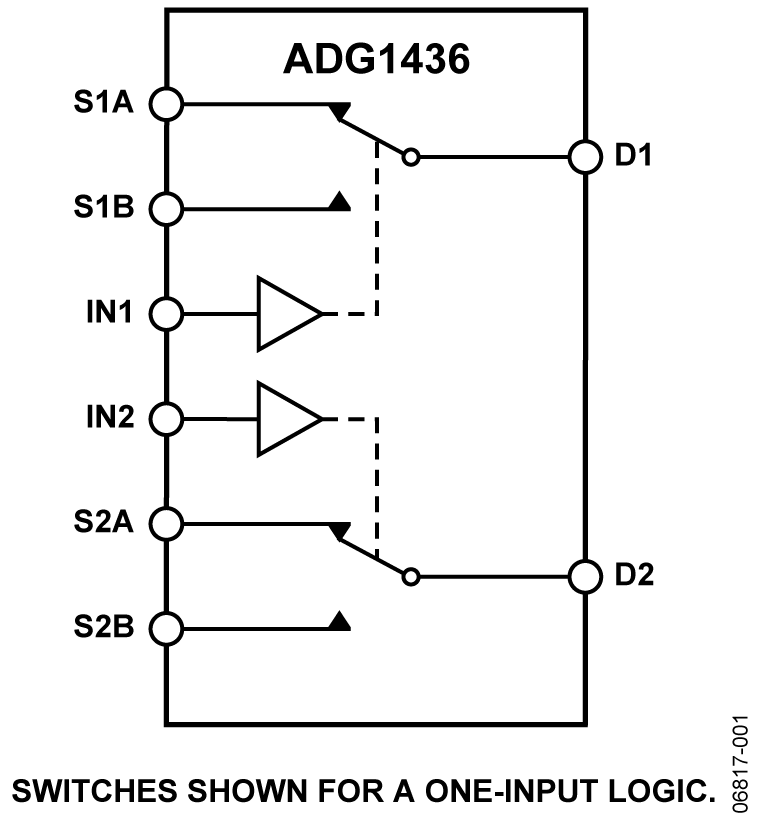

1.5 Ω ON RESISTANCE, ±15 V/12 V/±5 V,ICMOS®, DUAL SPDT SWITCH

Part	Channel-to-Channel Matching (ΔRon)	Current - Leakage (Max)	Package Length	Package Name	Package Width	Crosstalk	Operating Temperature (Max)	Operating Temperature (Min)	-3db Bandwidth	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Maximum)	Charge Injection	Switch Circuit Type	On-State Resistance (Max)	Multiplexer Inputs	Demultiplexer Outputs	Mounting Type	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	Number of Circuits	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Switch Time Toff (Max)	Switch Time Ton (Max)	Package / Case
Analog Devices Inc./Maxim Integrated ADG1436TRUZ-EP	100 mOhm	550 pA	0.173 in	16-TSSOP	4.4 mm	-80 dB	125 °C	-55 °C	110 MHz	-4.5 V	4.5 V	16.5 V	-20 pC	SPDT	1.8 Ohms	2	1	Surface Mount	50 pF	23 pF	2	16.5 V	5 V
Analog Devices Inc./Maxim Integrated ADG1436YRUZ-REEL7	100 mOhm	550 pA	0.173 in	16-TSSOP	4.4 mm	-80 dB	125 °C	-40 °C	110 MHz	-4.5 V	4.5 V	16.5 V	-20 pC	SPDT	1.8 Ohms	2	1	Surface Mount	50 pF	23 pF	2	16.5 V	5 V	130 ns	120 ns
Analog Devices Inc./Maxim Integrated ADG1436YCPZ-REEL7	100 mOhm	550 pA	4 mm	16-LFCSP-VQ	4 mm	-80 dB	125 °C	-40 °C	110 MHz	-4.5 V	4.5 V	16.5 V	-20 pC	SPDT	1.8 Ohms	2	1	Surface Mount	50 pF	23 pF	2	16.5 V	5 V	130 ns	120 ns	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG1436YCPZ-REEL	100 mOhm	550 pA	4 mm	16-LFCSP-VQ	4 mm	-80 dB	125 °C	-40 °C	110 MHz	-4.5 V	4.5 V	16.5 V	-20 pC	SPDT	1.8 Ohms	2	1	Surface Mount	50 pF	23 pF	2	16.5 V	5 V	130 ns	120 ns	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG1436TRUZ-EPR7	210 mOhm	550 pA	0.173 in	16-TSSOP	4.4 mm	-80 dB	125 °C	-55 °C	110 MHz	-4.5 V	4.5 V	16.5 V	-20 pC	SPDT	1.8 Ohms	2	1	Surface Mount	50 pF	23 pF	2	16.5 V	5 V
Analog Devices Inc./Maxim Integrated ADG1436YRUZ	100 mOhm	550 pA	0.173 in	16-TSSOP	4.4 mm	-80 dB	125 °C	-40 °C	110 MHz	-4.5 V	4.5 V	16.5 V	-20 pC	SPDT	1.8 Ohms	2	1	Surface Mount	50 pF	23 pF	2	16.5 V	5 V	130 ns	120 ns
