RTS6B Series

Catalog

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Insert Material	Backshell Material, Plating	Applications	Contact Material	Color	Mounting Type	Number of Positions	Current Rating	Shell Size - Insert Width	Shell Size - Insert Length	Material Flammability Rating	Shielding	Termination	Voltage Rating	Voltage Rating (Type)	Contact Finish - Mating	Features	Operating Temperature (Min)	Operating Temperature (Max)	Primary Material	Fastening Type	Connector Type	Shell Material	Orientation	Ingress Protection IP Rating	Ingress Protection Description	Contact Size	Contact Type	Housing Color	Note	Type	Contact Shape

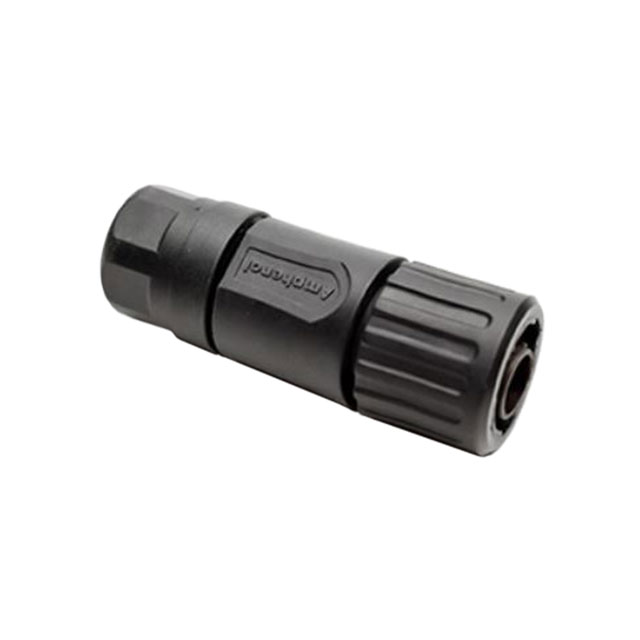

McGill Microwave Systems RTS6BS8N4P	Chloroprene Rubber CR	Thermoplastic	Automation Industrial Instrumentation Marine Telecom Transportation	Copper Alloy	Black	Free Hanging (In-Line)	4	7 A	4 mm	8 mm	UL94 V-0	Unshielded	Solder Cup	250 V	DC	Gold	Backshell Coupling Nut	-40 °C	105 °C	Plastic	Bayonet Lock	Male Pins Plug	Thermoplastic	N (Normal)	IP67 IP69K	Dust Tight Water Resistant Waterproof

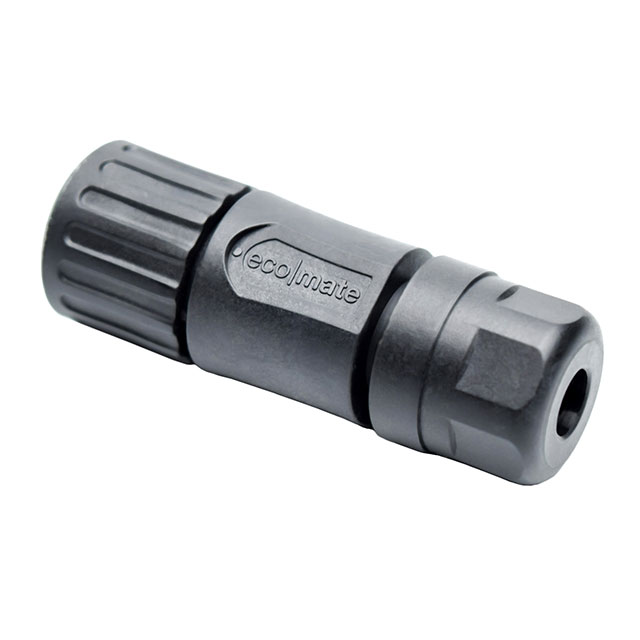

McGill Microwave Systems RTS6BS8N3S	Thermoplastic					Free Hanging (In-Line)	3		3 mm	8 mm	UL94 V-0	Unshielded					Backshell Coupling Nut	-40 °C	125 °C		Bayonet Lock	Plug Housing	Thermoplastic	N (Normal)	IP67 IP69K	Dust Tight Water Resistant Waterproof	20	Crimp	Black	Contacts Not Included	For Female Sockets	Circular
McGill Microwave Systems RTS6BS8N3P	Thermoplastic					Free Hanging (In-Line)	3		3 mm	8 mm	UL94 V-0	Unshielded					Backshell Coupling Nut	-40 °C	125 °C		Bayonet Lock	Plug Housing	Thermoplastic	N (Normal)	IP67 IP69K	Dust Tight Water Resistant Waterproof	20	Crimp	Black	Contacts Not Included	For Male Pins	Circular
