2422 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

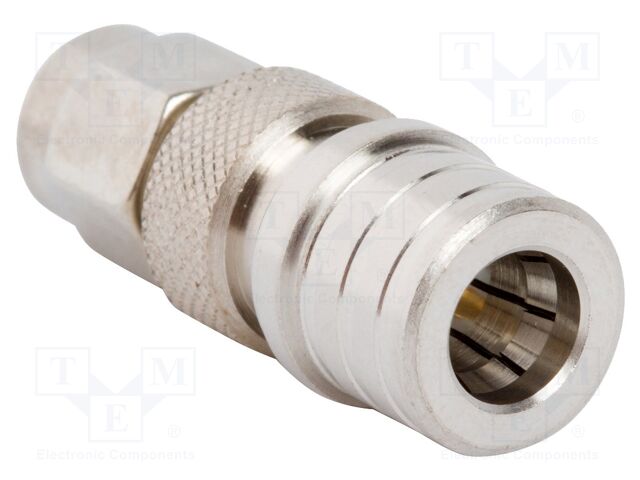

ADAPTER; QMA MALE,SMA MALE; INSULATION: PTFE; 50Ω; BRASS; 18GHZ
| Part | Style | Frequency - Max | Fastening Type | Impedance | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Mounting Type | Convert From (Adapter End) | Adapter Type | Adapter Series | Center Gender | Conversion Type | Center Contact Plating | Dielectric Material | Body Finish | Center Contact Material | Mating Cycles | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Features | Insertion Loss | Includes Total Count | Includes | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Straight | 18 GHz | Snap-On Threaded | 50 Ohm | SMA Plug | Male Pin | Free Hanging (In-Line) | Male Pin QMA Plug | Plug to Plug | SMA to QMA | Male | Between Series | Gold | Polytetrafluoroethylene (PTFE) | White Bronze | Brass | 100 cycles | Brass | -65 °C | 165 °C | |||||
 McGill Microwave Systems | Straight | 2 GHz | Snap-On Threaded | 50 Ohm | F Jack | Female Socket | Free Hanging (In-Line) | Female Socket SMB Plug | Plug to Jack | SMB to F | Female | Between Series | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Beryllium Copper | Brass | -65 °C | 165 °C | ||||||
 McGill Microwave Systems | Straight | 10 GHz | Snap-On Threaded | 50 Ohm | N Jack | Female Socket | Free Hanging (In-Line) | 1.0 2.3 Plug Male Pin | Plug to Jack | N to 1.0/2.3 | Female Male | Between Series | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Phosphor Bronze | Brass | -65 °C | 165 °C | ||||||
 McGill Microwave Systems | Straight | 3 GHz | Threaded | 50 Ohm | 4.1/9.5 Plug | Male Pin | Free Hanging (In-Line) | Female Socket N Jack | Plug to Jack | N to 4.1/9.5 | Female Male | Between Series | Silver | Polytetrafluoroethylene (PTFE) | Silver | Copper Alloy | 500 cycles | Brass | -40 °C | 85 °C | Low PIM | 0.1 dB | |||
 McGill Microwave Systems | Straight | 4 GHz | Bayonet Lock Snap-On | 50 Ohm | MCX Jack | Female Socket | Free Hanging (In-Line) | BNC Plug Male Pin | Plug to Jack | BNC to MCX | Female Male | Between Series | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Beryllium Copper | Brass | -65 °C | 165 °C | ||||||
 McGill Microwave Systems | Straight | 10 GHz | Snap-On Threaded | 50 Ohm | 1.0/2.3 Jack | Female Socket | Free Hanging (In-Line) | Female Socket N Jack | Jack to Jack | N to 1.0/2.3 | Female | Between Series | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Phosphor Bronze | Brass | -65 °C | 165 °C | ||||||
 McGill Microwave Systems | Straight | 6000 MHz | Snap-On | 50 Ohm | U.FL (UMCC) Jack | Male Pin | Free Hanging (In-Line) | Female Socket MMCX Jack | Jack to Jack | AMC MMCX to U.FL (UMCC) | Female Male | Between Series | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Beryllium Copper | 100 cycles | Brass | -65 °C | 165 °C | |||||
 McGill Microwave Systems | Straight | Snap-On Threaded | U.FL (UMCC) Jack | Male Pin | Panel Mount | Female Socket SMA Jack | Plug to Jack | AMC SMA to U.FL (UMCC) | Female Male | Between Series | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Beryllium Copper | Brass | 4 pcs | Connector Gasket Lockwasher Nut | Bulkhead | |||||||
 McGill Microwave Systems | Straight | 18 GHz | Snap-On Threaded | 50 Ohm | SMA Jack | Female Socket | Free Hanging (In-Line) | Female Socket QMA Jack | Jack to Jack | SMA to QMA | Female | Between Series | Gold | Polytetrafluoroethylene (PTFE) | White Bronze | Beryllium Copper | 100 cycles | Brass | -65 °C | 165 °C | |||||
 McGill Microwave Systems | Straight | 2 GHz | Snap-On Threaded | 75 Ohm | SMB Jack | Male Pin | Panel Mount | F Jack Female Socket | Jack to Jack | SMB to F | Female Male | Between Series | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Beryllium Copper | 100 cycles | Brass | -40 °C | 140 °C | Bulkhead |
