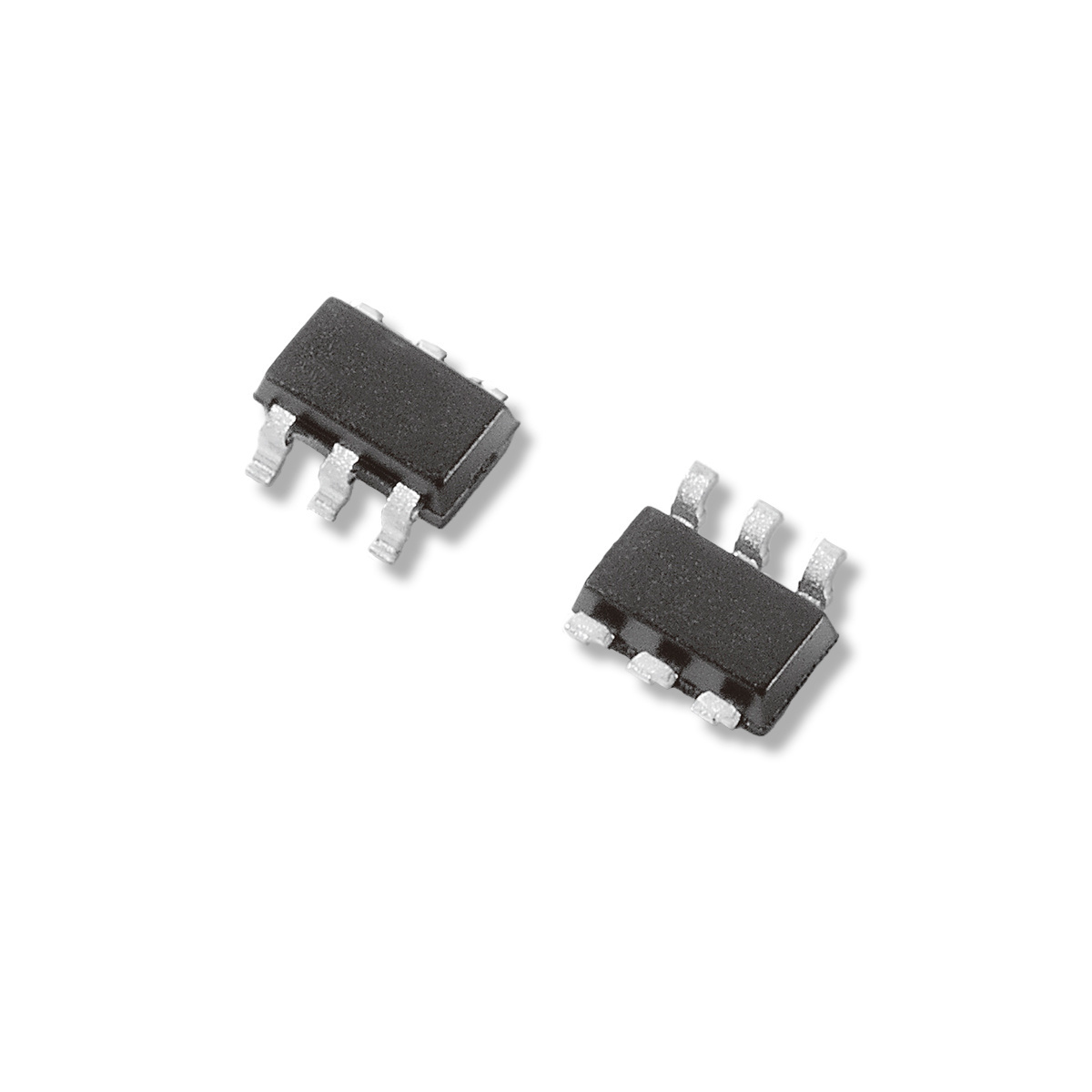

AQRV05-4HTG Series

5V 12A 30kV SOT23-6L Diode Array

Catalog

5V 12A 30kV SOT23-6L Diode Array

Part	Package / Case	Qualification	Unidirectional Channels	Voltage - Reverse Standoff (Max)	Voltage - Breakdown (Min)	Package Name	Power - Peak Pulse	Mounting Type	Capacitance	Current - Peak Pulse	Type	Grade	Applications	Power Line Protection	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Clamping (Max) (Typ)
LITTELFUSE AQRV05-4HTG	SOT-23-6	AEC-Q101	4	6 V	6 V	SOT-23-6	180 W	Surface Mount	1 pF	12 A	Steering (Rail to Rail)	Automotive	Ethernet USB	Yes	-40 °C	150 °C	15 V

Catalog

5V 12A 30kV SOT23-6L Diode Array

Description

The AQRV05-4HTG integrates low capacitance rail-to-rail diodes with an additional zener diode to protect each I/O pin against ESD and high surge events. This robust device can absorb maximum 12A surge current per IEC 61000-4-5 (tP=8/20μs) without performance degradation and a minimum ±30kV ESD per IEC 61000-4-2. Their very low loading capacitance also makes them ideal for protecting high speed signal pins.
