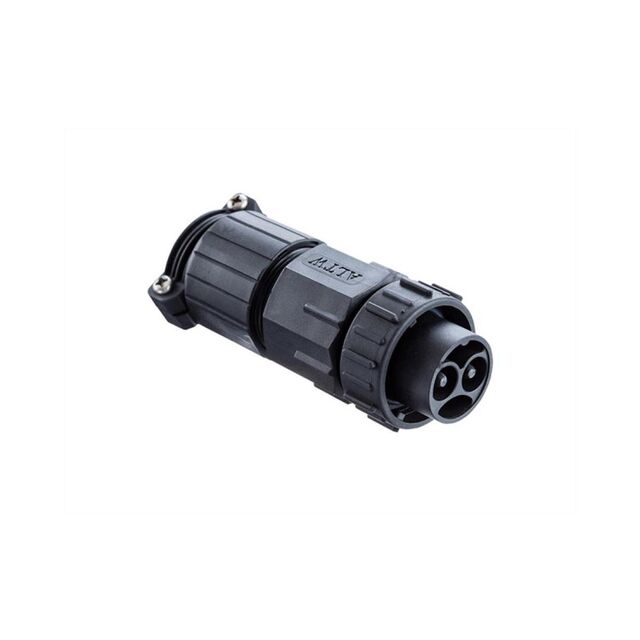

PWL-03BFMA Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
POWER, PWL, PLASTIC, 30A, 03 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, 3 POINTS LOCK, SOLDER, FIELD INSTALLABLE, 10.0- 19.
| Part | Primary Material | Number of Positions | Voltage Rating | Insert Material | Cable Opening (Max) | Cable Opening (Min) | Operating Temperature (Min) | Operating Temperature (Max) | Fastening Type | Contact Finish - Mating | Shell Material | Mounting Type | Features | Shielding | Orientation | Connector Type | Ingress Protection Description | Ingress Protection IP Rating | Contact Material | Termination | Current Rating | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Plastic | 3 | 300 VAC/DC | Polyphenylene Ether PPE | 0.748 in | 0.394 in | -40 °C | 105 °C | Bayonet Lock | Tin | Polyphenylene Ether (PPE) | Free Hanging (In-Line) | Cable Clamp Coupling Nut | Unshielded | Keyed | Male Pins Plug | Dust Tight Waterproof | IP67 | Copper Alloy | Solder Cup | 30 A | Black |
 McGill Microwave Systems | Plastic | 3 | 0.748 in | 0.394 in | Male Pins Receptacle | Waterproof | IPX7 | 30 A |
