SP14 Series

Catalog

CONTACT PIN 14-16AWG SZ16 CRIMP

Part	Contact Material	Contact Finish Thickness	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Type	Features	Contact Termination	Contact Size	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Type	Contact Finish	Contact Finish Thickness (string set options)	Contact Finish Thickness	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG	Termination Finish
McGill Microwave Systems SP14M1G30	Copper Alloy	30 µin	16 AWG	14 AWG	Signal Stamped	Insulation Support	Crimp	16 S	2 mm²	2.5 mm²	Pin	Gold
McGill Microwave Systems SP14M1G5	Copper Alloy	5 µin	16 AWG	14 AWG	Signal Stamped	Insulation Support	Crimp	16 S	2 mm²	2.5 mm²	Pin	Gold
McGill Microwave Systems SP14M1G10	Copper Alloy	10 Ąin	16 AWG	14 AWG	Signal Stamped	Insulation Support	Crimp	16 S	2 mm²	2.5 mm²	Pin	Gold

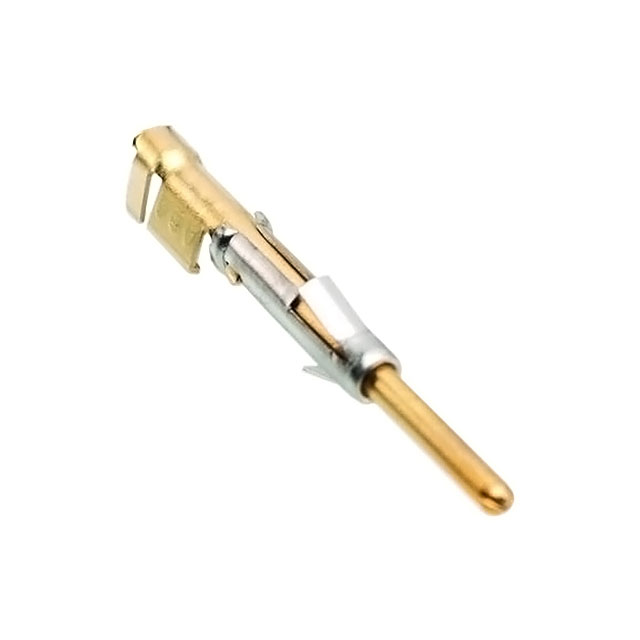

McGill Microwave Systems SP14M1F	Copper Alloy	0			Signal Stamped	Insulation Support	Crimp	16 S	2 mm²	2.5 mm²	Pin	Gold	Flash	Flash	14 AWG	14 AWG	Copper Alloy
McGill Microwave Systems SP14M2G30	Copper Alloy	30 µin	16 AWG	14 AWG	Signal Stamped	Insulation Support	Crimp	16 S	2 mm²	2.5 mm²	Pin	Gold
McGill Microwave Systems SP14M2F	Copper Alloy	0	16 AWG	14 AWG	Signal Stamped	Insulation Support	Crimp	16 S	2 mm²	2.5 mm²	Pin	Gold	Flash	Flash
McGill Microwave Systems SP14M2T	Copper Alloy		16 AWG	14 AWG	Signal Stamped	Insulation Support	Crimp	16 S	2 mm²	2.5 mm²	Pin	Tin
McGill Microwave Systems SP14M2N	Copper Alloy		16 AWG	14 AWG	Signal Stamped	Insulation Support	Crimp	16 S	2 mm²	2.5 mm²	Pin	Nickel
McGill Microwave Systems SP14M1N	Copper Alloy		16 AWG	14 AWG	Signal Stamped	Insulation Support	Crimp	16 S	2 mm²	2.5 mm²	Pin	Nickel
