AHDP Series

Catalog

STANDARD CIRCULAR CONNECTOR 8 POSITION PANEL MOUNT RECEPTACLE, PIN, SHELL SIZE 18, NORMAL DIAMETER SEAL (GREEN), BACKSHELL RING ADAPTER

Part	Connector Type	Shielding	Primary Material	Contact Type	Number of Positions	Housing Color	Shell Material	Contact Size	Type	Mounting Type	Shell Size - Insert Width	Shell Size - Insert Length	Mounting Feature	Orientation	Ingress Protection IP Rating	Ingress Protection Description	Features	Fastening Type	Material	Thread Size (Class)	Thread Size (Nominal)	Thread Pitch (TPI)	Diameter - Outside	Shell Size - Insert	Shell Size - Insert	Color	Cable Opening (Min)	Cable Opening (Max)	Cable Exit Angle	Includes	Includes Total Count	For Use With/Related Products	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG	Contact Material	Contact Finish	Contact Termination
McGill Microwave Systems AHDP02-18-08PN-BRA	Receptacle Housing	Unshielded	Plastic	Crimp	8	Black	Thermoplastic	12	For Male Pins	Panel Mount	8 mm	18 mm	Flange	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Backshell	Bayonet Lock
McGill Microwave Systems AHDP02-24-23PN-BRA	Receptacle Housing	Unshielded	Plastic	Crimp	23	Black	Thermoplastic	16 S	For Male Pins	Panel Mount	23 mm	24 mm	Flange	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Backshell	Bayonet Lock
McGill Microwave Systems AHDP02-24-14PR-BRA	Receptacle Housing	Unshielded	Plastic	Crimp	14	Black	Thermoplastic	4 12 16	For Male Pins	Panel Mount	14 mm	24 mm	Flange	Keyed	IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell	Bayonet Lock
McGill Microwave Systems AHDP06-24-18SR-BRA	Plug Housing	Unshielded	Plastic	Crimp	18	Black	Thermoplastic	8 12 16	For Female Sockets	Free Hanging (In-Line)	18 mm	24 mm		Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	Bayonet Lock
McGill Microwave Systems AHDPBS-18-002		Unshielded							Backshell						IP67	Dust Tight Waterproof	Strain Relief		Thermoplastic	UN	1.4375 in	12 TPI	1.551 in	18	18	Black	0.571 in	0.709 in	180 °	Backshell Compression Nut	2 pcs	AHDP Series Connector with WTA Modification
McGill Microwave Systems AHDP02-18-20SN-BRA	Receptacle Housing	Unshielded	Plastic	Crimp	20	Black	Thermoplastic	16 20	For Female Sockets	Panel Mount			Flange	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Backshell	Bayonet Lock															18	20
McGill Microwave Systems AHDP06-24-16SR-BRA	Plug Housing	Unshielded	Plastic	Crimp	16	Black	Thermoplastic	12	For Female Sockets	Free Hanging (In-Line)	16 mm	24 mm		Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	Bayonet Lock
McGill Microwave Systems AHDP02-24-09PR-BRA	Receptacle Housing	Unshielded	Plastic	Crimp	9	Black	Thermoplastic	4 8 12	For Male Pins	Panel Mount	9 mm	24 mm	Flange	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Backshell	Bayonet Lock
McGill Microwave Systems AHDP04-18-06PN-BRA	Receptacle Housing	Unshielded	Plastic	Crimp	6	Black	Thermoplastic	4 16	For Male Pins	Panel Mount	6 mm	18 mm	Bulkhead Front Side Nut	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Backshell	Bayonet Lock

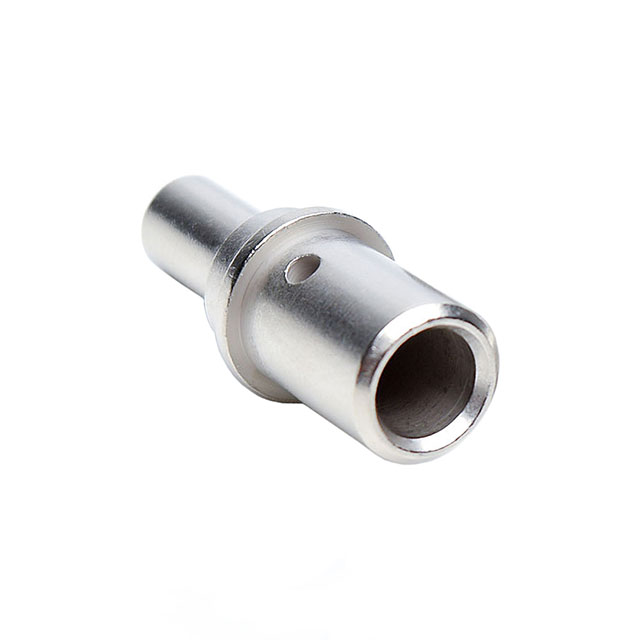

McGill Microwave Systems AT60-204-0490				Pin				4	Machined																										6 AWG	6 AWG	Copper Alloy	Nickel	Crimp
